5.6.6 Saving Text File of the Temperature / Time Diagram
Via the menu File and Save Temp/Time diagram data the data of diagram can be saved in a text file
(*.dat) for further analysis.
5.6.7 Location and Filename Templates of Triggered Recordings
In the Tools, Configuration and Trig. Recording / Snapshots menu you can define a Prefix for
filename. The software is using this prefix if saving a sequence or snapshot.

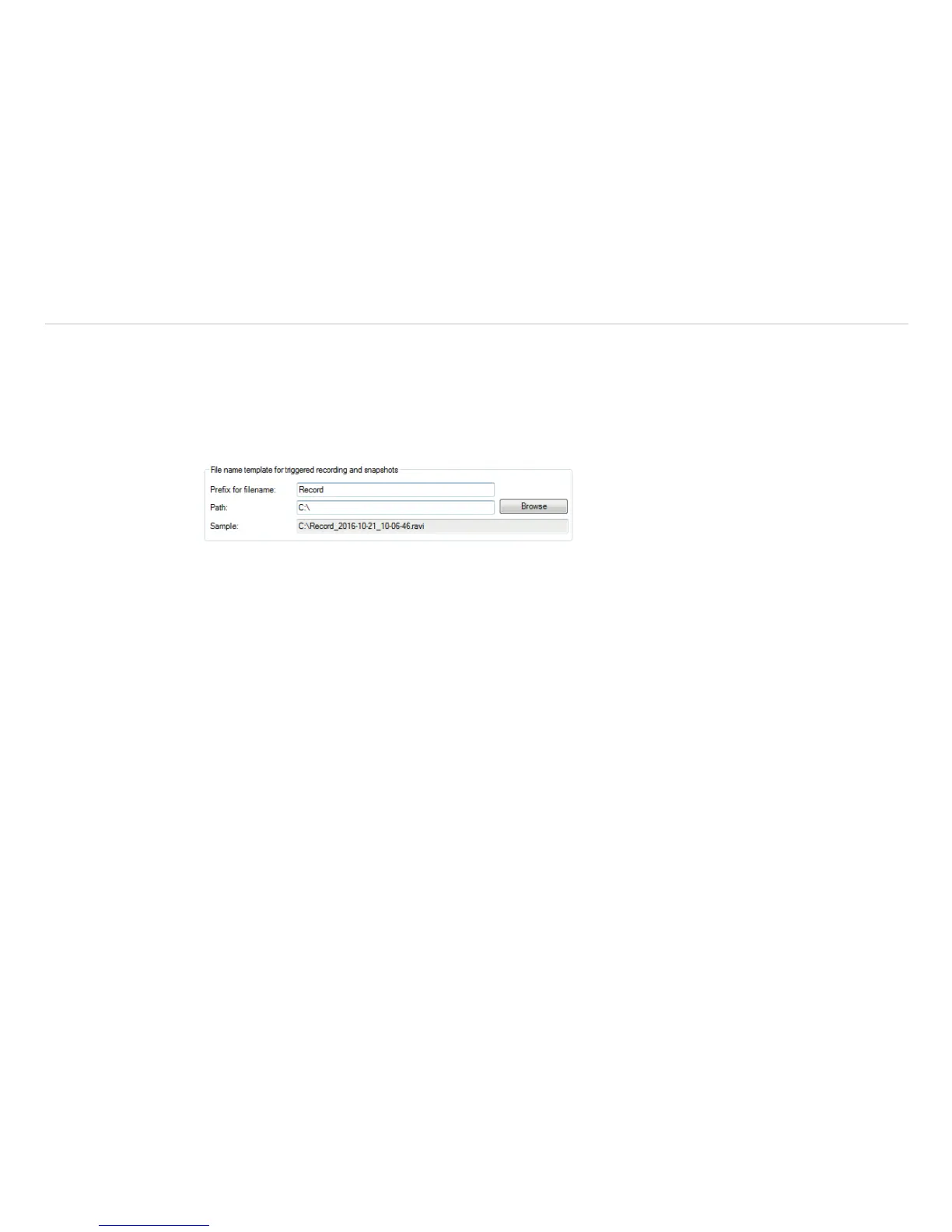

Fig. 64 View File name template for triggered recording and snapshots
The Path defines the storage location of all files and can be changed here. Once recorded the file is saved
under name including prefix, current date and time stamp.
i
Using the option Create link in “reopen file“ list for triggered video sequences
and snapshots the files can easily be reopened via the menu File and Reopen.
The data capturing includes all information like measure areas and temperature displays of the main
window if the option Save layout together with triggered video sequences and snap-
shots is tagged.
