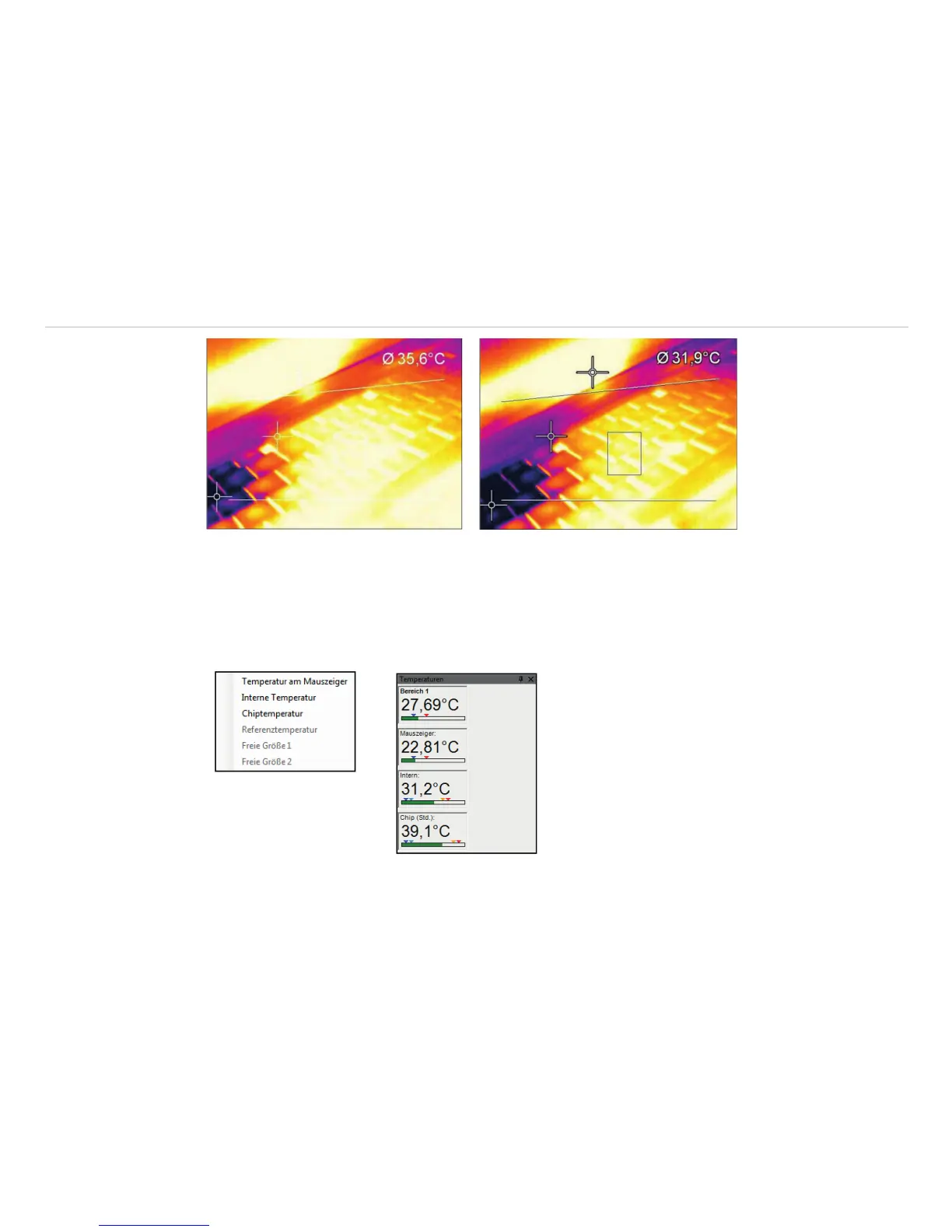

Fig. 24 Display of thermal image without and with contrast colors
4.2.4 Temperatures in Digital Displays
The menu option View and Digital display group temperatures allows the user to define which temperature
control displays will be shown in the application window Temperatures, see Chap. 4.2.1. The shown pre-
defined values can also be displayed in the temperature time diagram, see Chap. 6.3. Furthermore, the alarm
configuration can be based on these temperatures, see Chap. 6.8.
Fig. 25 Temperatures in Digital Displays
