2-10

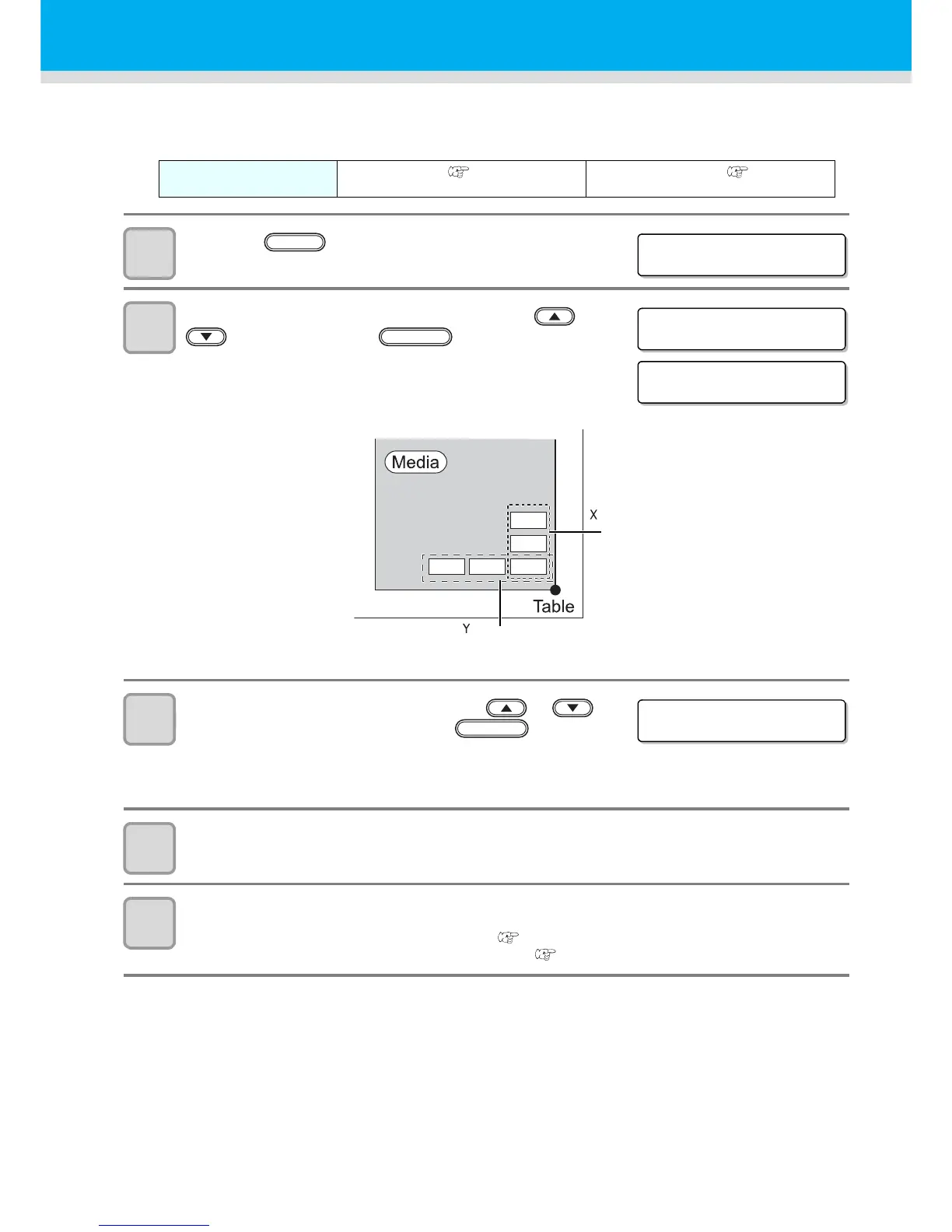

Test drawing
Make test drawing in the specified direction to check whether there is nozzle clogging or other drawing failures
(such as wearing or missing). As the distance between head tables is 100mm, use the attached vacuum table.
1
Press the key in the local mode.
2
Select the drawing direction by pressing the or
key, and press the key.
• When nozzle recovery is not set, test drawing is started in the
selected direction.
• SCAN DIR: Draws in the scan (widthwise) direction of the media.
• FEED DIR: Draws in the feed (longwise) direction of the media.
3
When nozzle recovery is set, press the or key
to set ON/ OFF and then press the key.
• For UJF-3042HG, this is available in F/W Ver.3.30 and later.
• ON: Draws with nozzle recovery ON.
OFF: Draws with nozzle recover OFF.
4
Test drawing ends.
• Y-bar evacuates from the table, and then the mode returns to the local.
5
Check result of drawing.
• When the result is normal, finish the operation. ( P.2-13)
• When the result is abnormal, execute head cleaning. ( P.2-12)
Check before starting
test drawing
• Is media set? ( P.2-4) • Is origin point set? ( P.3-2)
To Next Page
