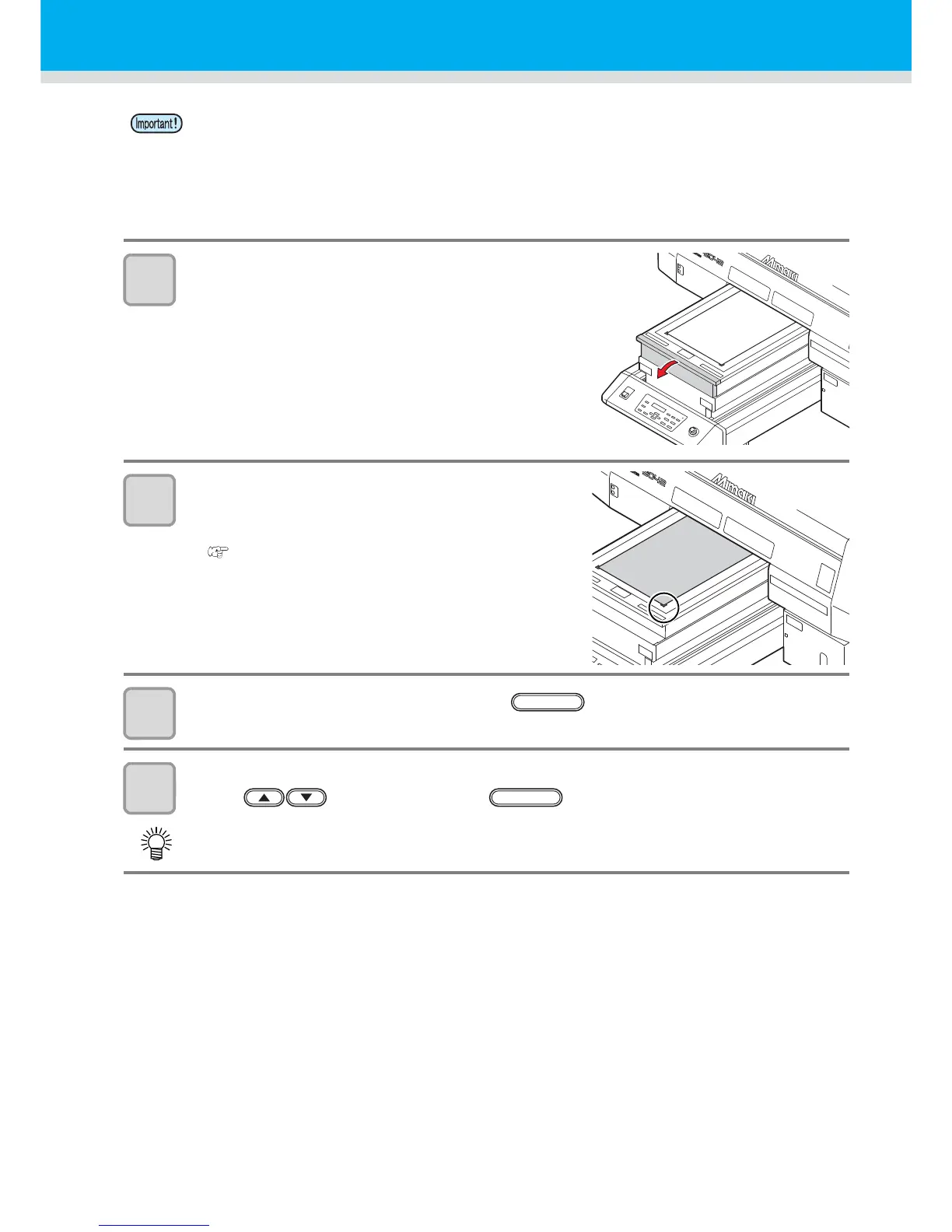

Setting the media
1
Open the table front cover.
2
Set media along the L-shaped mark (drawing
origin) on the right corner of the table.
• To change the drawing origin, see the following page.
( P.3-2 "Changing origin")
• To use tools, set into the shaves (8.0 mm-deep) on the corners
of the table.
3
Close the table front cover, and press the key.
• The origin is detected. Please wait until the operation is finished.
4
Adjust the table to an appropriate height for drawing by pressing the
TABLE keys, and press the key.
• When the media thickness is 100mm and less, media inflation is required so that the media thickness
may be 100mm.
• When the media thickness is 100mm and more, it is necessary to align it with the drawing height with
the table up/ down key.
• The peripheral parts of the media could roll up due to heat. Fix the media supplementarily using
adhesive tapes, etc.
• Adjust the height of the table with the media to 150 mm or less.
