3-7
Setting the Head Height
3
Useful Function

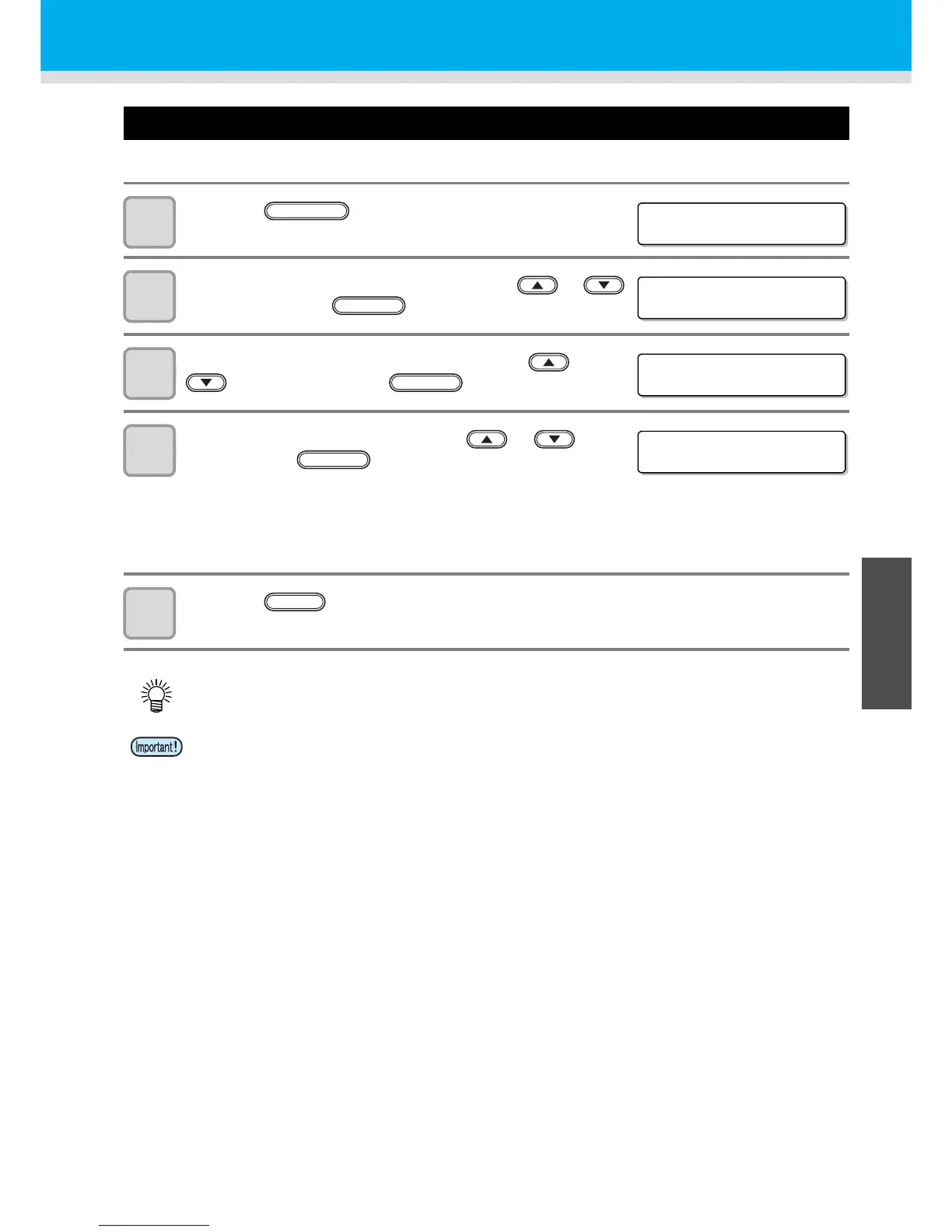

Setting the table height
If the table height is changed, Media Thickness is also changed.
1
Press the key in the local mode.
2
Select the [HEAD HEIGHT] by pressing the or
key, and press the key.
3
Select the [TABLE HEIGHT] by pressing the or
keys, and press the key.
4
Set the table height by pressing the or keys,
and press the key.
• When you use the vacuum table and the table spacer, set the height
including the thickness of the vacuum table and the table spacer.
• Set value： 0.0 to 50.0mm (When there is no table spacer)
50.0 to 100.0mm (When the table spacer is the one for 50mm)
100.0 to 150.0mm (When the table spacer is the one for 100mm)
5
Press the key several times to end the setting.
• When you set the media thickness of 100mm, it is necessary to attach the vacuum table and the table
spacer so that the media thickness may become 100mm.
• Adjust [MEDIA THICNESS] or [TABLE HEIGHT] based on the head gap value so that [HEAD GAP] +
[MEDIA THICNESS] + [TABLE HEIGHT] = 151.5mm.
If adjustment cannot be performed, an operation error is displayed.
