7-6 Display & Cine Review
Cine review operations are the same as those of 2D mode.
7.2.4 Linked Cine Review
The linked cine review refers to review of the images captured at the same moment.
z Dual live mode(B+C)
z B+M
z PW+B duplex mode
z PW+C+B triplex mode

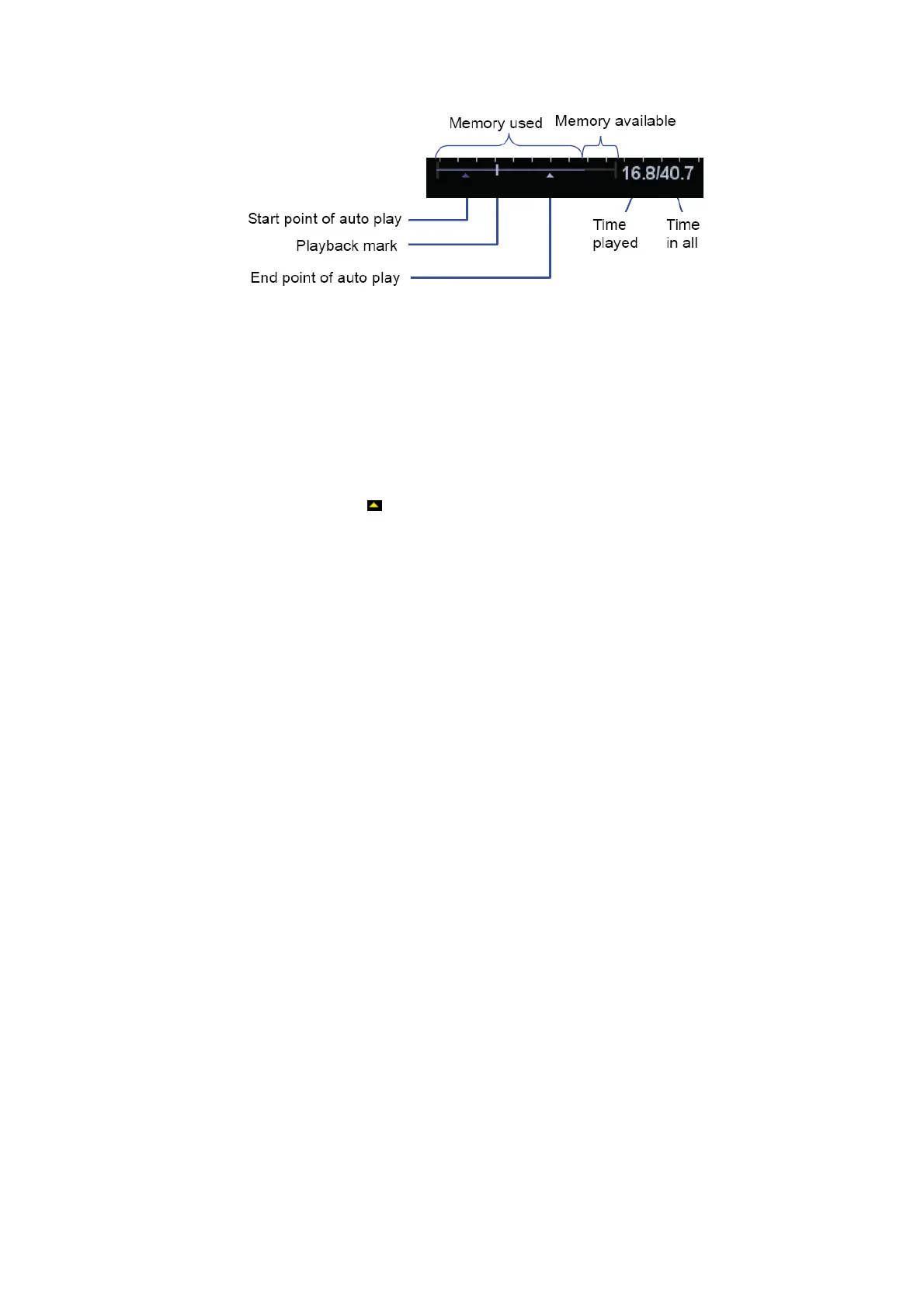

There displays the frame mark
on the time mark of M/PW image indicating the current
2D image. In statuses other than duplex or triplex mode, you can only review images of
the currently active window, use the <Update> to switch the window (if it is in Dual-split or
Quad-split window, use <Dual> or <Quad> key).
1. Click [Cine Compare] to be "On" to enter the windows of different frames.
2. Roll the trackball or rotate the multifunctional knob to review the images; switch the
window by pressing <Update>.
3. Click [Cine Compare] again to exit cine compare or press <Freeze> to exit cine review
state.
Tips: cine compare can only be performed on single-format 2D images only.
7.3 Image Compare
7.3.1 Cine Compare
1. Select the image files to be compared: click two or more than two image files of the same
exam or exams of the same patient.
2. Click [Compare] to enter into image compare mode.
3. Review the images of different image windows (cine replaying can’t be performed for
single-frame image file), press <Update> key to switch the active image window, and
roll the trackball to review the images.
z If two image files are to be compared, the screen displays in dual-split mode
when come into image compare.
z If more than two image files are to be compared, the screen displays in quad-split
mode when come into image compare.
z For image compare of more than 4 image files, you can first select an image
window, and double click a thumbnail, then the image will be displayed in the
selected image window.
z Switch to single, dual, or quad mode by pressing <B>, <Dual> key, or <Quad>.
4. Adjust the image parameters or do other operations (like image zoom in/zoom out,
comment) if necessary.
5. Save the image.
