8-2 ECG
8.1 ECG Operation Basic Procedures
1. Connect the ECG device.
Set ECG parameters if necessary. For details, please refer to “8.2 ECG Setting”.
z Turn off the power supply of the system, and connect the ECG cable to the port in
the system (For connection, please refer to “2.9 Physiological-signal Panel”)
z Turn on the power supply of the system

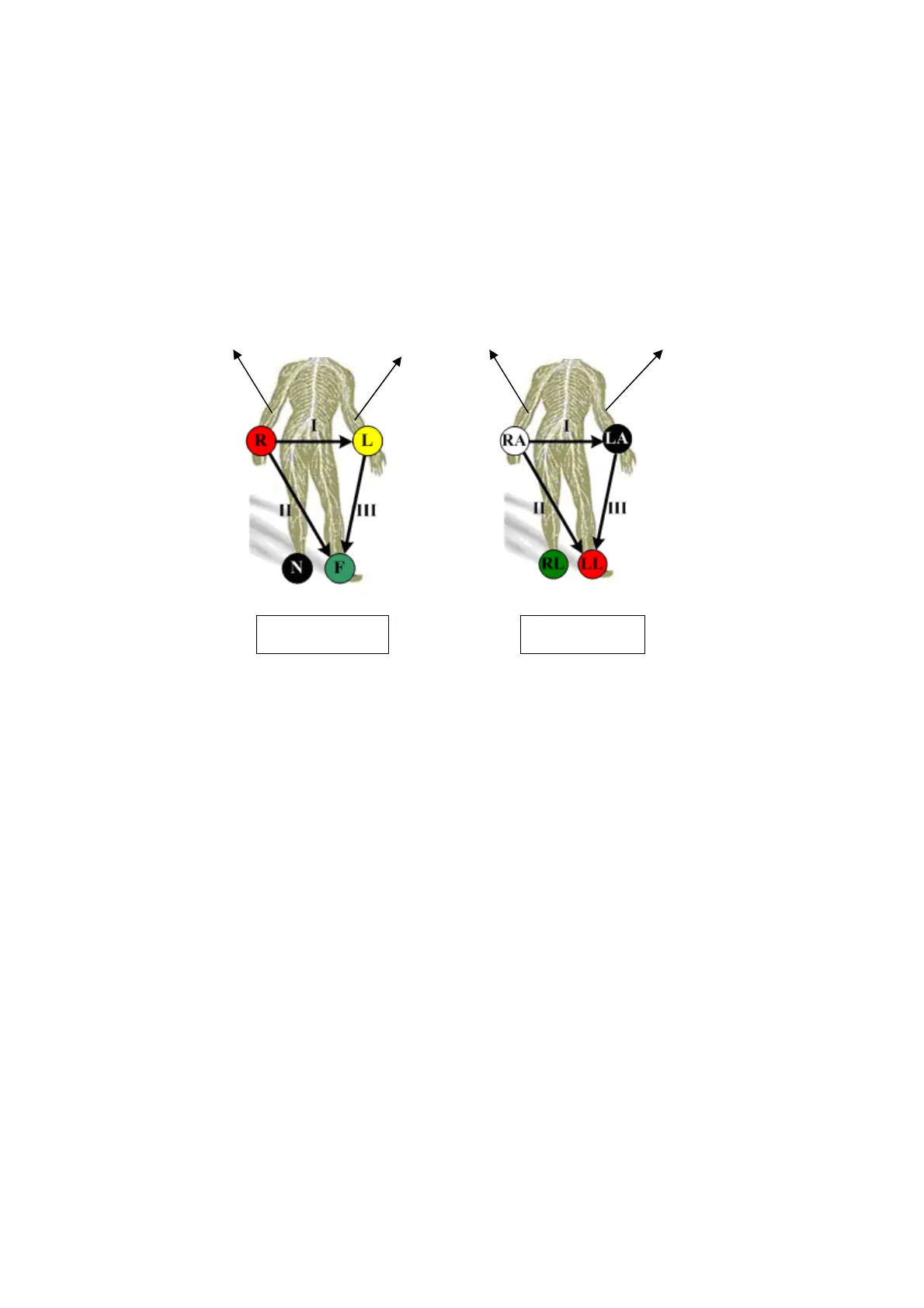

z Place the ECG electrodes on the patient’s body (as shown in the following figure)
2. Enter physio operation status:
z Press ECG user-defined key (set in “[Setup] → [System Preset] →[Key Config]”).
z Move the cursor to the menu; navigate the cursor onto [Physio] and press <Set>
or the multifunctional knob.
3. Select [ECG] to be “On”, and the heart-shaped symbol appears on the upper right part
of the screen.
4. Switch the imaging modes and display formats, and adjust relevant parameters to
optimize the image.
5. Parameter adjustment:
On the Physio page, you can adjust [Speed], [ECG Gain], [ECG Pos].
6. Freeze the images and review them. For details, please refer to “8.4 ECG Review”
7. Exit ECG mode, and remove ECG electrodes from the patient.
In ECG mode, set [ECG] to be “Off”, the ECG waveform disappears and the system
exits ECG mode.
8.2 ECG Setting
Parameter preset
Enter “[Setup] → [Image Preset] →Physio” to preset the ECG mode parameters.
IEC standard AHA standard
Red
Yellow
Green Black
Black
Green Red
White
Left
Right
Left
Right
