13-28 Probes and Biopsy

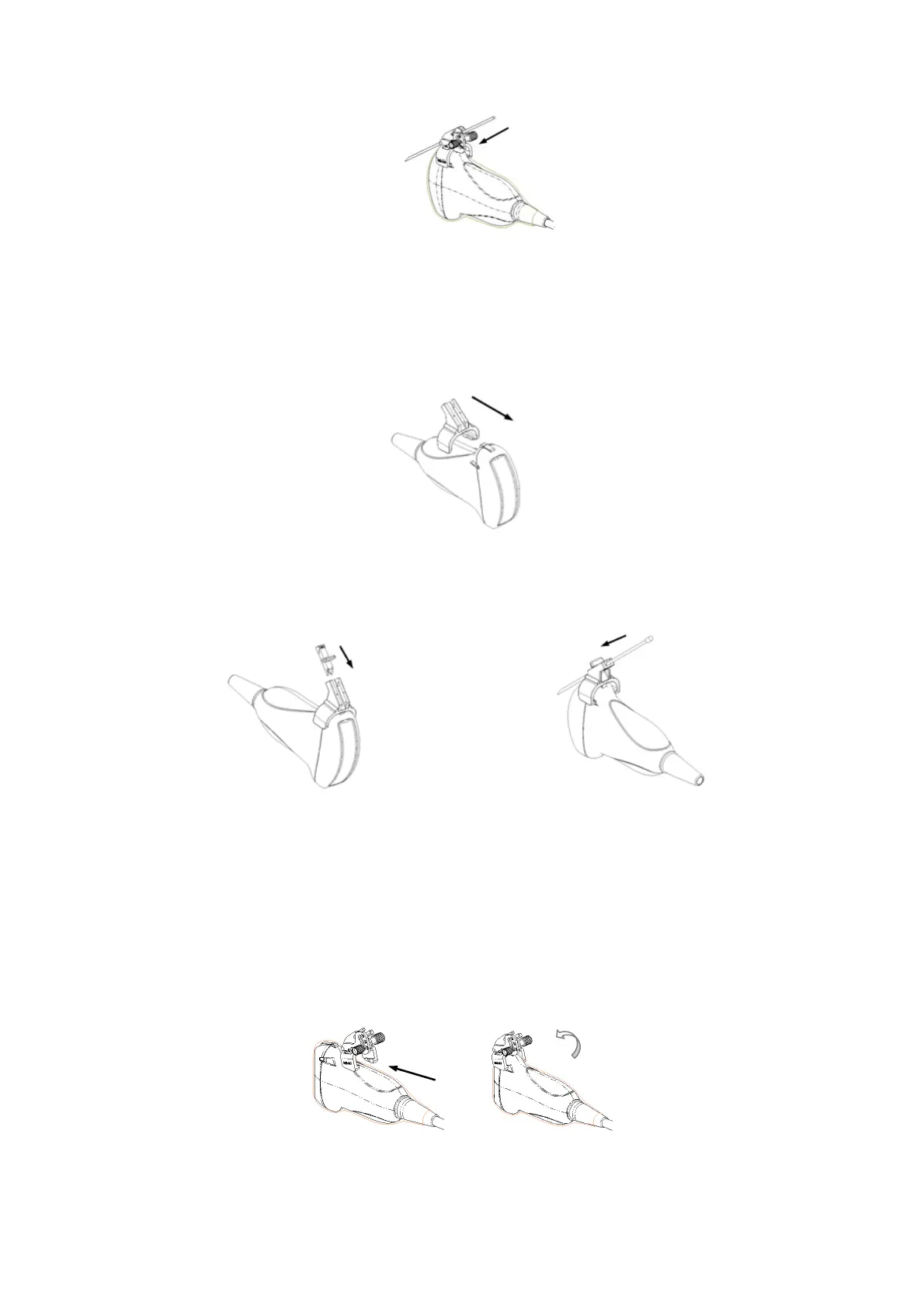

Plastic needle-guided bracket:
(1) Put on the sterile probe sheath.
(2) Hold the probe by one hand, select proper needle-guided bracket, and hold it with
the other hand. Align the narrow end tab of the needle-guided bracket with the
groove of the probe, then push the needle-guided bracket forward, making the
tabs and the grooves of the needle-guided bracket to match with the grooves and
tabs of the probe.
(3) Check manually to confirm that the needle-guided bracket is securely installed on
the probe.
(4) Select a proper guiding block and push it into the groove above the angle block,
and clamp it tightly.
(5) Insert a biopsy needle with the same specification as that of the guiding block into
the hole of the guiding block.
îš„ NGB-007
z Metal needle-guided bracket
a) Put on the sterile probe sheath.
b) Select a proper needle-guided bracket, and match the groove and tab with
the tab and groove of the probe respectively. Mount the bracket onto the
probe.
c) Screw the pinch nut of the needle-guided bracket to confirm that the
needle-guided bracket is properly installed on the probe.
