2. Turn the grip knob at the tail of the needle-guided bracket tightly.

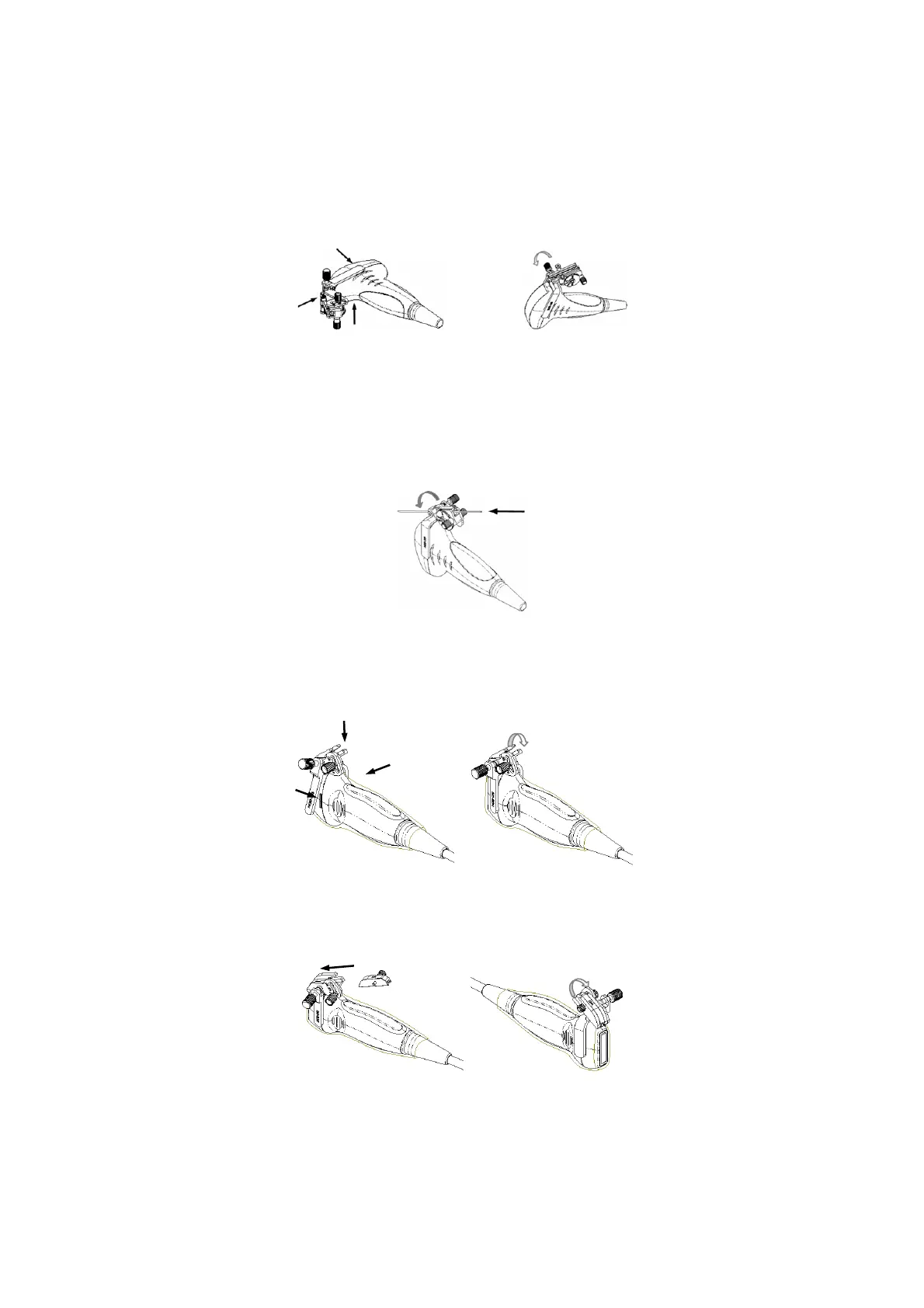

îš„ NGB-015
1. Put on the sterile transducer sheath.
2. Hold the transducer by one hand, select the proper needle-guided bracket, and hold it
with the other hand. Match the groove of the bracket with the tab of the transducer.
Amount the bracket onto the transducer.
3. Screw the pinch nut of the needle-guided bracket to confirm that the needle-guided
bracket is properly installed on the transducer.
4. Adjust the dial scale to the required needle type shift, and then screw the needle fixing
nut to lock the dial scale. (To adjust the dial scale you have to loose the needle fixing
nut first.)
5. Pull the lock pin and close the V-shaped cover to fix the lock pin in the groove of the
needle type adjusting base, so as to install the needle into the guiding hole.
îš„ NGB-016
1. Put on the probe sheath.
2. Select a proper needle-guided bracket, and match the groove with the tab of the
probe. Mount the bracket onto the probe.
3. Screw the pinch nut of the needle-guided bracket to confirm that the needle-guided
bracket is properly installed on the probe.
4. Select the appropriate guiding block, and fit it into the groove on the angle block.
5. Screw the nut on the guiding block to secure the guiding block with the needle-guided
bracket.
6. Insert the needle of the same specification with that of the guiding block into the
guiding hole.
