18. Interface specifications
MiR600 User Guide (en) 08/2021 - v.1.0 ©Copyright 2021: Mobile Industrial Robots A/S. 225
Pin number Signal name Max. current Description
12 24V 1A at 24 V Protected output
13 I2 PNP Input 2
14 24V 1A at 24 V Protected output
15 I3 PNP Input 3
16 24V 1A at 24 V Protected output
17 Unassigned Unassigned
Ethernet

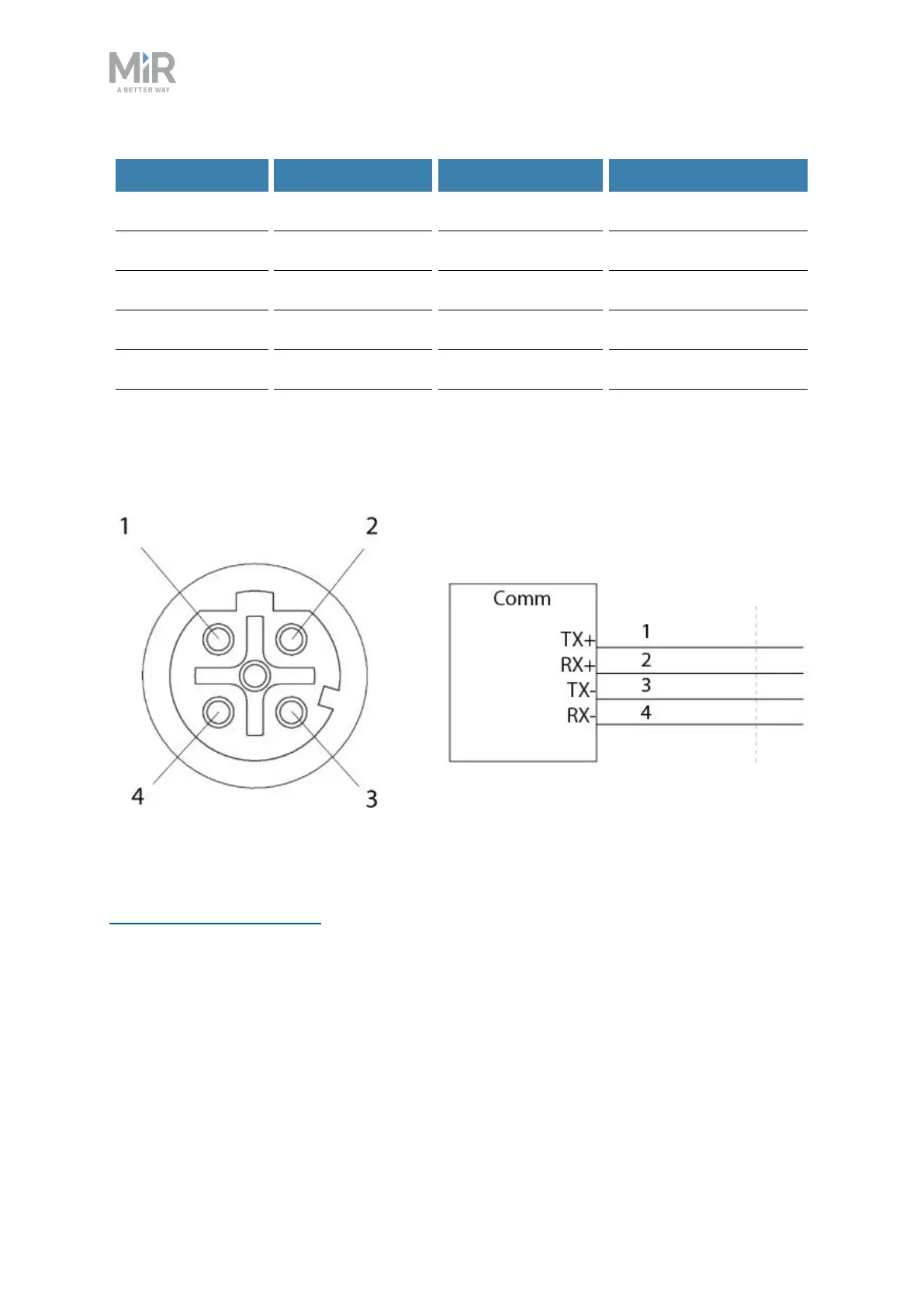

Figure 18.5. Ethernet connection. Pin numbers (left) and wiring diagram (right).
The communication interface is 10/100 Mbit Ethernet using a M12 connectorsee
Connector list on page230.
The Ethernet connection supports power over Ethernet.
Various protocols are supported, such as Modbus. For more information on how to use
Modbus, ask your distributor for the guide How to use Modbus with MiRrobots.
