Mitsubishi F700 Series User Manual

323
Initial value change list
4
PARAMETERS
4
PARAMETERS

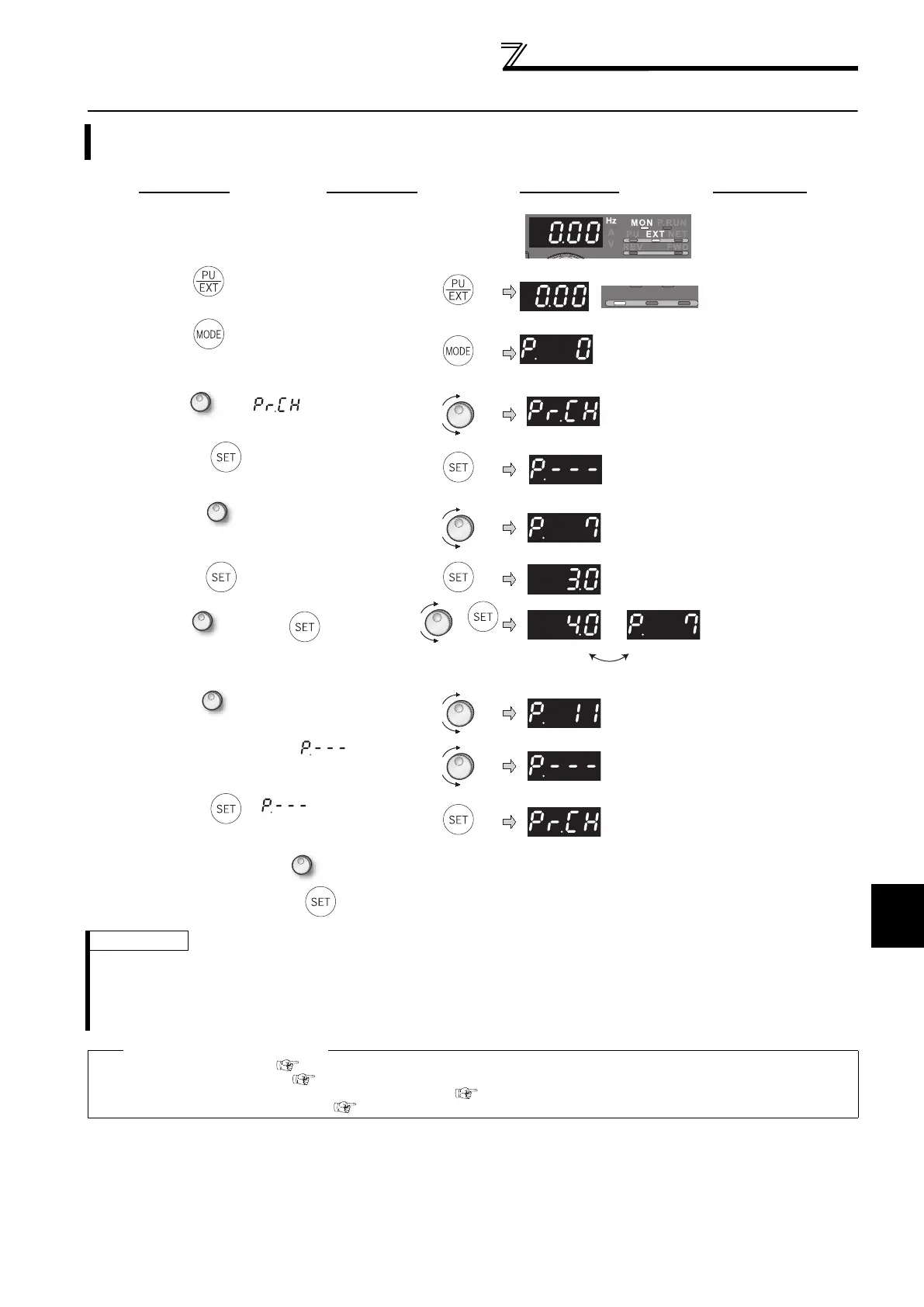

4.28 Initial value change list
Displays and sets the parameters changed from the initial value.
Operation Display
1. Screen at powering ON
The monitor display appears.
2.Press to choose the PU operation mode.
PU indication is lit.
3.Press to choose the parameter setting
mode.
PRM indication is lit.
(The parameter number read previously appears.)
4.Turn until appears.
5.Pressing changes to the initial value
change list screen.
6.Turning displays the parameter number
changed.
Press to read the currently set value.
Turn and press to change the
setting
(refer to step 6 and 7 on page 55)
Flicker ··· Frequency setting complete!!
Turn to read another parameter.
The display returns to after all
parameters are displayed.
7.Pressing in status returns to
the parameter setting mode.
 Turning sets other parameters.
 Pressing displays the change list again.
REMARKS
 Calibration parameters (C0 (Pr. 900) to C7 (Pr. 905), C42 (Pr. 934) to C45 (Pr. 935)) are not displayed even they are changed from
the initial settings.
 Only simple mode parameter is displayed when simple mode is set (Pr. 160 = 9999 (initial value))
 Only user group is displayed when user group is set (Pr. 160 = "1").
 Pr. 160 is displayed independently of whether the setting value is changed or not.
Parameters referred to 
Pr. 160 User group read selection Refer to page 185
C0 (Pr. 900) CA terminal calibration
Refer to page 144
C2 (Pr. 902) to C7 (Pr. 905) (Frequency setting bias/gain parameter)
Refer to page 172
C42 (Pr. 934) to C45 (Pr. 935) (PID control)
Refer to page 256
PU EXT NET

Mitsubishi F700 Series Specifications

General

Humidity	95% RH or less (non-condensing)
Control Method	V/F control
Protection Features	Overcurrent, overvoltage, undervoltage, overheat, short circuit
Communication Options	RS-485
Operating Temperature	-10°C to +50°C
Storage Temperature	-20°C to +65°C
Altitude	Up to 1000m above sea level
Overload Capacity	150% for 60 seconds
Cooling Method	Forced air cooling
Power Range	0.75 to 630 kW (1 to 845 hp)
Output Voltage	3-phase 200 to 240 VAC, 380 to 500 VAC (matching input voltage)
