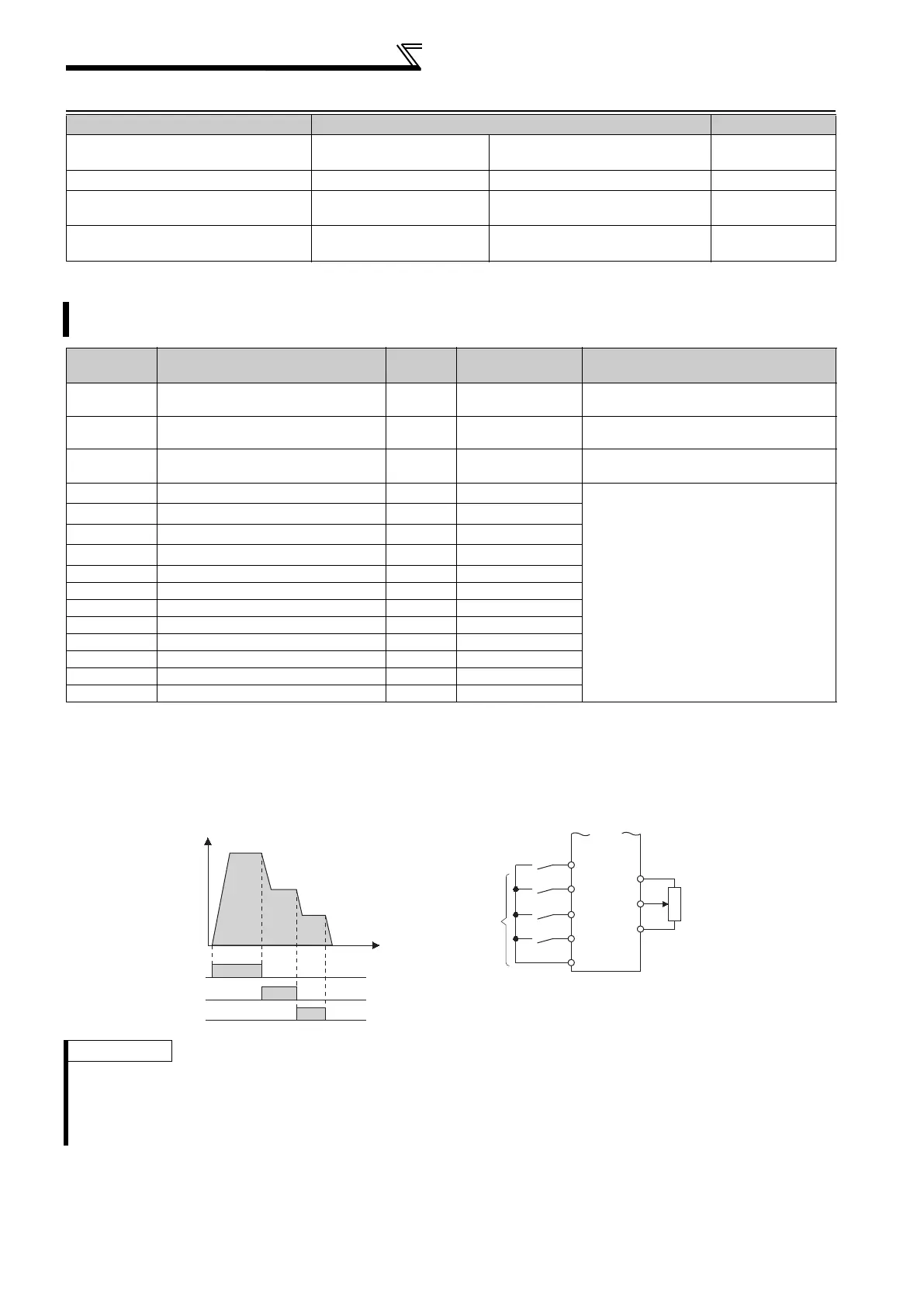

Frequency setting by external terminals
4.6 Frequency setting by external terminals
4.6.1 Multi-speed setting operation (Pr. 4 to Pr. 6, Pr. 24 to Pr. 27, Pr. 232 to Pr. 239)
The above parameters allow its setting to be changed during operation in any operation mode even if "0" (initial value) is set in Pr. 77 Parameter write selection.
* The above parameters can be set when Pr. 160 User group read selection = "0". (Refer to page 185)
(1) Multi-speed setting (Pr. 4 to Pr. 6)
 Operation is performed at the frequency set in Pr. 4 when the RH signal turns ON, Pr. 5 when the RM signal turns
ON, and Pr. 6 when the RL signal turns ON.
Purpose Parameter that must be Set Refer to Page
Make frequency setting by
combination of terminals
Multi-speed operation
Pr. 4 to Pr. 6, Pr. 24 to Pr. 27,
Pr. 232 to Pr. 239
86
Perform Jog operation Jog operation Pr. 15, Pr. 16 88
Added compensation for multi-speed
setting and remote setting
Multi-speed input
compensation selection
Pr. 28 90
Infinitely variable speed setting by
terminals
Remote setting function Pr. 59 91
Can be used to change the preset speed in the parameter with the contact terminals.
Any speed can be selected by merely turning ON-OFF the contact signals (RH, RM, RL, REX signals).
Parameter
Number
Name
Initial
Value
Setting Range Description
4 Multi-speed setting (high speed) 50Hz 0 to 400Hz
Set the frequency which is applied when
RH turns ON.
5 Multi-speed setting (middle speed) 30Hz 0 to 400Hz
Set the frequency which is applied when
RM turns ON.
6 Multi-speed setting (low speed) 10Hz 0 to 400Hz
Set the frequency which is applied when
RL turns ON.
24
*
Multi-speed setting (speed 4) 9999 0 to 400Hz, 9999
Frequency from speed 4 to speed 15 can
be set according to the combination of
the RH, RM, RL and REX signals.
9999: not selected
25
*
Multi-speed setting (speed 5) 9999 0 to 400Hz, 9999
26
*
Multi-speed setting (speed 6) 9999 0 to 400Hz, 9999
27
*
Multi-speed setting (speed 7) 9999 0 to 400Hz, 9999
232
* Multi-speed setting (speed 8) 9999 0 to 400Hz, 9999
233
* Multi-speed setting (speed 9) 9999 0 to 400Hz, 9999
234
* Multi-speed setting (speed 10) 9999 0 to 400Hz, 9999
235
* Multi-speed setting (speed 11) 9999 0 to 400Hz, 9999
236
* Multi-speed setting (speed 12) 9999 0 to 400Hz, 9999
237
* Multi-speed setting (speed 13) 9999 0 to 400Hz, 9999
238
* Multi-speed setting (speed 14) 9999 0 to 400Hz, 9999
239
* Multi-speed setting (speed 15) 9999 0 to 400Hz, 9999
REMARKS
 In the initial setting, if two or three speeds are simultaneously selected, priority is given to the set frequency of the lower signal.
For example, when the RH and RM signals turn ON, the RM signal (Pr. 5) has a higher priority.
 The RH, RM, RL signals are assigned to the terminal RH, RM, RL in the initial setting.
By setting "0 (RL)", "1 (RM)", "2 (RH)" in any of Pr.178 to Pr.189 (input terminal function assignment), you can assign the signals to
other terminals.
ON
ON
ON
Output frequency (Hz)
Speed 1
(High speed)
Speed 2
(Middle speed)
Speed 3
(Low speed)
RH
Time
RM
RL
10
2
5
Inverter
RL
RM
RH
STF
Multi-speed selection
Frequency setting potentiometer
Forward
rotation
PC
