Appendix 3-1 SERIAL number check
Refer to page 2 for the location of the rating plate.
Appendix 3 Specification change

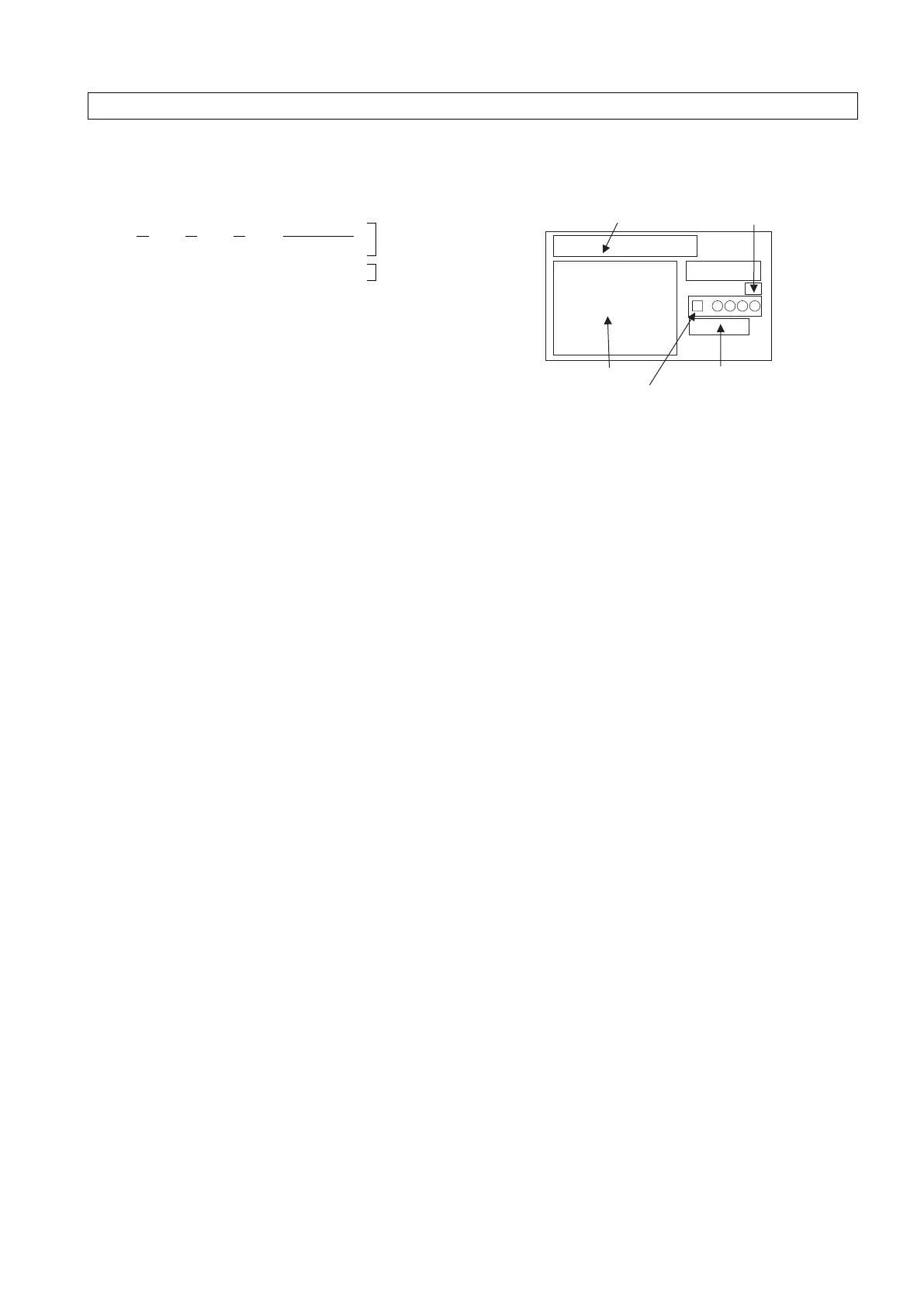

Rating plate example

  
SERIAL (Serial No.)
Symbol Year Month Control number
TCAG TC number
The SERIAL consists of 1 version symbol, 2 numeric characters or 1 numeric character and 1
alphabet letter indicating year and month, and 6 numeric characters indicating control number.
Last digit of the production year is indicated as the Year, and the Month is indicated by 1 to 9, X
(October), Y (November), and Z (December).
Bar code
Input rating
7
Identification Symbol
Inverter Model
SERIAL (Serial No.)
The SERIAL (Serial No.) indicated on the label of the
product package consists of six digits including the first
three digits of the control number and a symbol.
Label on the product package

Mitsubishi F700 Series Specifications

General

Humidity	95% RH or less (non-condensing)
Control Method	V/F control
Protection Features	Overcurrent, overvoltage, undervoltage, overheat, short circuit
Communication Options	RS-485
Operating Temperature	-10°C to +50°C
Storage Temperature	-20°C to +65°C
Altitude	Up to 1000m above sea level
Overload Capacity	150% for 60 seconds
Cooling Method	Forced air cooling
Power Range	0.75 to 630 kW (1 to 845 hp)
Output Voltage	3-phase 200 to 240 VAC, 380 to 500 VAC (matching input voltage)
