Mitsubishi F700 Series User Manual

5
Method of removal and reinstallation of the
front cover
1
OUTLINE

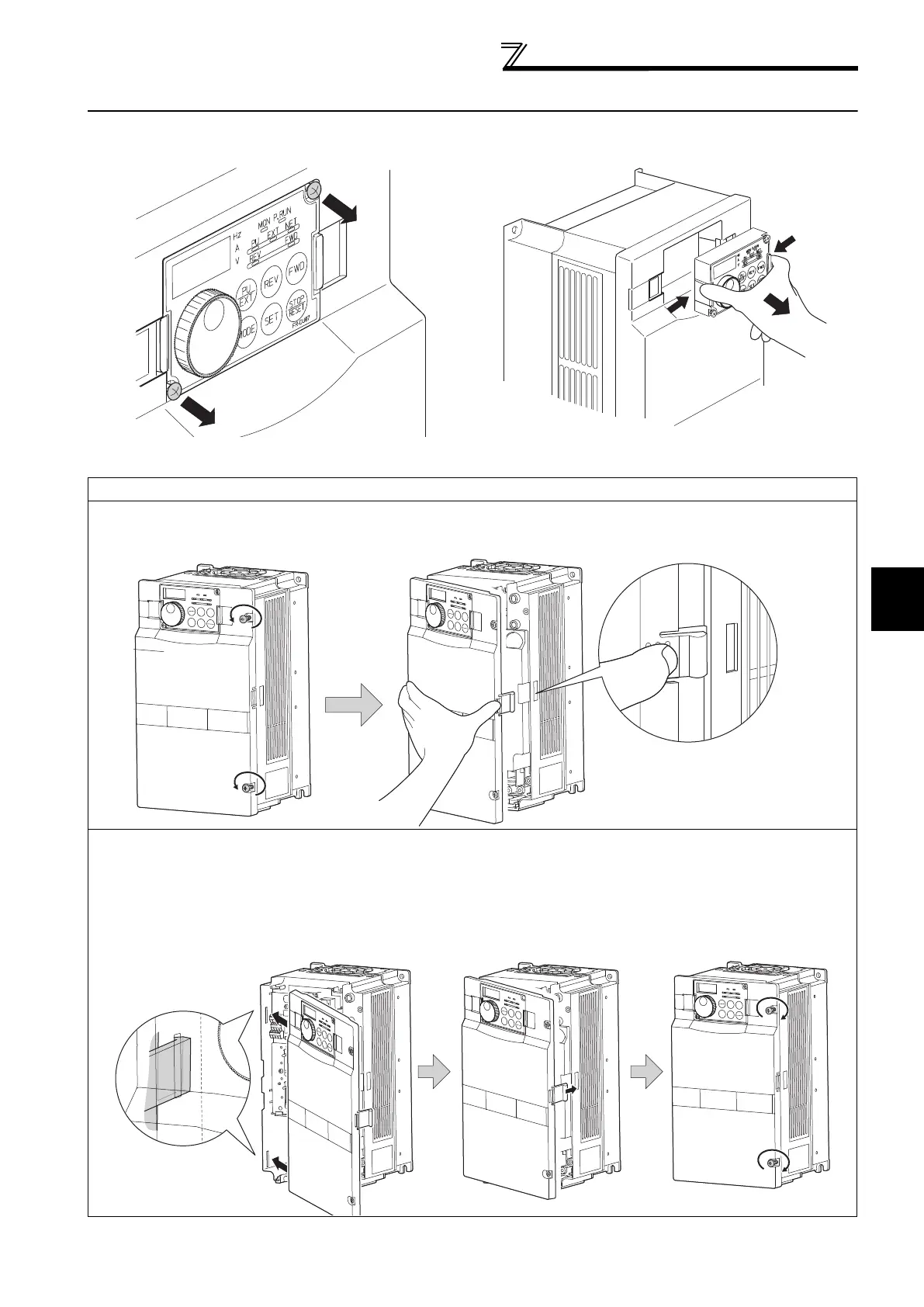

1.3 Method of removal and reinstallation of the front cover
Removal of the operation panel
1) Loosen the two screws on the operation panel.
(These screws cannot be removed.)
2) Push the left and right hooks of the operation panel
and pull the operation panel toward you to remove.
When reinstalling the operation panel, insert it straight to reinstall securely and tighten the fixed screws of the
operation panel.
FR-F740-00620-EC or less

Removal
Reinstallation
Installation hook
Front cover
Front cover
1) Loosen the installation screws of the
front cover.
2) Pull the front cover toward you to remove by pushing an
installation hook using left fixed hooks as supports.
Front cover
Front cover
Front cover
1) Insert the two fixed hooks on the left side of
the front cover into the sockets of the
inverter.
2) Using the fixed hooks as supports,
securely press the front cover
against the inverter.
(Although installation can be done
with the operation panel mounted,
make sure that a connector is
securely fixed.)
3) Tighten the installation
screws and fix the front
cover.

Mitsubishi F700 Series Specifications

General

Humidity	95% RH or less (non-condensing)
Control Method	V/F control
Protection Features	Overcurrent, overvoltage, undervoltage, overheat, short circuit
Communication Options	RS-485
Operating Temperature	-10°C to +50°C
Storage Temperature	-20°C to +65°C
Altitude	Up to 1000m above sea level
Overload Capacity	150% for 60 seconds
Cooling Method	Forced air cooling
Power Range	0.75 to 630 kW (1 to 845 hp)
Output Voltage	3-phase 200 to 240 VAC, 380 to 500 VAC (matching input voltage)
