Product checking and parts identification
1.1 Product checking and parts identification
Unpack the inverter and check the capacity plate on the front cover and the rating plate on the inverter side face to
ensure that the product agrees with your order and the inverter is intact.

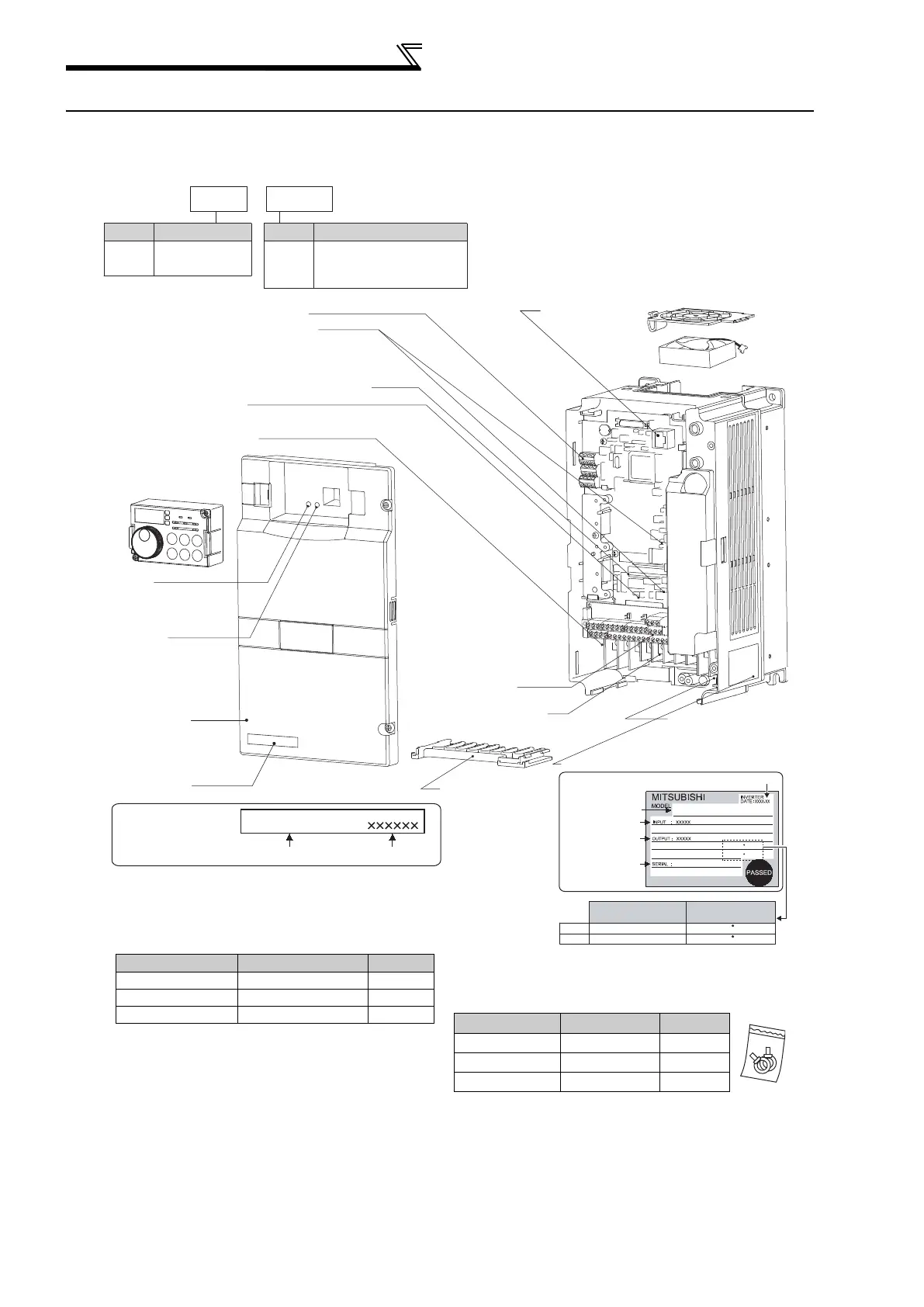

Operation panel (FR-DU07)
Front cover
EMC filter ON/OFF connector
Control circuit
terminal block
AU/PTC switchover switch
Main circuit terminal block
Charge lamp
Lit when power is
supplied to the main
circuit
Power lamp
Lit when the control circuit
(R1/L11, S1/L21) is supplied
with power.
Cooling fan
PU connector
RS-485 terminals
Alarm lamp
Lit when the inverter is
in the alarm status
(fault).
Capacity plate
Inverter model
Serial number
Capacity plate
Rating plate
Voltage/current input switch
Connector for plug-in option connection
(Refer to the Instruction Manual of options.)
There are two connection connectors, and they are
called connector 1 and connector 2 from the top.
- EC
FR-F740-00126-EC
00126
Symbol
00023
to
12120
Represents the rated
current
Type Number
FR --F740
Symbol
F740
Voltage Class
Three-phase
400V class
Rating plate
Inverter model
Input rating
Output rating
Serial number
FR-F740-00126-EC
LD (50 C) XXA
SLD (40 C) XXA
Surrounding Air
Temperature
LD 120% 60s, 150% 3s 50 C
SLD 110% 60s, 120% 3s 40 C
• Inverter Model
Combed shaped
wiring cover
Overload Current Rating
Production year and month
(Refer to page 30)
(Refer to page 103)
(Refer to page 5)
(Refer to page 13)
(Refer to page 14)
(Refer to page 5)
Accessory
· Fan cover fixing screws (00620 or less)
(Refer to installation guideline)
Model Screw Size (mm) Number
00083, 00126 M3 35 1
00170 to 00380 M4 40 2
00470, 00620 M4 50 1
· DC reactor supplied (01800 or more)
· Eyebolt for hanging the inverter (00770 to 06830)
Model Eyebolt size Number
00770 M8 2
00930 to 03610 M10 2
04320 to 06830 M12 2
(Refer to page 29)
(Refer to page 22)
(Refer to page 16)
(Refer to page 12, 166)
(Refer to page 357)
(Refer to page 14)
