Frequency setting by external terminals

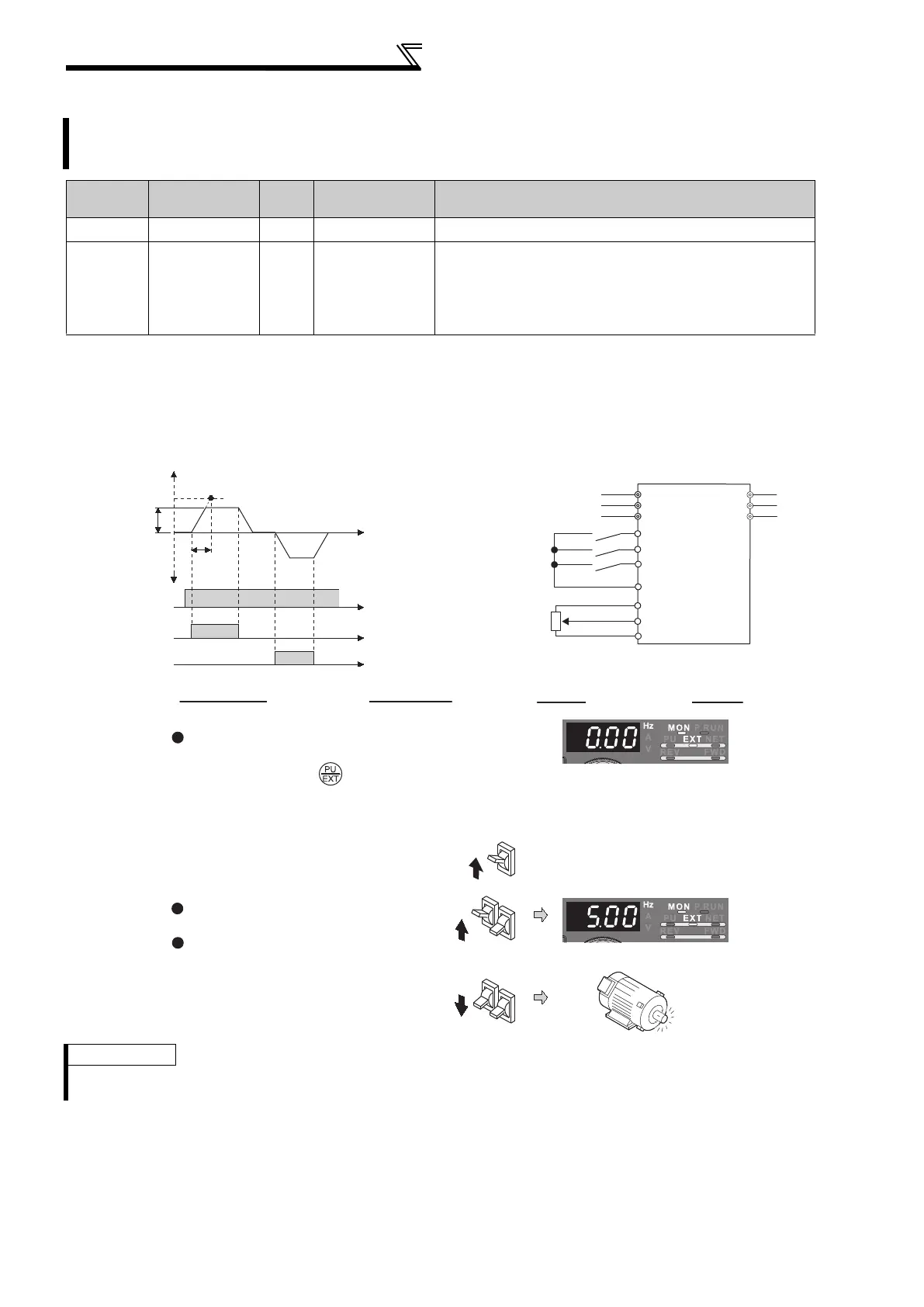

4.6.2 Jog operation (Pr. 15, Pr. 16)
The above parameters are displayed as simple mode parameters only when the parameter unit (FR-PU04/FR-PU07) is connected. When the
operation panel (FR-DU07) is connected, the above parameters can be set only when Pr. 160 User group read selection = "0". (Refer to page 185)
* When the setting of Pr. 21 Acceleration/deceleration time increments is "0" (initial value), the setting range is "0 to 3600s" and the setting increments are
"0.1s", and when the setting is "1", the setting range is "0 to 360s" and the setting increments are "0.01s"
(1) Jog operation from outside
· When the Jog signal is ON, a start and stop are available by the start signal (STF, STR). (The JOG signal is
assigned to the terminal JOG in the initial setting)
You can set the frequency and acceleration/deceleration time for jog operation. Jog operation can be performed
from either the outside or PU.
Can be used for conveyor positioning, test operation, etc.
Parameter
Number
Name
Initial
Value
Setting Range Description
15
Jog frequency 5Hz 0 to 400Hz Set the frequency for jog operation.
16
Jog
acceleration/
deceleration
time
0.5s 0 to 3600/360s*
Set the acceleration/deceleration time for jog operation. As the
acceleration/deceleration time set the time taken to reach the
frequency set in Pr. 20 Acceleration/deceleration reference
frequency. (Initial value is 50Hz)
The acceleration and deceleration times cannot be set
separately.
REMARKS
 When you want to change the running frequency, change Pr. 15 Jog frequency . (initial value "5Hz")
 When you want to change the running frequency, change Pr. 16 Jog acceleration/deceleration time . (initial value "0.5"s)
Output
frequency(Hz)
Pr.20
Pr.15
Jog frequency
setting range
Pr.16
Forward
rotation
Reverse
rotation
Time
ON
ON
ON
JOG signal
Forward
rotation STF
Reverse
rotation STR
STF
10
2
5
JOG
Motor
Inverter
R/L
1
S/L2
T/L3
U
V
W
Connection diagram for external jog operation
STR
Three-phase AC
power supply
Forward rotation start
Reverse rotation start
JOG signal
PC
1. Screen at powering ON
Confirm that the External operation mode is selected.
([EXT] lit)
If not displayed, press to change to the
external [EXT] operation mode.
If the operation mode still does not change,
set Pr. 79 to change to the External operation mode.
Indication
Operation
2. Turn the JOG switch ON.
ON
Forward
rotation
Forward
rotation
Reverse
rotation
Reverse
rotation
Rotates while ON
Stop
3. Turn the start switch (STF or STR) ON.
The motor rotates while start switch
(STF or STR) is ON.
Rotates at 5Hz. (Initial value of Pr. 15)
4. Turn the start switch (STF or STR) OFF.
ON
OFF
