Mitsubishi F700 Series User Manual

369
Outline dimension drawings
7
SPECIFICATIONS

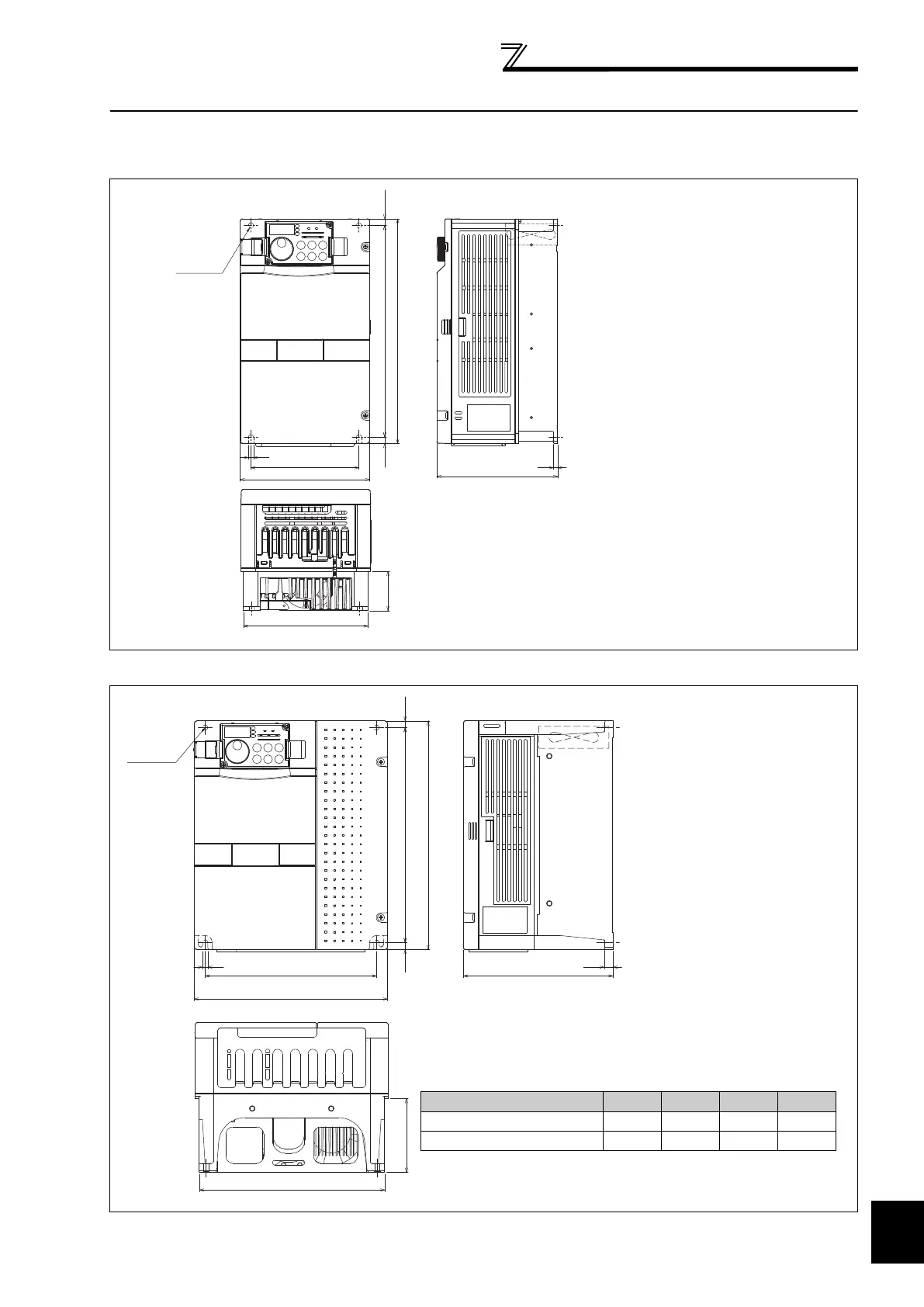

7.3 Outline dimension drawings
7.3.1 Inverter outline dimension drawings
 FR-F740-00023, 00038, 00052, 00083, 00126-EC
 FR-F740-00170, 00250, 00310, 00380-EC
(Unit: mm)
(Unit: mm)
260
150
125
6
140
5
7.5 7.5245
2-φ6 hole
144
45.5
* The FR-F740-00023 to
00052-EC are not
provided with cooling
fans.
H1
H
D
2-φ6 hole
7.5
220
195
211
10
6
7.5
D1
Inverter Model H H1 D D1
FR-F740-00170, 00250-EC 260 245 170 84
FR-F740-00310, 00380-EC 300 285 190 101.5

Mitsubishi F700 Series Specifications

General

Humidity	95% RH or less (non-condensing)
Control Method	V/F control
Protection Features	Overcurrent, overvoltage, undervoltage, overheat, short circuit
Communication Options	RS-485
Operating Temperature	-10°C to +50°C
Storage Temperature	-20°C to +65°C
Altitude	Up to 1000m above sea level
Overload Capacity	150% for 60 seconds
Cooling Method	Forced air cooling
Power Range	0.75 to 630 kW (1 to 845 hp)
Output Voltage	3-phase 200 to 240 VAC, 380 to 500 VAC (matching input voltage)
