Mitsubishi F700 Series User Manual

370

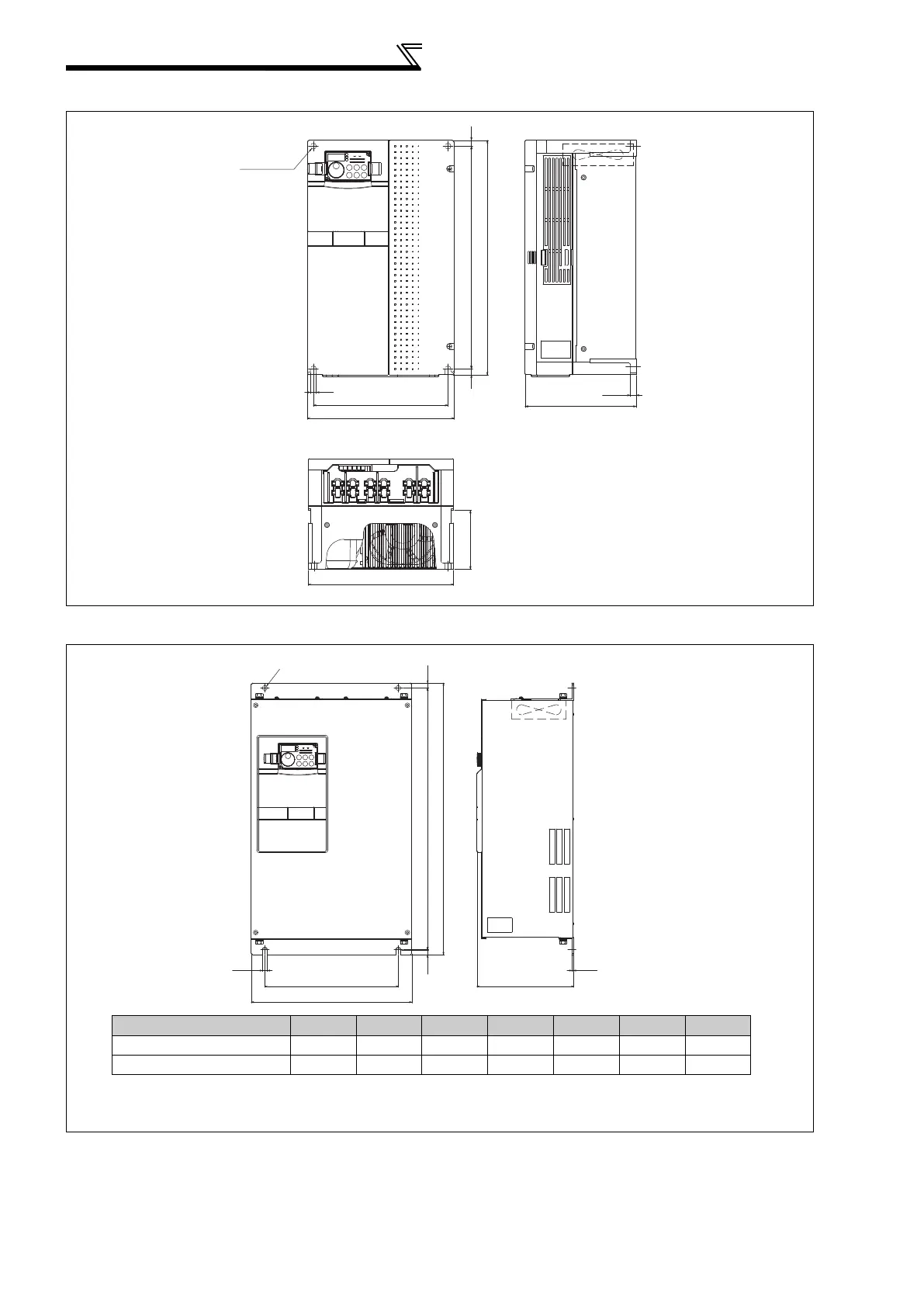

Outline dimension drawings
 FR-F740-00470, 00620-EC
 FR-F740-00770, 00930, 01160-EC
(Unit: mm)
(Unit: mm)
10
230
250
380
10
10
400
190
10.5
101.5
250
2-φ10 hole
W2
W
W1
H
D
2-φd hole
H1
550
10
3.2
Inverter Model W W1 W2 H H1 d D
FR-F740-00770-EC 325 270 10 530 10 10 195
FR-F740-00930, 01160-EC 435 380 12 525 15 12 250

Mitsubishi F700 Series Specifications

General

Humidity	95% RH or less (non-condensing)
Control Method	V/F control
Protection Features	Overcurrent, overvoltage, undervoltage, overheat, short circuit
Communication Options	RS-485
Operating Temperature	-10°C to +50°C
Storage Temperature	-20°C to +65°C
Altitude	Up to 1000m above sea level
Overload Capacity	150% for 60 seconds
Cooling Method	Forced air cooling
Power Range	0.75 to 630 kW (1 to 845 hp)
Output Voltage	3-phase 200 to 240 VAC, 380 to 500 VAC (matching input voltage)
