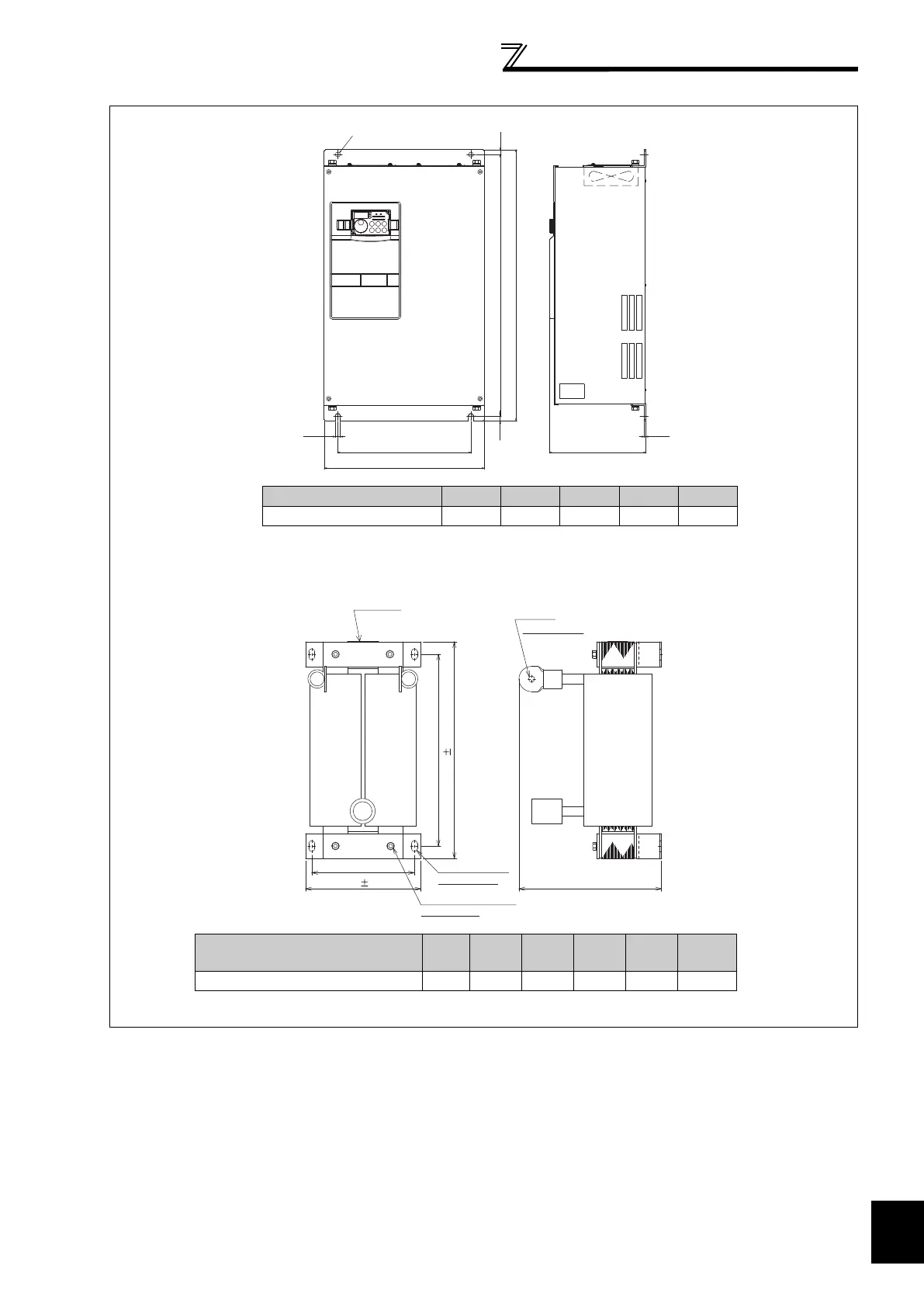

Outline dimension drawings
7
SPECIFICATIONS
 FR-F740-01800-EC
 DC reactor supplied
(Unit: mm)
W
W1
H
H1
D
2-φ12 hole
15
10
3.2
12
Inverter Model W W1 H H1 D
FR-F740-01800-EC 435 380 525 550 250
(for M6 screw)
4-mounting hole
(for M6 screw)
Earth (ground) terminal
Rating plate
2-terminal
E
P1
P
P1, P
(for M12 bolt)
Within D
W1
H1
H 10
W 2
DC reactor Model W W1 H H1 D
Mass
(kg)
FR-HEL-H90K (FR-F740-01800-EC ) 150 130 340 310 190 20

Mitsubishi F700 Series Specifications

General

Humidity	95% RH or less (non-condensing)
Control Method	V/F control
Protection Features	Overcurrent, overvoltage, undervoltage, overheat, short circuit
Communication Options	RS-485
Operating Temperature	-10°C to +50°C
Storage Temperature	-20°C to +65°C
Altitude	Up to 1000m above sea level
Overload Capacity	150% for 60 seconds
Cooling Method	Forced air cooling
Power Range	0.75 to 630 kW (1 to 845 hp)
Output Voltage	3-phase 200 to 240 VAC, 380 to 500 VAC (matching input voltage)
