Mitsubishi F700 Series User Manual

372

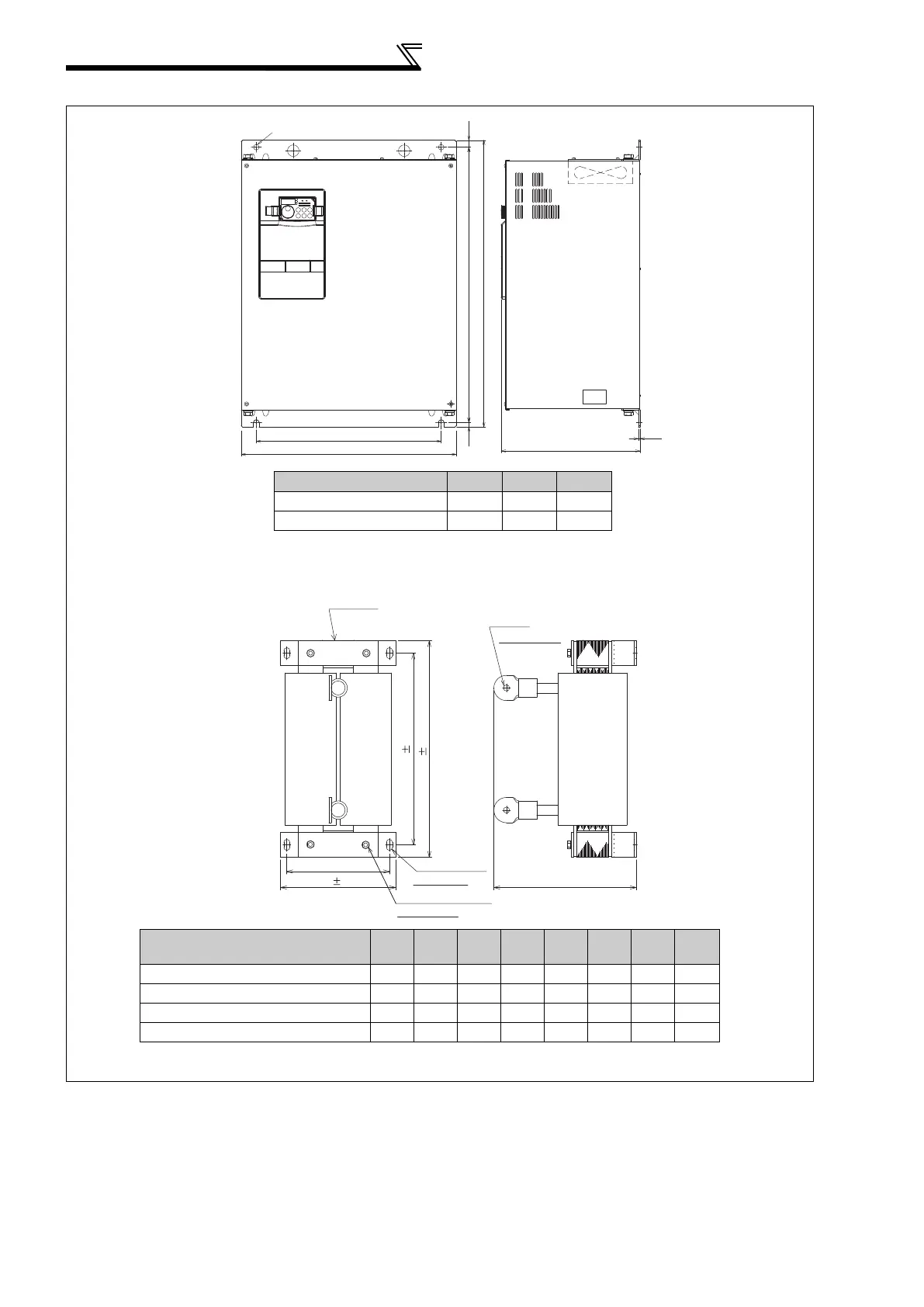

Outline dimension drawings
 FR-F740-02160, 02600, 03250, 03610-EC
 DC reactor supplied
(Unit: mm)
Inverter Model H H1 D
FR-F740-02160, 02600-EC 595 620 300
FR-F740-03250, 03610-EC 715 740 360
D
3.2
465
400
H1
H
10
15
2-φ12 hole
DC reactor Model W W1 H H1 D S S1
Mass
(kg)
FR-HEL-H110K(FR-F740-02160-EC) 150 130 340 310 195 M6 M6 22
FR-HEL-H132K(FR-F740-02600-EC) 175 150 405 370 200 M8 M6 26
FR-HEL-H160K(FR-F740-03250-EC) 175 150 405 370 205 M8 M6 28
FR-HEL-H185K(FR-F740-03610-EC) 175 150 405 370 240 M8 M6 29
E
P1
P
P1
P
W1
Rating plate
(for S screw)
4-installation hole
(for S1 screw)
Earth (ground) terminal
Within D
(for M12 bolt)
2-terminal
H 10
H1 10
W 2

Mitsubishi F700 Series Specifications

General

Humidity	95% RH or less (non-condensing)
Control Method	V/F control
Protection Features	Overcurrent, overvoltage, undervoltage, overheat, short circuit
Communication Options	RS-485
Operating Temperature	-10°C to +50°C
Storage Temperature	-20°C to +65°C
Altitude	Up to 1000m above sea level
Overload Capacity	150% for 60 seconds
Cooling Method	Forced air cooling
Power Range	0.75 to 630 kW (1 to 845 hp)
Output Voltage	3-phase 200 to 240 VAC, 380 to 500 VAC (matching input voltage)
