Mitsubishi F700 Series User Manual

165
Motor noise, EMI measures, mechanical resonance
4
PARAMETERS

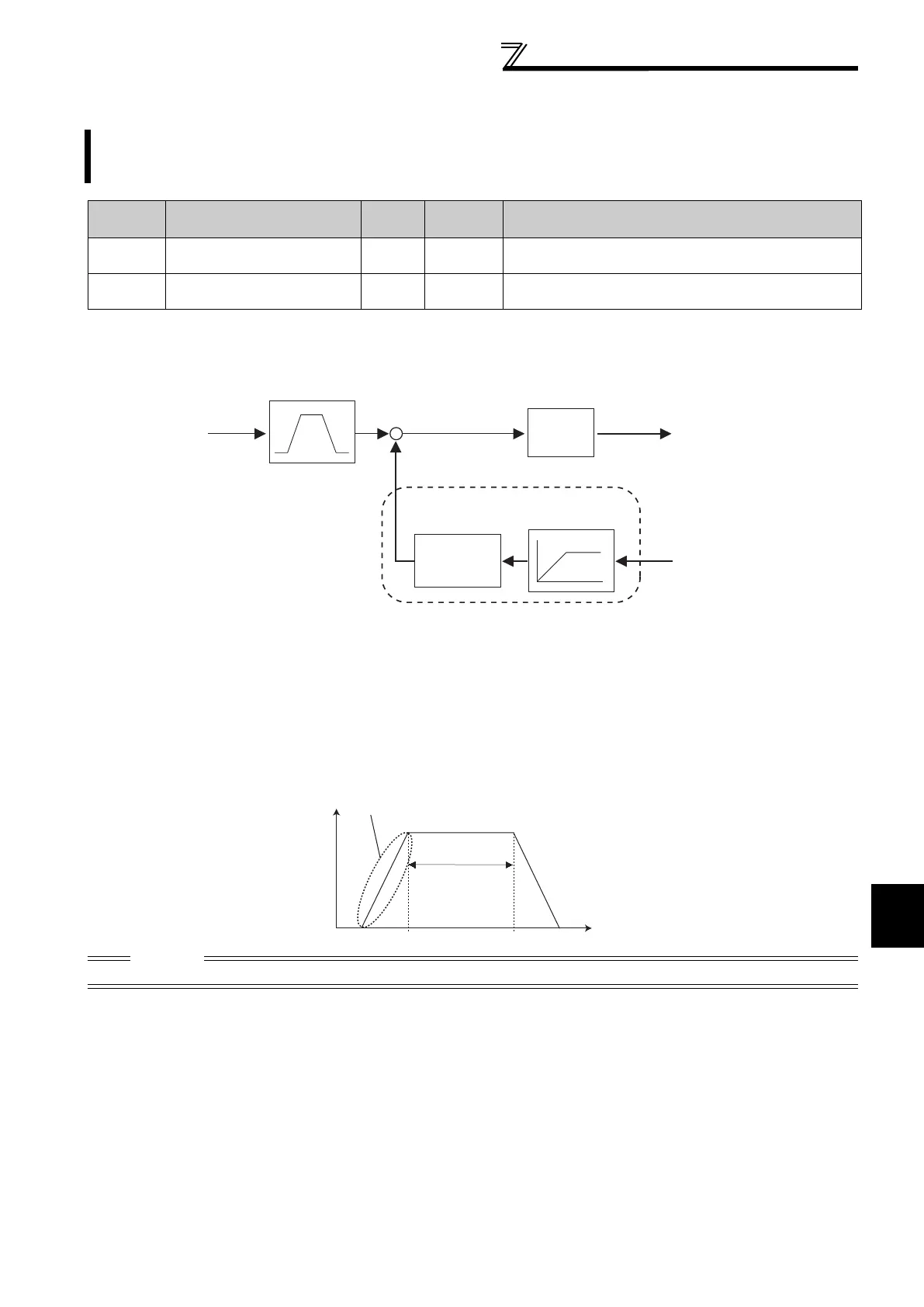

4.15.2 Speed smoothing control (Pr. 653, Pr. 654)
(1) Control block diagram
(2) Setting method
If vibration due to mechanical resonance occurs, set 100% in Pr. 653, run the inverter at the frequency which
generates maximum vibration and check if the vibration will be reduced or not after several seconds.
If effect is not produced, gradually increase the Pr. 653 setting and check the effect repeatedly until the most
effective value is set in Pr. 653.
If vibration becomes large by increasing the Pr. 653 setting, gradually decrease the Pr. 653 setting from 100% to
check the effect in a similar manner.
When the vibrational frequency due to the mechanical resonance (fluctuation of torque, speed, and converter
output voltage) is known using a tester and such, set 1/2 to 1 time of the vibrational frequency to Pr.654. (Setting
vibrational frequency range can suppress the vibration better.)
Vibration due to mechanical resonance influences the inverter control, causing the output current (torque) to be
unstable. In this case, the output current (torque) fluctuation can be reduced to ease vibration by changing the
output frequency.
Parameter
Number
Name
Initial
Value
Setting
Range
Description
653
Speed smoothing control 0 0 to 200%
The torque fluctuation is reduced to reduce vibration due to
mechanical resonance.
654
Speed smoothing cutoff
frequency
20Hz 0 to 120Hz
Set the minimum value for the torque variation cycle
(frequency).
The above parameters can be set when Pr. 160 User group read selection = "0". (Refer to page 185)
CAUTION
 Depending on the machine, vibration may not be reduced enough or an effect may not be produced.
Acceleration/deceleration
processing
Speed
command
V/F control
Current for torque
Frequency output
Voltage output
+
-
Proportional gain
Pr.653
Output frequency
Cutoff frequency
Pr.654
Speed smoothing control
0 Vibrational frequenc
y
159Hz (fixed)
Torque fluctuation
detection range
Cutoff frequency
Pr.654
Current for
torque

Mitsubishi F700 Series Specifications

General

Humidity	95% RH or less (non-condensing)
Control Method	V/F control
Protection Features	Overcurrent, overvoltage, undervoltage, overheat, short circuit
Communication Options	RS-485
Operating Temperature	-10°C to +50°C
Storage Temperature	-20°C to +65°C
Altitude	Up to 1000m above sea level
Overload Capacity	150% for 60 seconds
Cooling Method	Forced air cooling
Power Range	0.75 to 630 kW (1 to 845 hp)
Output Voltage	3-phase 200 to 240 VAC, 380 to 500 VAC (matching input voltage)
