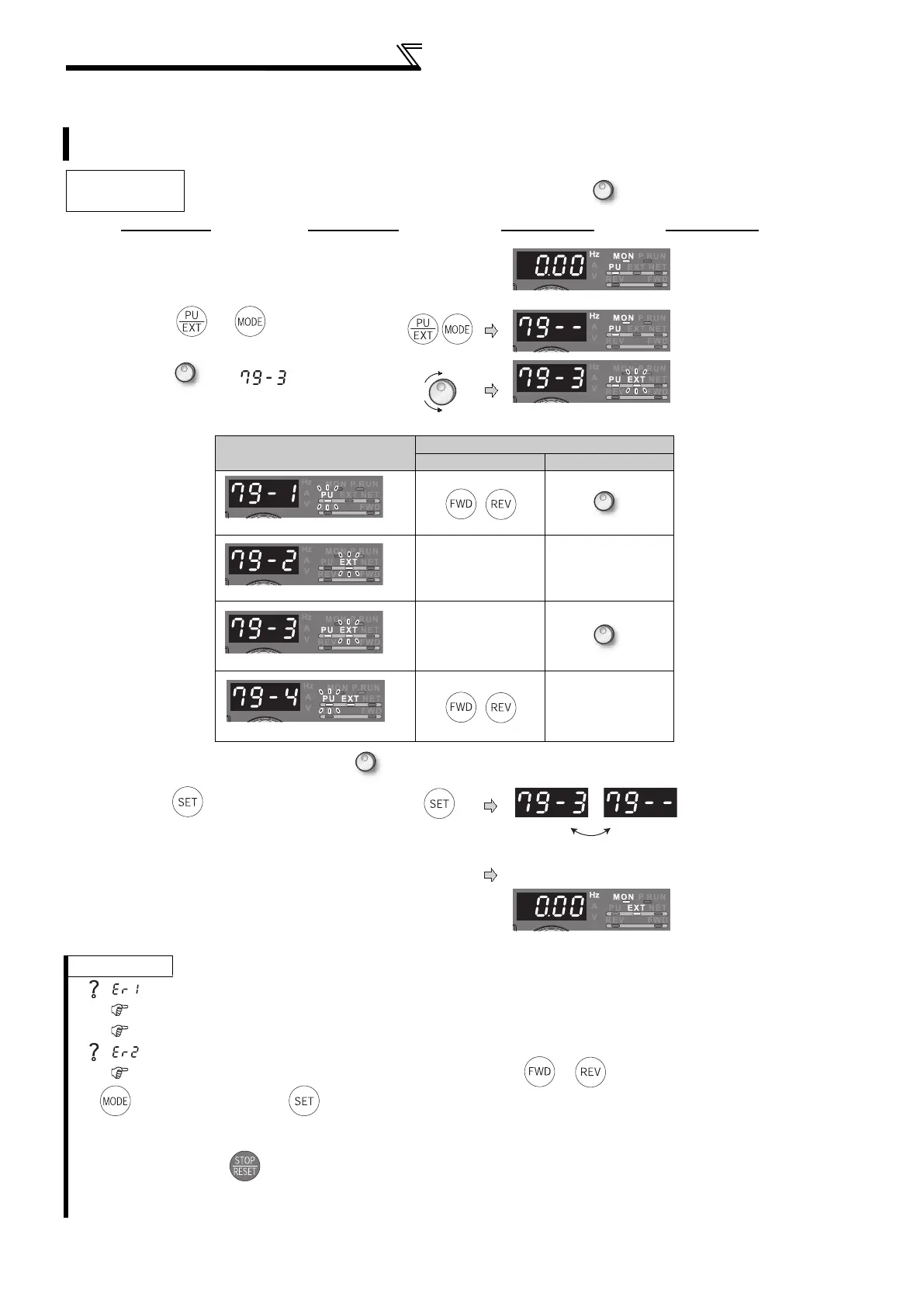

Operation panel (FR-DU07)
4.1.3 Easy operation mode setting (easy setting mode)
Setting of Pr. 79 Operation mode selection according to combination of the start command and speed command can
be easily made.
Operation example
Start command: external (STF/STR), frequency command: operate with
Operation Display
1. Screen at powering ON
The monitor display appears.
2. Press and for 0.5s.
3. Turn until appears.
(refer to the table below for other settings)
* To use as a potentiometer, refer to page 312.
4. Press to set.
Flicker ··· Parameter setting complete!!
The monitor display appears after 3s.
REMARKS
is displayed ... Why?
Pr. 79 is not registered in user group with "1" in Pr. 160 User group read selection.
Parameter write is disabled with "1" set in Pr. 77.
is displayed ... Why?
Setting cannot be changed during operation. Turn the start command ( or , STF or STR) OFF.
If is pressed before pressing , the easy setting mode is terminated and the display goes back to the monitor display. If
the easy setting mode is terminated while Pr. 79 = "0 (initial setting)," the operation mode switches between the PU operation mode
and the External operation mode. Check the operation mode.
Reset can be made with .
The priorities of the frequency commands when Pr. 79 = "3" are "Multi-speed operation (RL/RM/RH/REX) > PID control (X14) >
terminal 4 analog input (AU) > digital input from the operation panel".
Operation Panel Indication
Operation Method
Start command
Frequency command
,
*
External
(STF, STR)
Analog
voltage input
External
(STF, STR)
*
,
Analog
voltage input
Flickering
To Next Page
