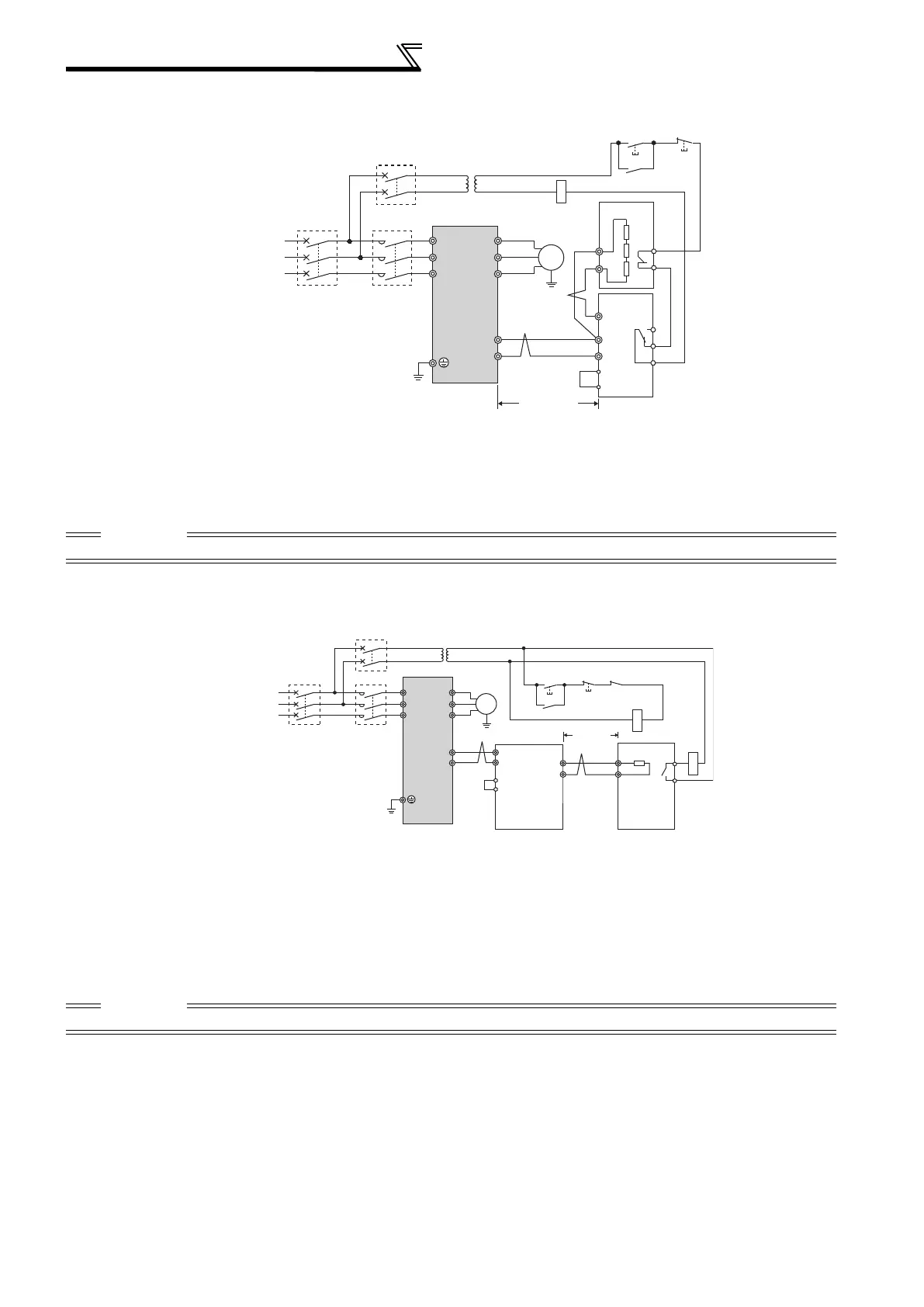

Connection of stand-alone option units
(2) FR-BR-(H) connection example with resistor unit
(3) Connection example with MT-BR5 type resistor unit
*1 Connect the inverter terminals (P/+, N/-) and brake unit (FR-BU2) terminals so that their terminal names match with each other.
(Incorrect connection will damage the inverter and brake unit.)
*2 When the power supply is 400V class, install a step-down transformer.
*3 The wiring distance between the inverter, brake unit (FR-BU) and resistor unit (FR-BR) should be within 5m. Even when the
wiring is twisted, the cable length must not exceed 10m.
*4 Normal: across TH1 and TH2...close, Alarm: across TH1 and TH2...open
CAUTION
Do not remove a jumper across terminal P/+ and P1 except when connecting a DC reactor.
*1 Connect the inverter terminals (P/+, N/-) and brake unit (FR-BU2) terminals so that their terminal names match with each other.
(Incorrect connection will damage the inverter and brake unit.)
*2 When the power supply is 400V class, install a step-down transformer.
*3 The wiring distance between the inverter, brake unit (FR-BU2) and resistor unit (MT-BR5) should be within 5m. If twisted wires
are used, the distance should be within 10m.
*4 Normal: across TH1 and TH2...open, Alarm: across TH1 and TH2...close
*5 CN8 connector used with the MT-BU5 type brake unit is not used.
CAUTION
Set "2" in Pr. 0 Brake mode selection of the FR-BU2 to use MT-BR5 type resistor unit.
U
V
W
P/+
N/-
R/L1
S/L2
T/L3
Motor
IM
Inverter
PR
N/-
BUE
PC
P/+
P
A
B
C
FR-BU2
FR-BR
TH2
TH1
PR
Three phase AC
power supply
MCCB
MC
OFFON
MC
T
*1
*4
5m or less
*3
*3
*2
MC
*1
MC
R/L1
Motor
IM
Inverter
S/L2
T/L3
U
V
P/+
N/-
P
PR
5m
or less
W
Three phase AC
power supply
MCCB
TH1
TH2
CR1
MC
OFFON
MC
CR1
T
*3
*1
*3
*5
*4
P
N
BUE
PC
P
PR
Brake unit
FR-BU2
Resistor unit
MT-BR5
*2
*1
