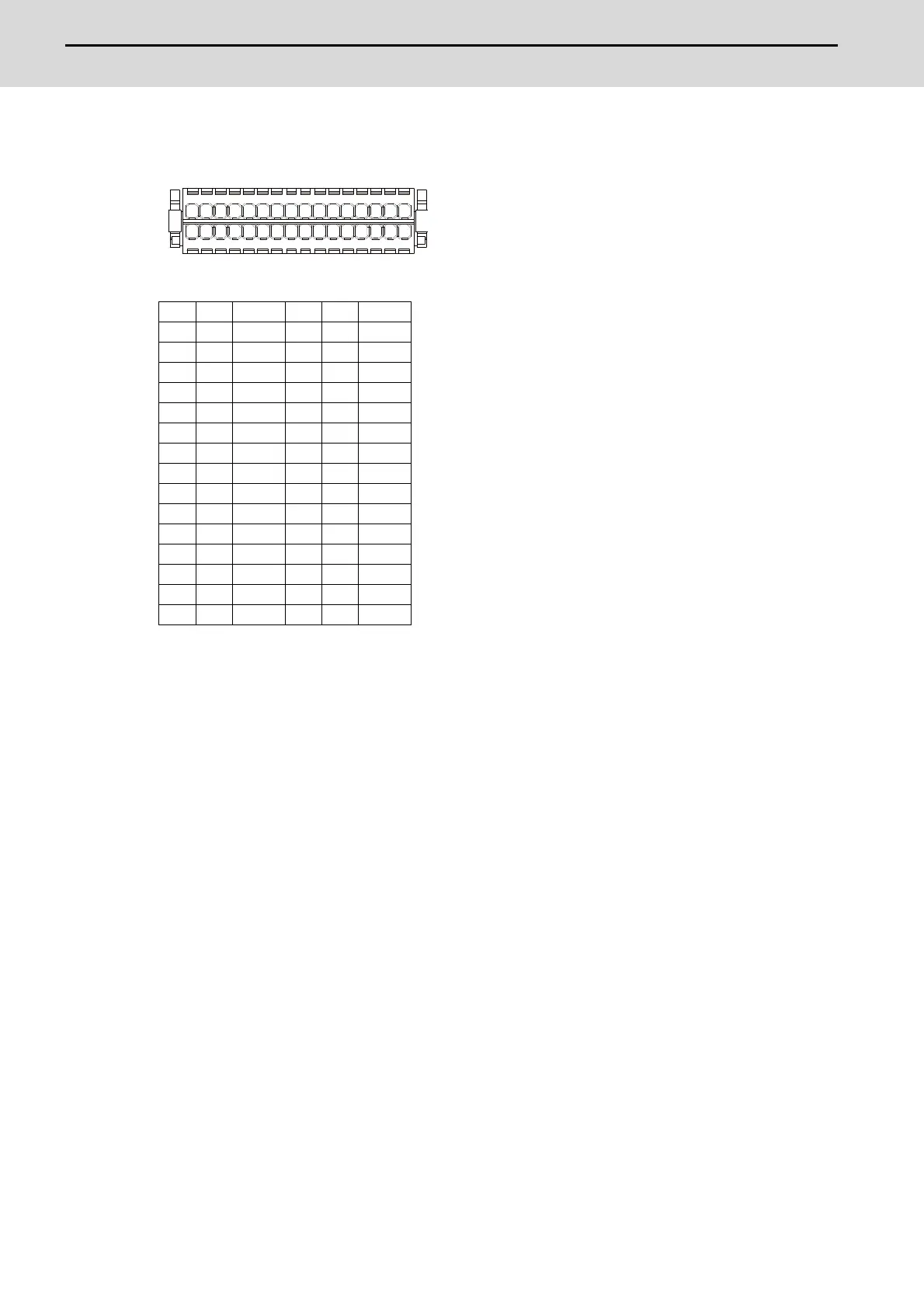

(7) SDI (Safety machine signal input)
<Cable side connector type>
Connector : 713-1116/037-000
Recommended manufacturer : WAGO
(The cable side connector is attached to the unit.)
16 I SX07B 32 COMB+
15 I SX07A 31 COMA+
14 I SX06B 30 COMB+
13 I SX06A 29 COMA+
12 I SX05B 28 COMB+
11 I SX05A 27 COMA+
10 I SX04B 26 COMB+
9 I SX04A 25 COMA+
8 I SX03B 24 COMB+
7 I SX03A 23 COMA+
6 I SX02B 22 COMB+
5 I SX02A 21 COMA+
4 I SX01B 20 COMB+
3 I SX01A 19 COMA+
2 I SX00B 18 COMB+
1 I SX00A 17 COMA+
161
17 32

Mitsubishi M80 series Specifications

General

Type	CNC Control Unit
Power Supply	24V DC
Interpolation	Linear, circular, helical
Fieldbus	CC-Link
Operating Temperature	0 to 45°C
Interface	USB, RS-232
Processor	RISC processor
Ethernet	Yes (100BASE-TX/10BASE-T)
