M800S/M80/E80 Series Connection and Setup Manual
5 Installation
211
IB-1501269-J
5.3.4 Remote I/O Unit

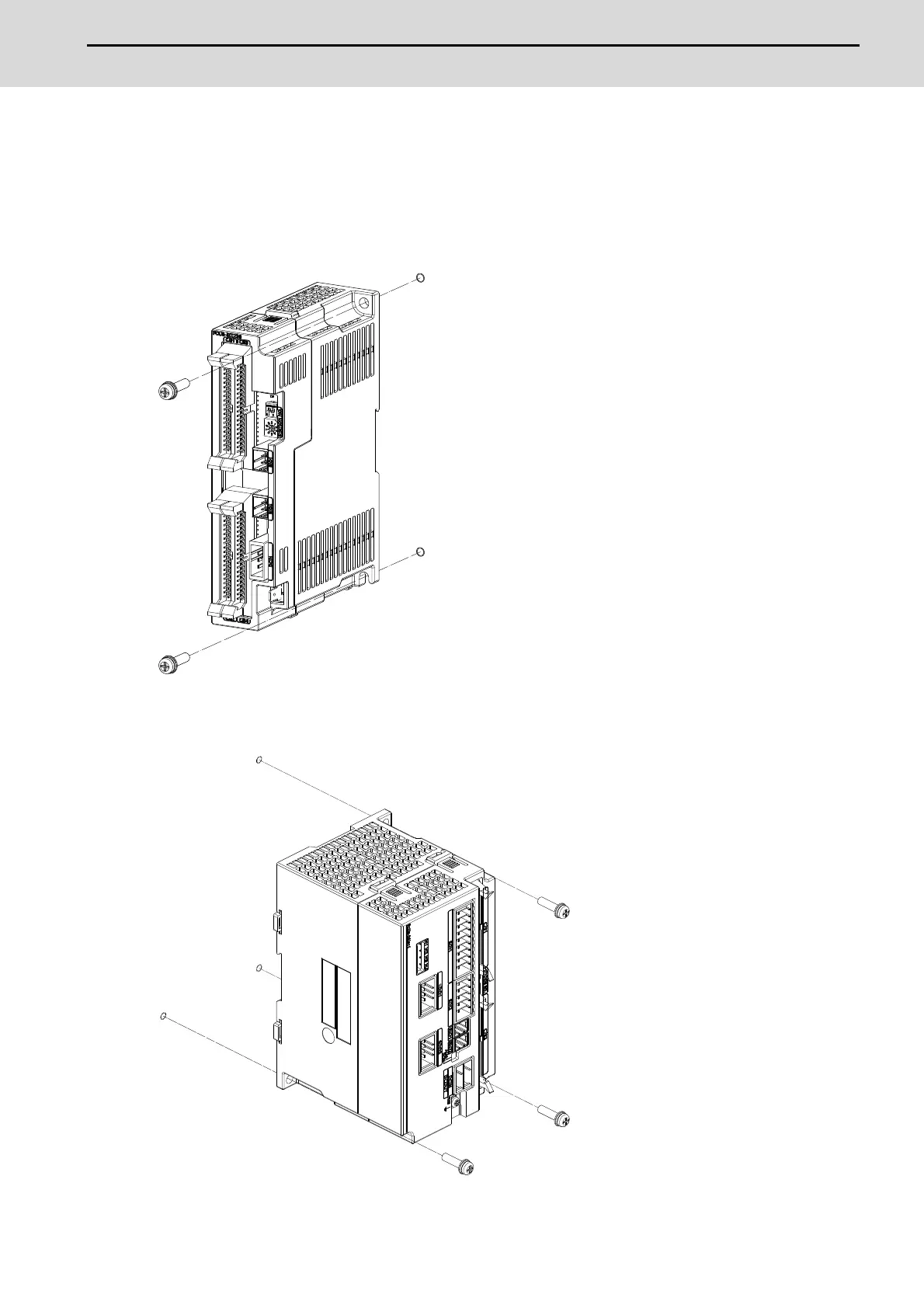

Mount the remote I/O unit with the prescribed number of fixing screws.
(Note) Refer to "General Specifications: Remote I/O Unit" for the installation dimension and the screw hole position.
[FCU8-DX220 / FCU8-DX230 / FCU8-DX231 / FCU8-DX202 / FCU8-DX213 / FCU8-DX213-1 /
FCU8-DX654 / FCU8-DX654-1 / FCU8-DX408 / FCU8-DX409]
Fixing screw: M5 (2pcs)
[FCU8-DX651]
Fixing screw: M5 (3pcs)
