M800S/M80/E80 Series Connection and Setup Manual
13 Connection of MITSUBISHI CNC Machine Operation Panel
331
IB-1501269-J

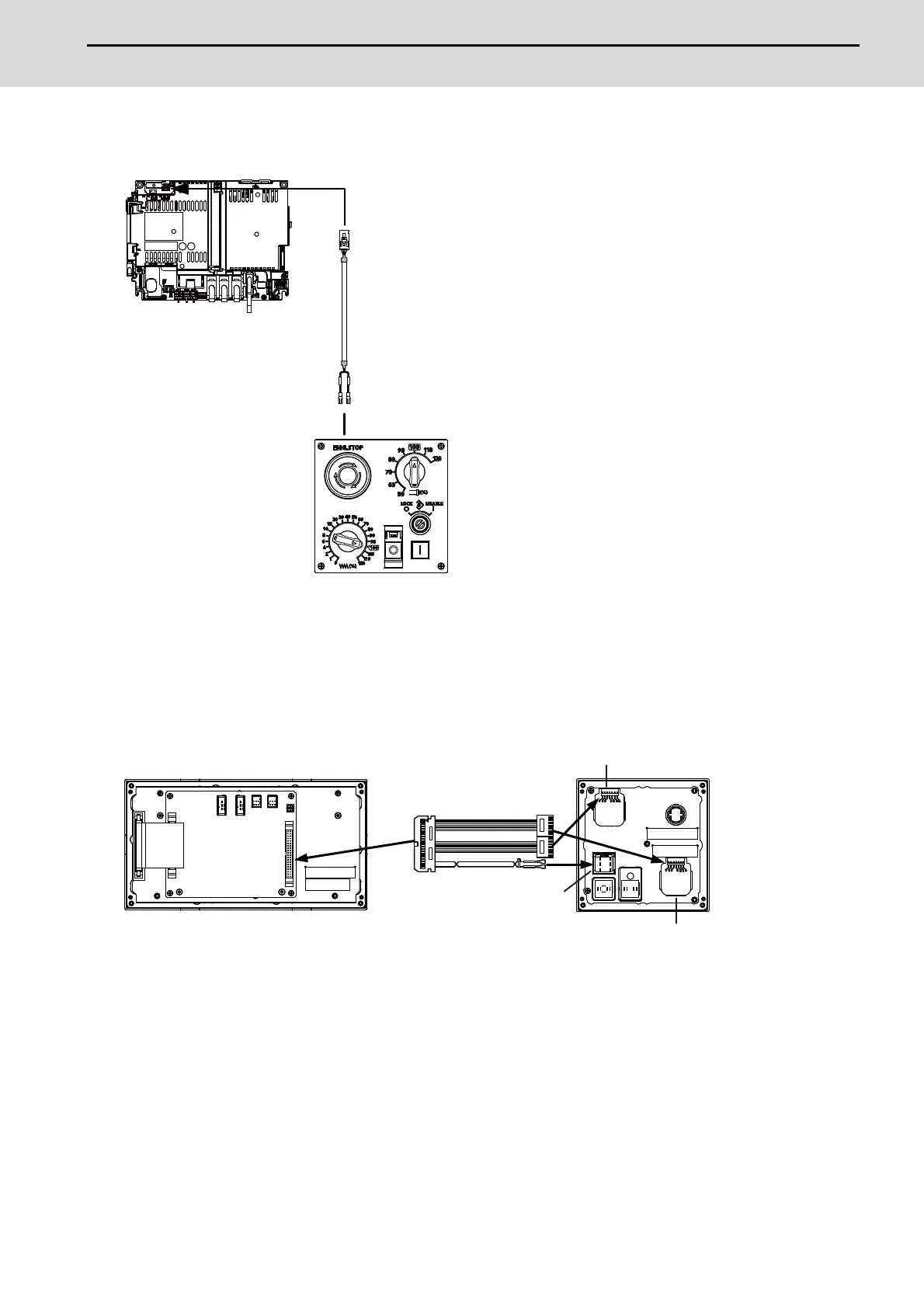

13.5 Connecting Emergency Stop Switch
<Related items>
Cable drawing: "Cable: J121 Cable"
Connector pin assignment: "General Specifications: MITSUBISHI CNC Machine Operation Panel: Sub Panel A"
(emergency stop switch)
13.6 Connecting with Sub Panel
<Related items>
Cable drawing: "Cable: G460 Cable"
Connector pin assignment: "General Specifications: MITSUBISHI CNC Machine Operation Panel: Main Panel A,B"
(SUBP connector)
Connector pin assignment: "General Specifications: MITSUBISHI CNC Machine Operation Panel: Sub Panel A"
(rapid traverse override, cutting override, memory protection switch)
J121
EMG
24V
EMG
Control unit
Machine operation panel (sub panel)
Emergency stop switch
SUBP
G460
Cutting override
Rapid traverse override
Memory protection switch

Mitsubishi M80 series Specifications

General

Type	CNC Control Unit
Power Supply	24V DC
Interpolation	Linear, circular, helical
Fieldbus	CC-Link
Operating Temperature	0 to 45°C
Interface	USB, RS-232
Processor	RISC processor
Ethernet	Yes (100BASE-TX/10BASE-T)
