M800S/M80/E80 Series Connection and Setup Manual
20 Sequence Program Writing
442
IB-1501269-J
20.9.4 Setting Program Executing Order
When creating sequence programs in multi-program method, set the execution method and execution order of sequence
programs. This operation is required before a sequence program is executed on the CNC controller, and parameter files
must be written to the CNC controller.
(Note) Without this operation, an error occurs on the RUN of sequence programs when multi-program method is in
use.
(1) Select the Program tab.

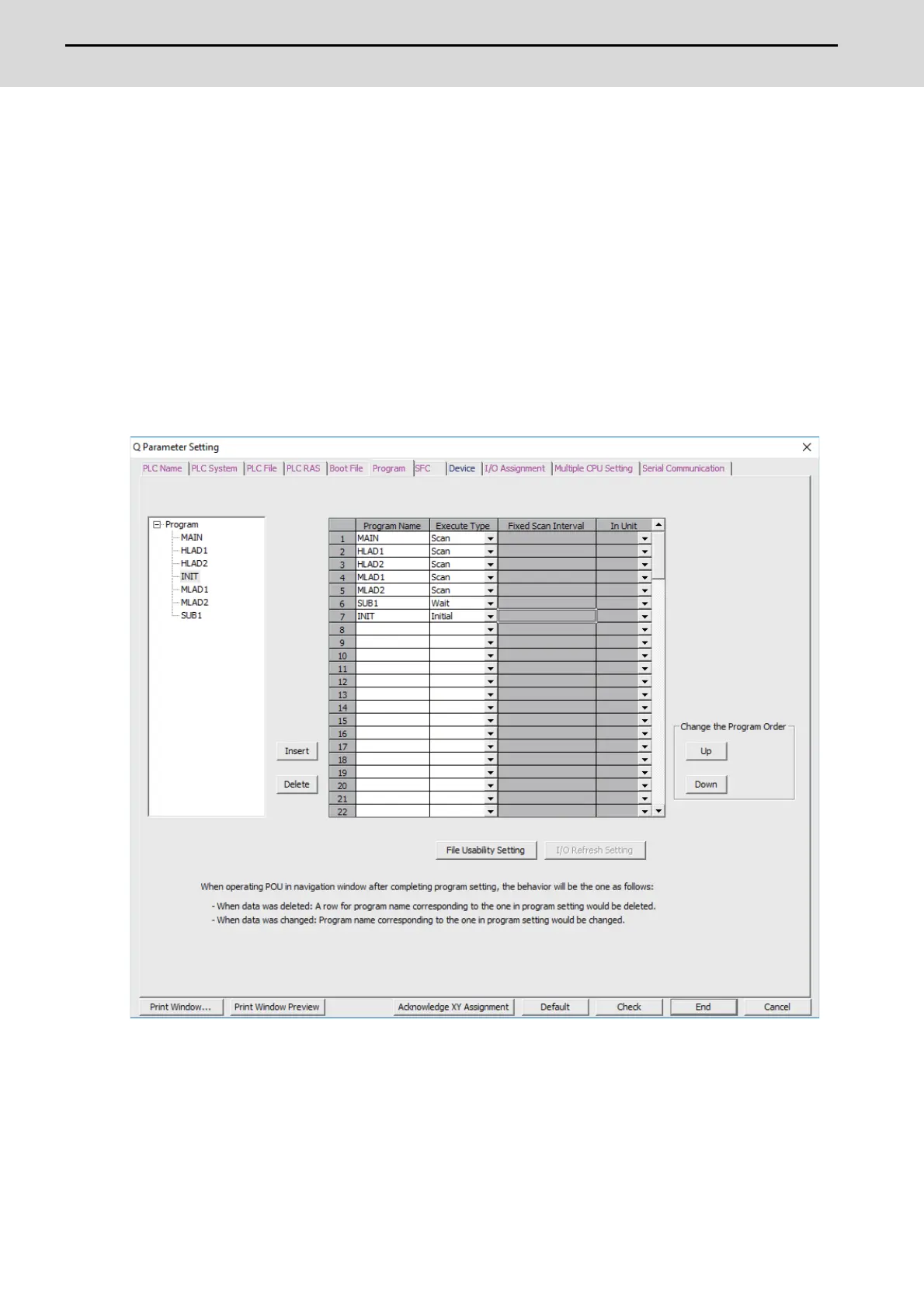

(2) Select the name of the sequence program to be registered for execution from the program list on the left side of the
following screen, and press [Insert]. Select the execution mode from the registered program list on the right side.
(3) After registering all sequence programs to execute, click [End].
To Next Page
