M800S/M80/E80 Series Connection and Setup Manual
9 Connection of Operation Panel I/O Unit
279
IB-1501269-J

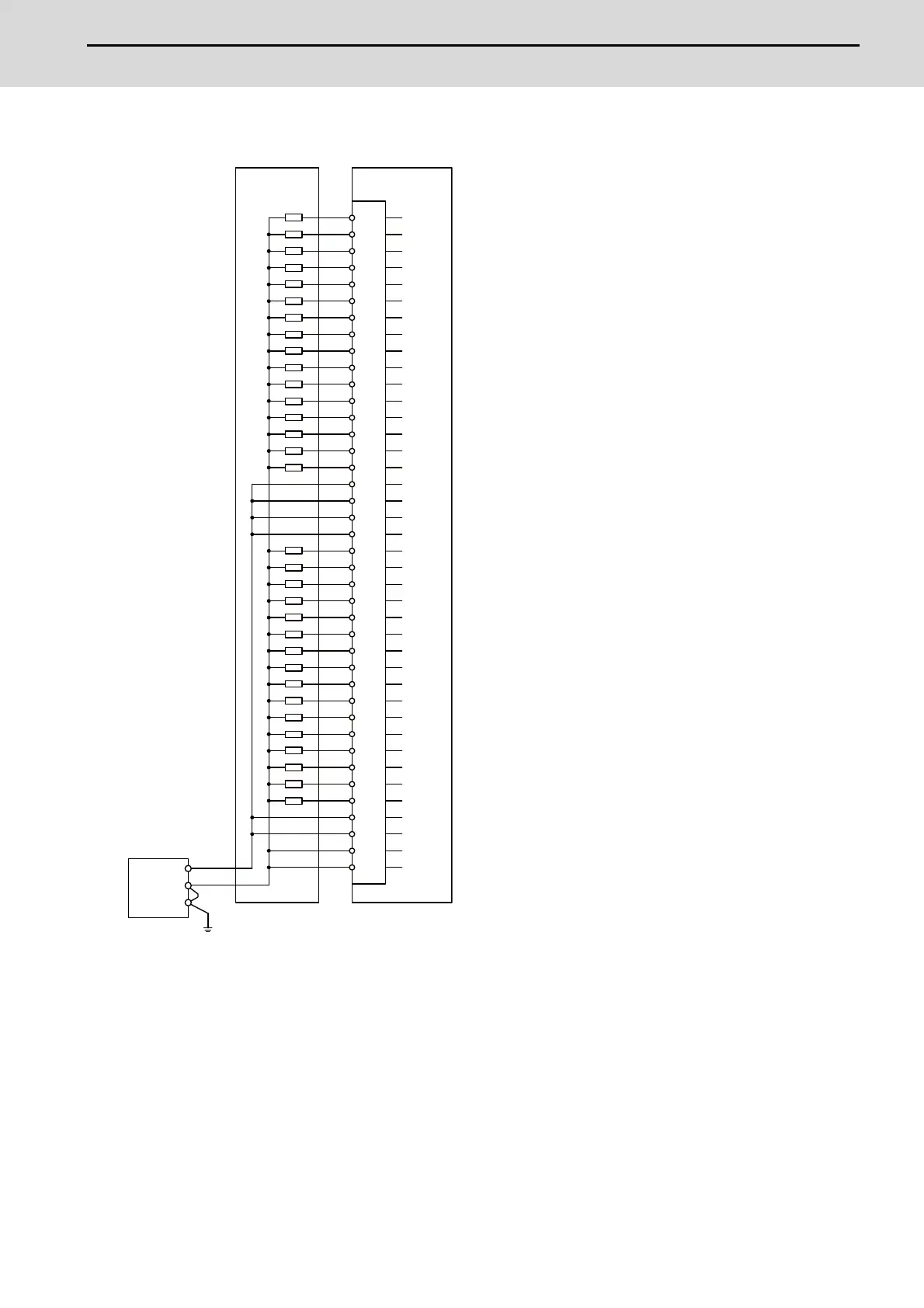

9.8.4 Example of Wiring CJ42 (FCU8-DX760)
For connection details, refer to the descriptions on machine output connector pin assignment in "(11) Machine signal
output (CJ42)" of "General Specifications: Operation Panel I/O Unit".
0V
FG
FCU8-DX760
CJ42
B20
B19
B18
B17
B16
B15
B14
B13
B12
B11
B10
B09
B08
B07
B06
B05
Y260
Y261
Y262
Y263
Y264
Y265
Y266
Y267
Y268
Y269
Y26A
Y26B
Y26C
Y26D
Y26E
Y26F
A20
A19
A18
A17
A16
A15
A14
A13
A12
A11
A10
A09
A08
A07
A06
A05
Y270
Y271
Y272
Y273
Y274
Y275
Y276
Y277
Y278
Y279
Y27A
Y27B
Y27C
Y27D
Y27E
Y27F
B04
B03
B02
B01
A04
A03
A02
A01
DOCOM
DOCOM
DOCOM
DOCOM
DOCOM
DOCOM
0V
0V
24VDC(+)
Machine side
Stabilized
power supply
