Mitsubishi M80 series User Manual

M800S/M80/E80 Series Connection and Setup Manual
21 Confirming the Basic Operation
450
IB-1501269-J
21.1 Checking Inputs/Outputs and Alarms

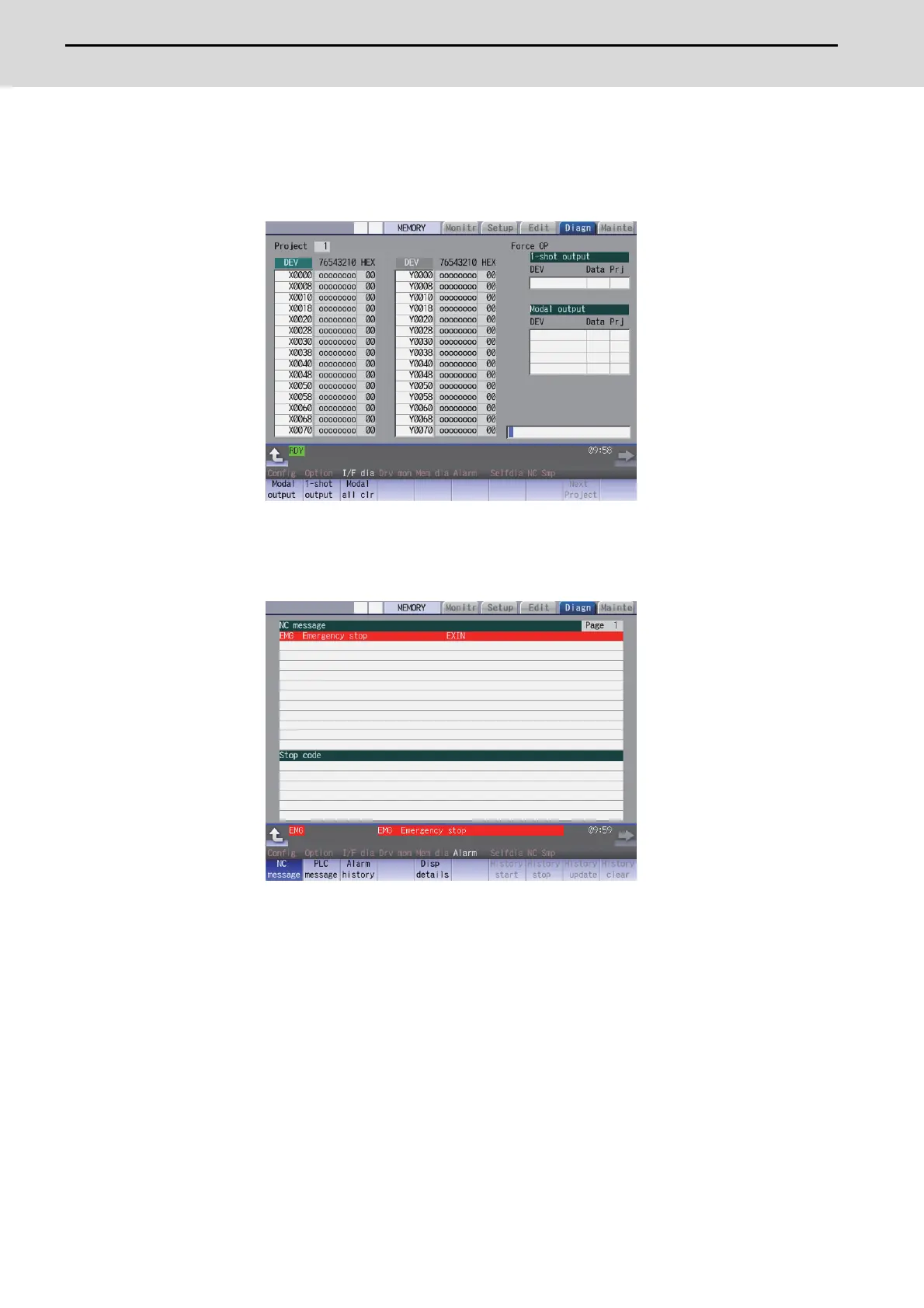

(1) Checking the input signals
(a) Select [I/F dia] on the Diagn screen.
(b) Confirm that signals turn ON/OFF properly on the IF Diagnosis screen.
(2) Checking the alarm display
(a) Select [Alarm] on the Diagn screen.
(b) Check any other alarm than "Emergency stop EXIN" displayed on the Alarm screen.

Mitsubishi M80 series Specifications

General

Type	CNC Control Unit
Power Supply	24V DC
Interpolation	Linear, circular, helical
Fieldbus	CC-Link
Operating Temperature	0 to 45°C
Interface	USB, RS-232
Processor	RISC processor
Ethernet	Yes (100BASE-TX/10BASE-T)
