M800S/M80/E80 Series Connection and Setup Manual
5 Installation
210
IB-1501269-J
5.3.3 Operation Panel I/O Unit
Mount the operation panel I/O unit with the prescribed number of fixing screws.
(Note) Refer to "General Specifications: Operation Panel I/O Unit" for the installation dimension and the screw hole
position.

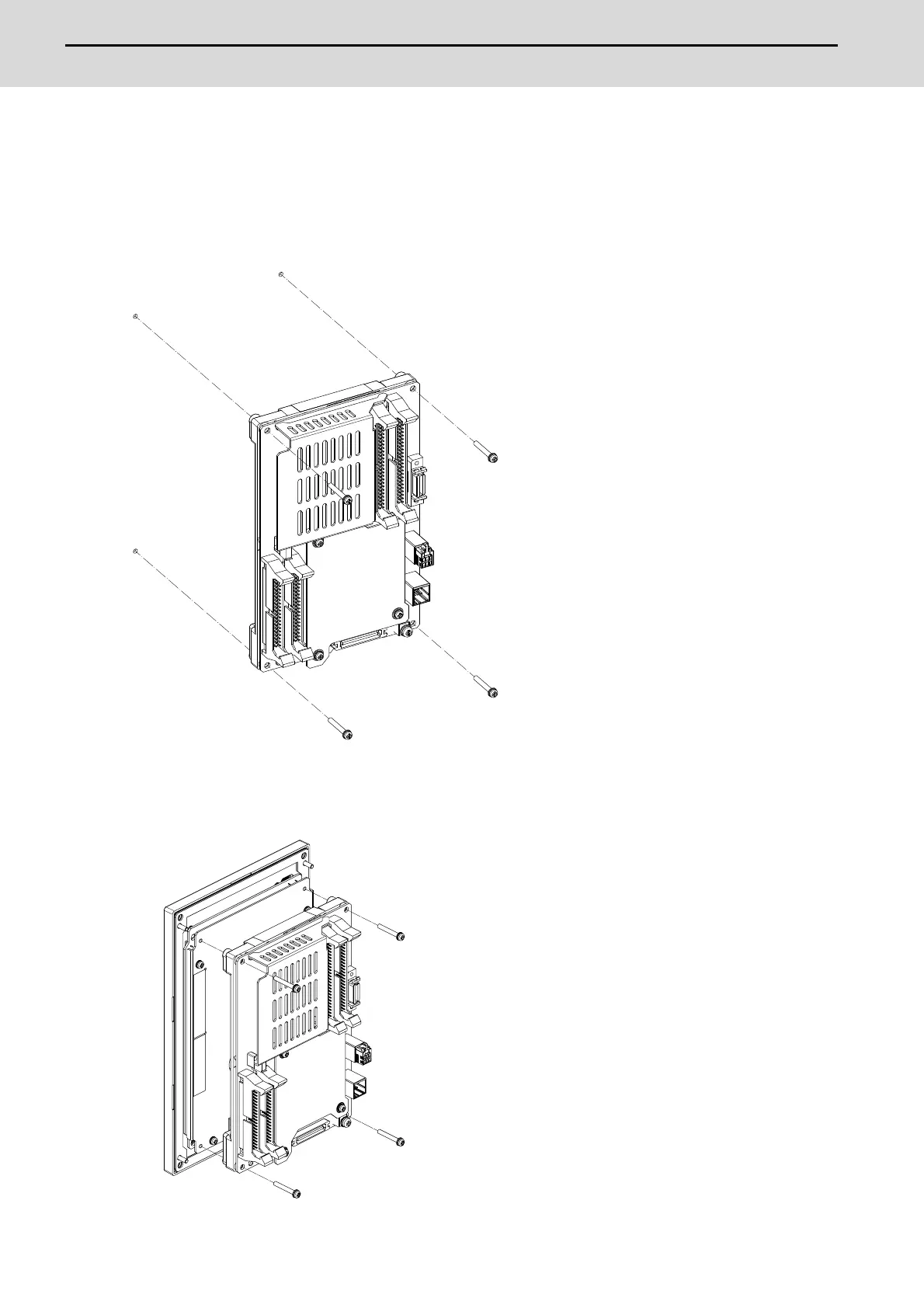

[FCU8-DX731 / FCU8-DX750 / FCU8-DX760 / FCU8-DX761 / FCU8-DX834]
Fixing screw: M3 (4 pcs)
Installation on the back side of the keyboard
Operation panel I/O unit can be installed on the back side of the keyboard.
Fixing screw: M3x25 (4 pcs)

Mitsubishi M80 series Specifications

General

Type	CNC Control Unit
Power Supply	24V DC
Interpolation	Linear, circular, helical
Fieldbus	CC-Link
Operating Temperature	0 to 45°C
Interface	USB, RS-232
Processor	RISC processor
Ethernet	Yes (100BASE-TX/10BASE-T)
