M800S/M80/E80 Series Connection and Setup Manual
15 Cable
344
IB-1501269-J

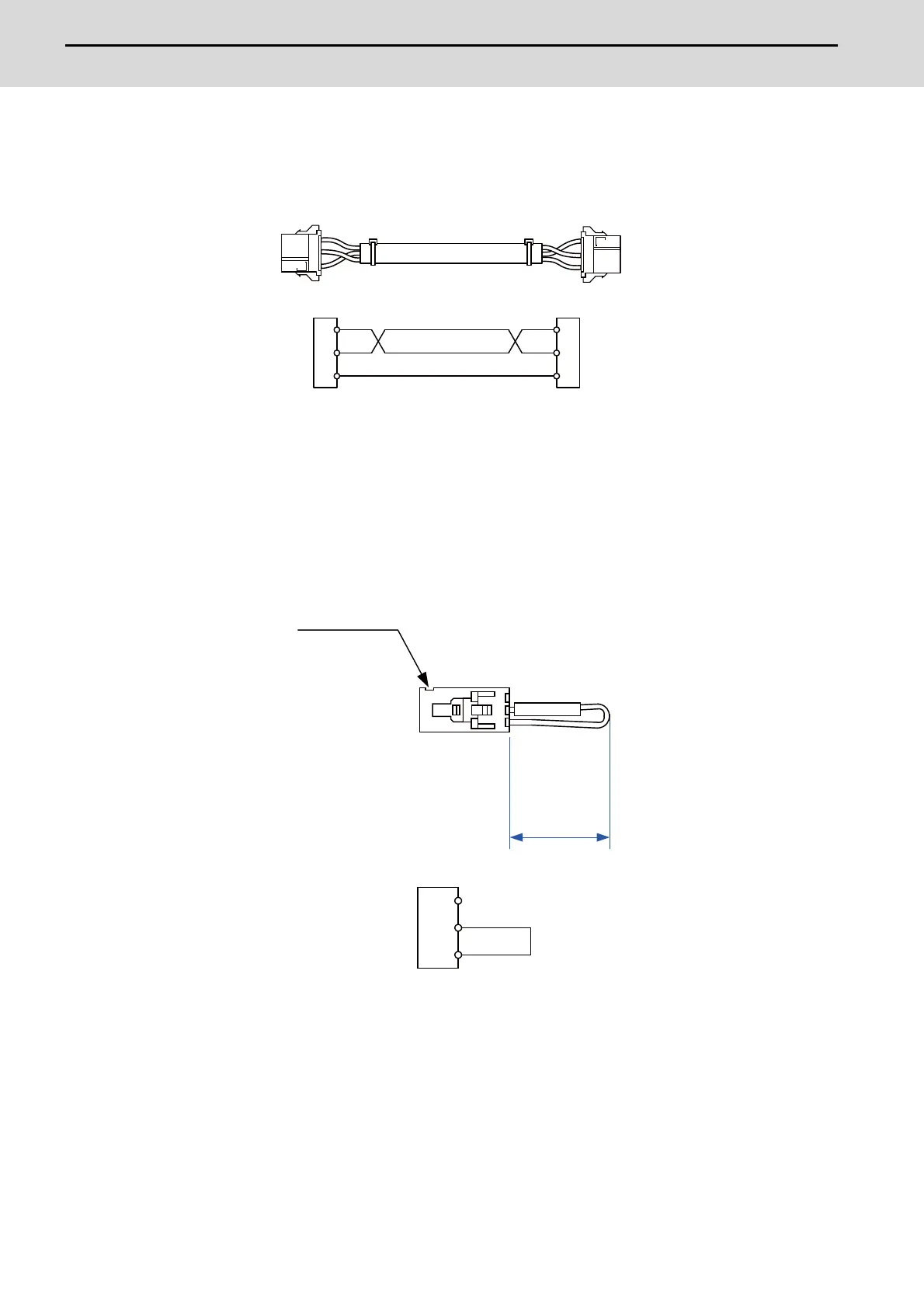

15.2.2 G071 Cable
Max. cable length: 1m
Application: 24VDC relay cable for MITSUBISHI CNC machine operation panel
(Note) These cables are available only when wired to a same control panel.
15.2.3 G123 Cable
Application: Cable for emergency stop release
R : Red
W : White
G : Green
[DCOUT]
Connector: 2-178288-3
Contact: 1-175218-5 x 3
Recommended manufacturer: Tyco
Electronics
Wire material: UL1264 AWG16
(Red, White, Green)
[DCIN]
Connector: 2-178288-3
Contact: 1-175218-5 x 3
Recommended manufacturer: Tyco
Electronics
Wire material : UL1007 AWG22
[EMG]
Connector : 50-57-9403
Contact : 0016020103
Recommended manufacturer : MOLEX
Y
Y
DCOUT DCIN
24V 1
2
3
GND
FG
24V1
2
3
GND
FG
RR
WW
G
G
20mm
EMG
G123
Circuit display 1st pole
EMG
1
2
3
FG
+24V
EMGIN
