M800S/M80/E80 Series Connection and Setup Manual
5 Installation
199
IB-1501269-J

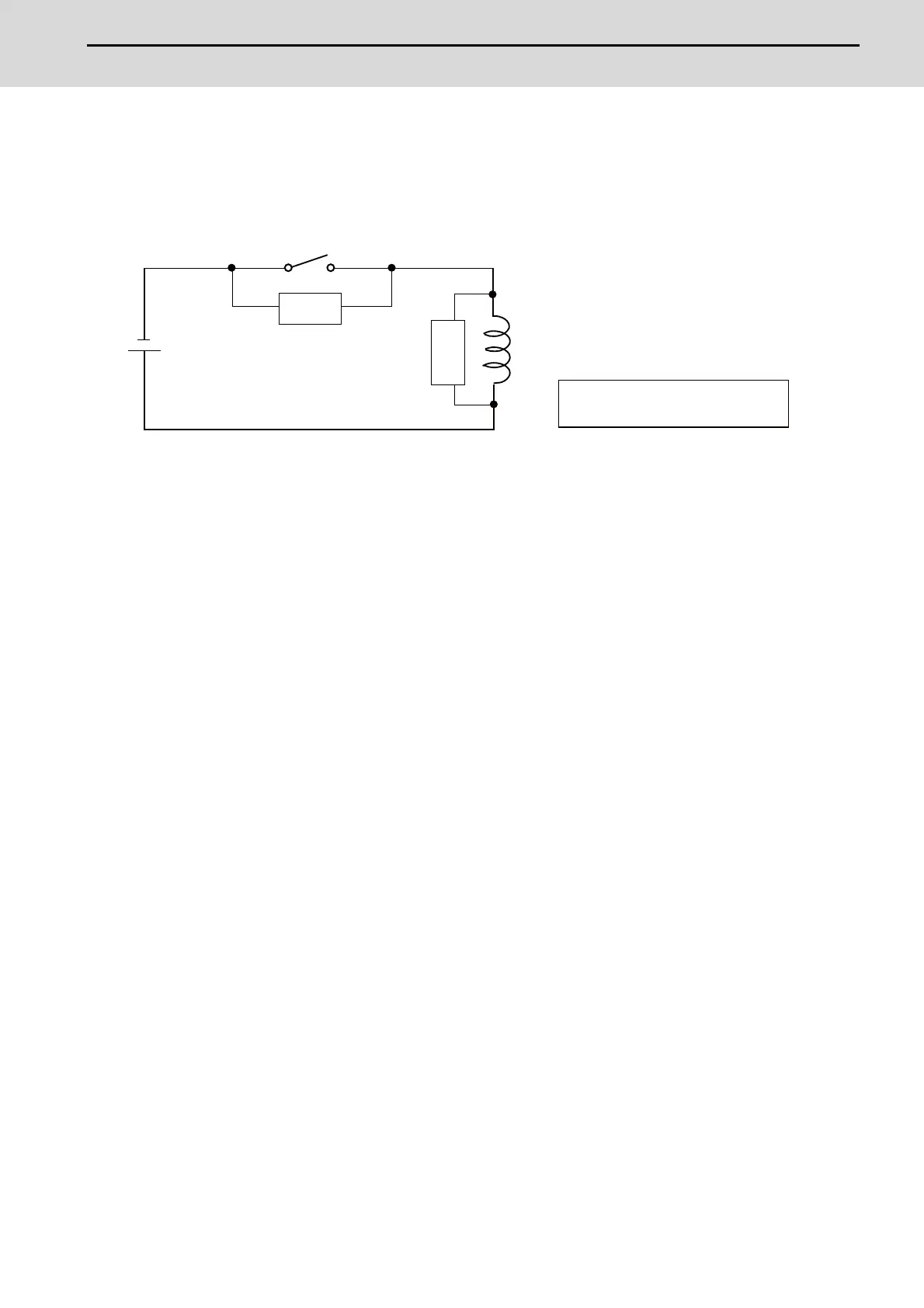

5.2.3 Connecting Spark Killers
The noise which is generated during the operation of the coil or contact needs to be eliminated.
Connect the spark killers (CR composite element) in the parallel with the coil and the contact for the countermeasure.
The Spark killer is effective in eliminating the noise generated by electromagnetic induction.
E
C : 0.033to0.1μF
R : 10to120Ω
Contact
Spark
killer
Coil
Spark killer
Spark killer
