M800S/M80/E80 Series Connection and Setup Manual
15 Cable
355
IB-1501269-J

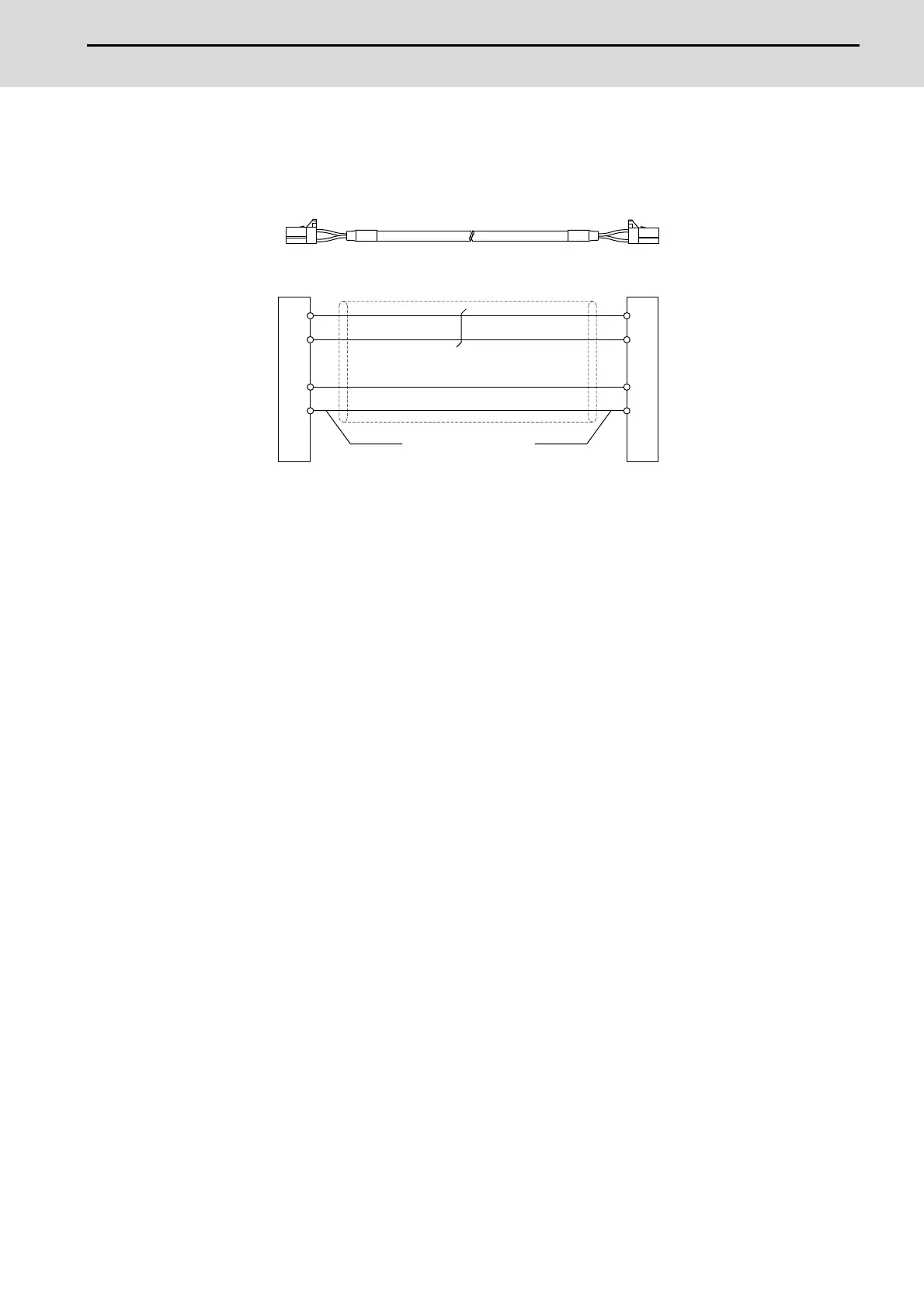

15.2.16 J210 Cable
Max. cable length: 50m
Application: Remote I/O 2.0 communication cable
(Note 1) Use the wire material of which impedance characteristics is 110Ω.
[RIO]
Connector : 1-1318119-3
Contact : 1318107-1
Recommended manufacturer :
Tyco Electronics
Wire material : HK-SB/20276XL Black LF 2P × 22AWG
Recommended manufacturer :
Taiyo Cabletec
RIO RIO
RIO RIO
TXRXD
TXRXD*
NC
0V
FG
NC
TXRXD
TXRXD*
NC
0V
FG
NC
1A
1B
2A
2B
3A
3B
1A
1B
2A
2B
3A
3B
AWG22
×2P
Drain wire
(With shield / drain wire)
Drain wire
