M800S/M80/E80 Series Connection and Setup Manual
17 Setting the Hardware
384
IB-1501269-J
17.2 Setting Drive Unit MDS-EM/EMH Series
17.2.1 Setting the Rotary Switch

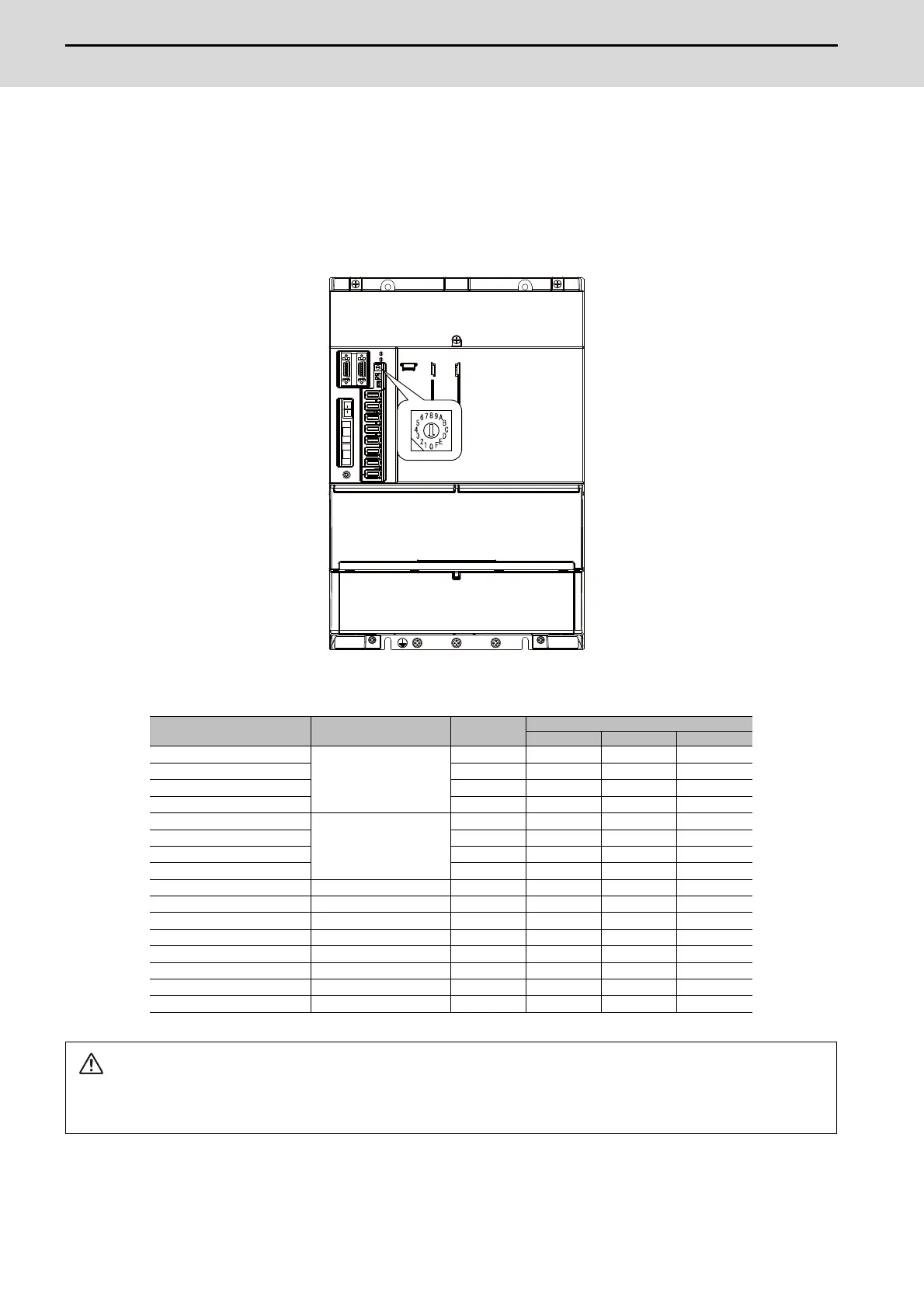

Set the axis number with the rotary switch.
< Drive unit >
MDS-EM/EMH-SPV3 setting
Rotary switch setting Axis configuration Spindle
Servo
L-axis M-axis S-axis
0
Spindle +
Servo 3 axes
1st axis 2nd axis 3rd axis 4th axis
1 5th axis 6th axis 7th axis 8th axis
2 9th axis 10th axis 11th axis 12th axis
3 13th axis 14th axis 15th axis 16th axis
4
Spindle +
Servo 2 axes
1st axis 2nd axis 3rd axis -
5 5th axis 6th axis 7th axis -
6 9th axis 10th axis 11th axis -
7 13th axis 14th axis 15th axis -
8 Setting impossible - - - -
9 Setting impossible - - - -
A Setting impossible - - - -
B Setting impossible - - - -
C Setting impossible - - - -
D Setting impossible - - - -
E Setting impossible - - - -
F Setting impossible - - - -
CAUTION
The axis configuration "Spindle + Servo 2 axes" is the state where the servo axis S is disabled.
Set the NC parameter (#1021) according to the axis numbers.
(MDS-EM/EMH-SPV3)
