M800S/M80/E80 Series Connection and Setup Manual
7 Connection of Control Unit
248
IB-1501269-J

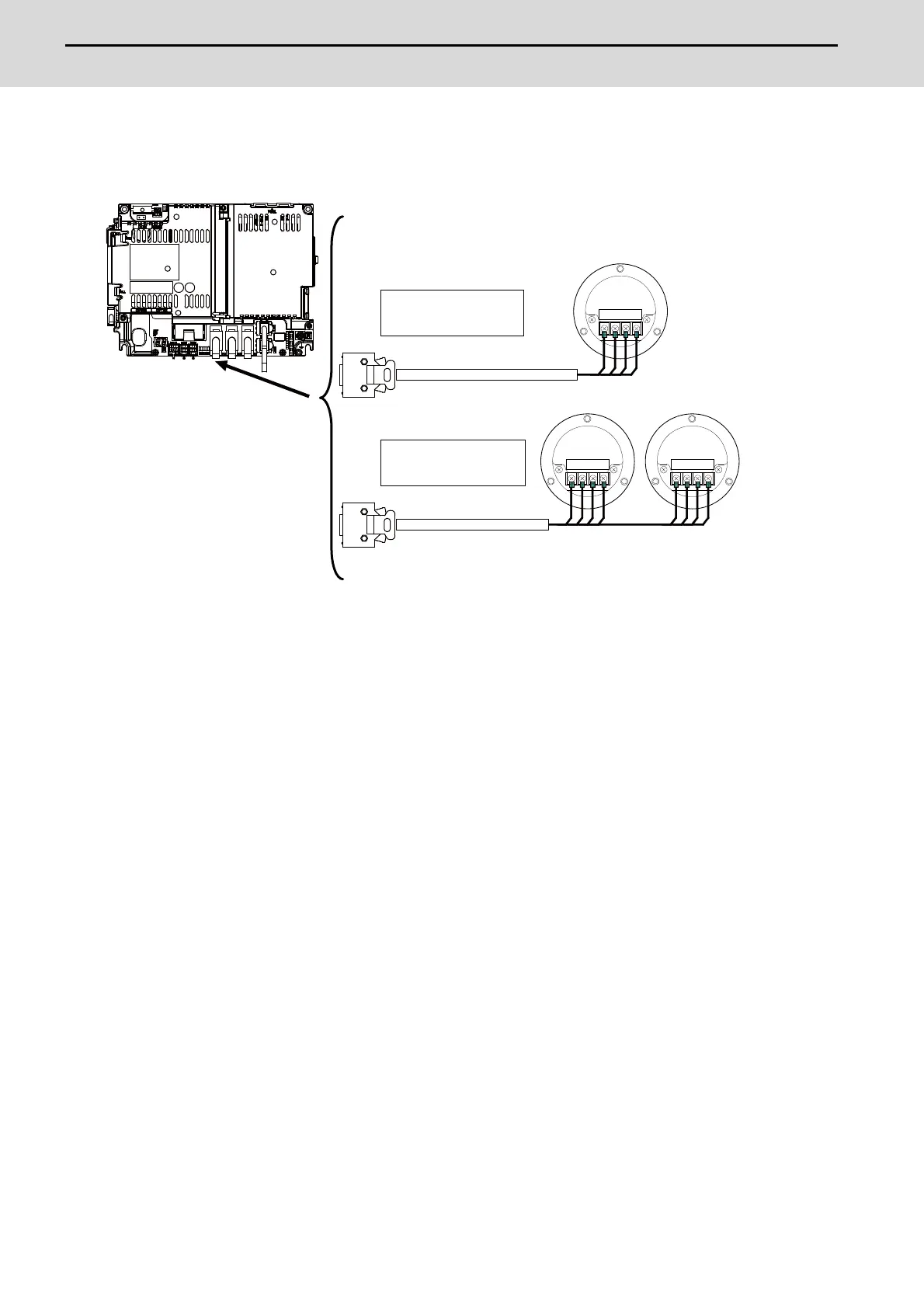

7.10 Connecting with Manual Pulse Generator
Connect the 5V power supply type manual pulse generator (2ch) to ENC connector of the control unit.
<Related items>
Cable drawing: "Cable: J026/J027 Cable"
Connector pin assignment: "General Specifications: Control Unit" (ENC connector)
When using the synchronous feed encoder and the manual pulse generator at the same time, the cables must be
prepared by the machine tool builder.
5V 0V A B
5V 0V A B5V 0V A B
ENC
NO.1
NO.1
NO.2
J026
J027
When connecting one 5V
manual pulse generator
When connecting two 5V
manual pulse generators
5V manual pulse generator
(Rear view)
(Rear view)
5V manual pulse generator
