Mitsubishi M80 series User Manual

M800S/M80/E80 Series Connection and Setup Manual
6 Precautions for Connecting
220
IB-1501269-J
6.1 Precautions for Wiring
6.1.1 Precautions when Connecting/Disconnecting Cables
If the cable is connected/disconnected without turning the power OFF, the normal unit or peripheral devices could be
damaged, and risks could be imposed.
Disconnect each cable with the following procedures.

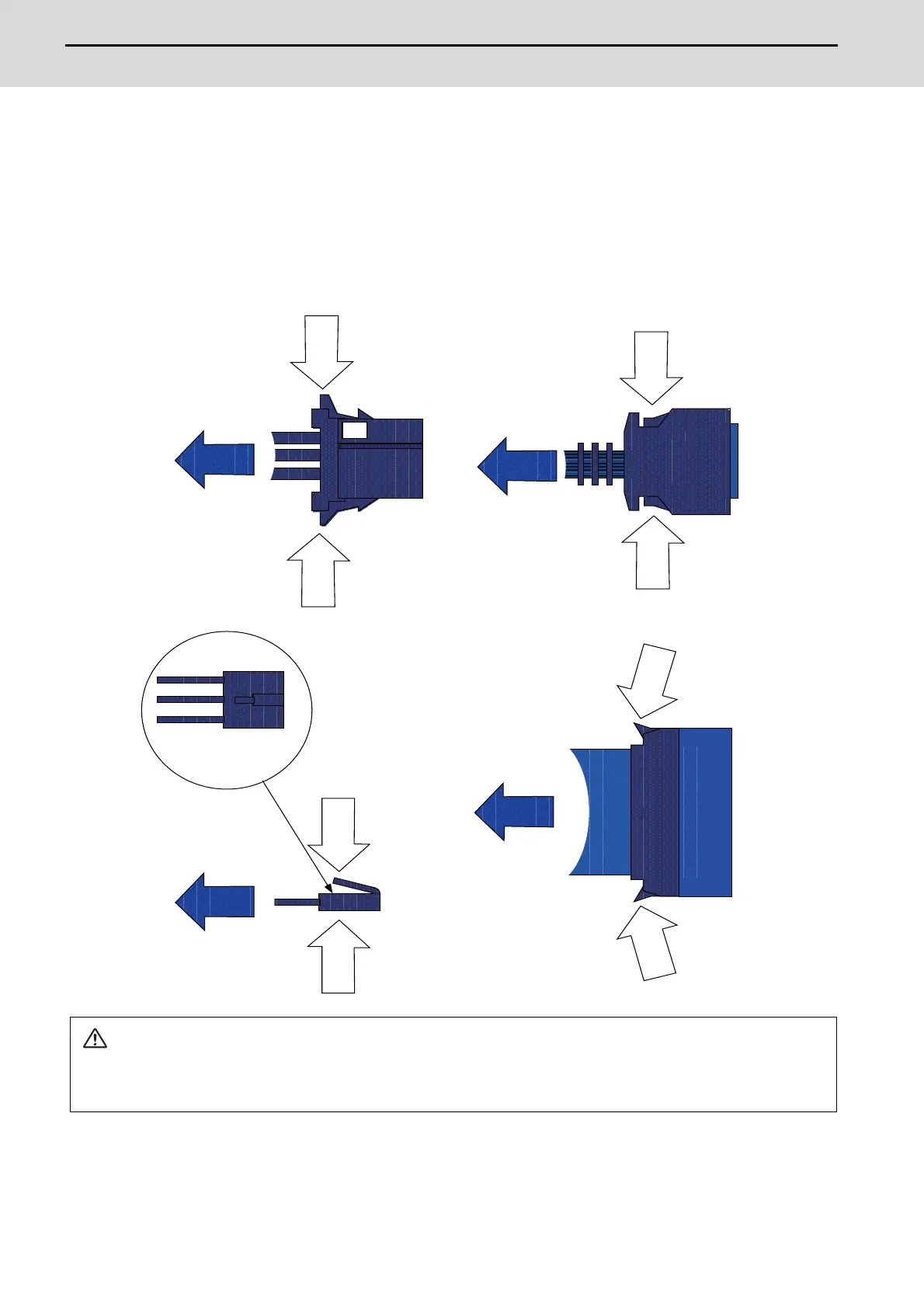

(a) For the following type of connector, press the tabs with a thumb and forefinger in the direction of the arrow, and pull
the connector off.
CAUTION
1. Do not connect or disconnect the cables between units while the power is ON.
2. Do not pull the cables when connecting/disconnecting it.
Y
(1)
(2)
Press
Pull
(2)
(1)
Pull
Press
(2)
(1)
View from above
Pull
Press
(1)
(2)
Press
Pull
