Mitsubishi M80 series User Manual

M800S/M80/E80 Series Connection and Setup Manual
6 Precautions for Connecting
221
IB-1501269-J

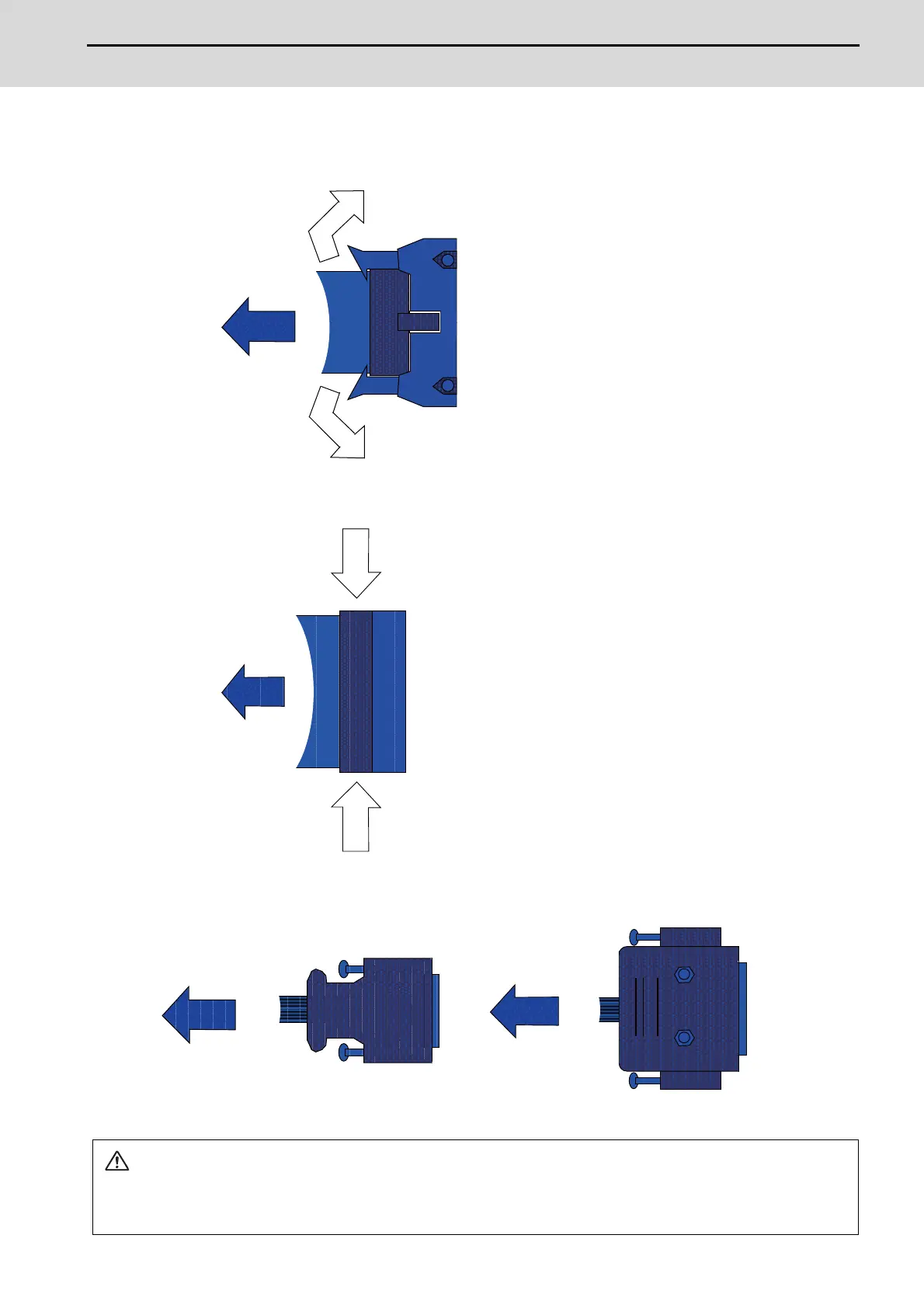

(b) For a flat cable type connector with latches, open the latches in the directions of the arrows, and pull the connector
off.
(c) For a flat cable type connector without latches, hold the connector with a thumb and forefinger, and pull the
connector off.
(d) For the screw fixed type connector, loosen the two fixing screws, and pull the connector off.
CAUTION
1. Do not connect or disconnect the cables between units while the power is ON.
2. Do not pull the cables when connecting/disconnecting it.
(1)
(2)
Open
Pull
(1)
(2)
Hold with thumb and forefinger.
Pull
(1)
(2)
Loosen
Pull
(1)
(2)
Loosen
Pull

Mitsubishi M80 series Specifications

General

Type	CNC Control Unit
Power Supply	24V DC
Interpolation	Linear, circular, helical
Fieldbus	CC-Link
Operating Temperature	0 to 45°C
Interface	USB, RS-232
Processor	RISC processor
Ethernet	Yes (100BASE-TX/10BASE-T)
