M800S/M80/E80 Series Connection and Setup Manual
10 Connection of Remote I/O Unit
287
IB-1501269-J
10.2 Connecting with Power Supply

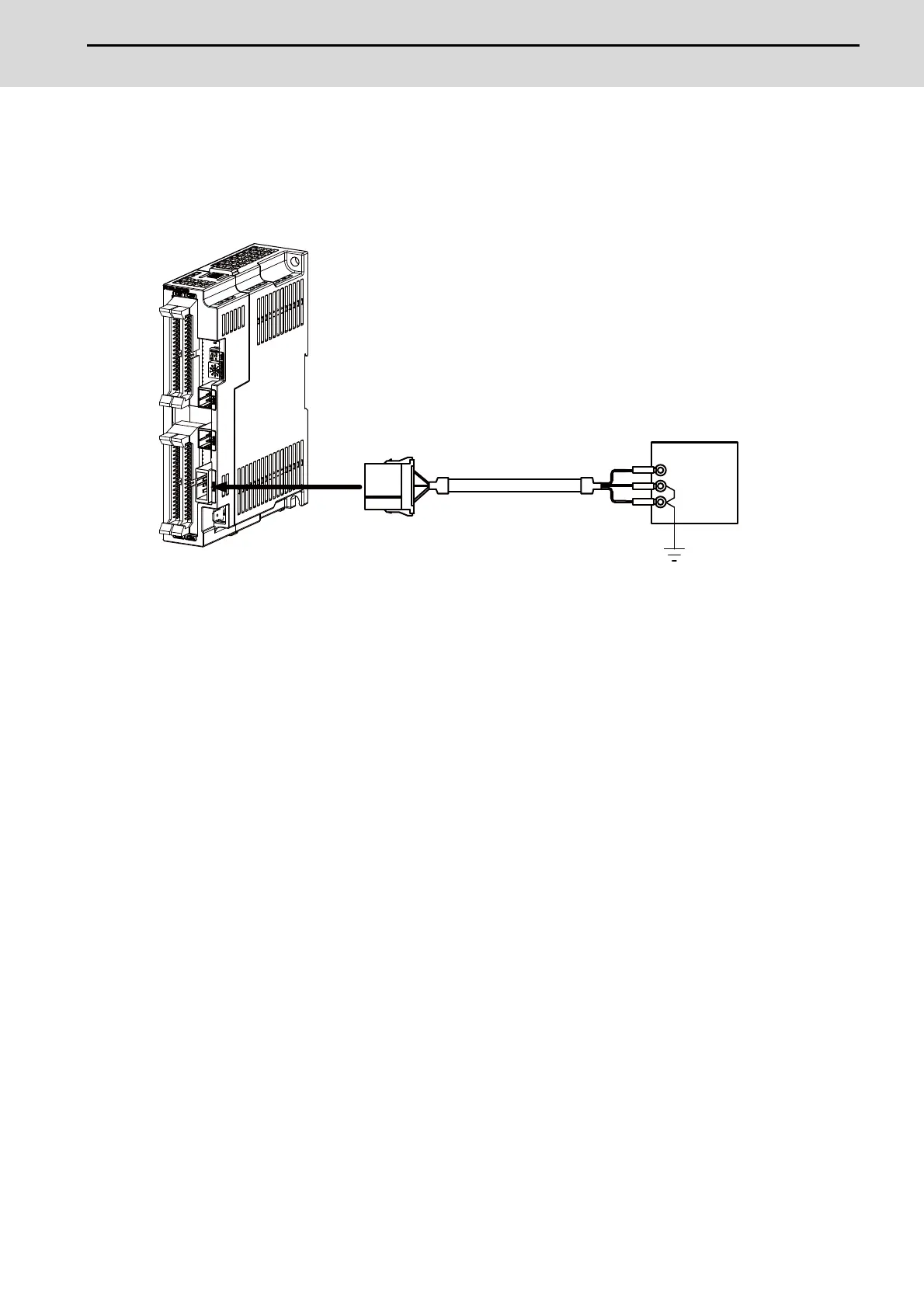

Connect 24VDC power supply (general-purpose stabilized power supply) to the remote I/O unit.
[FCU8-DX220 / FCU8-DX230 / FCU8-DX231 / FCU8-DX202 / FCU8-DX213 / FCU8-DX213-1 /
FCU8-DX654 / FCU8-DX654-1 / FCU8-DX408 / FCU8-DX409]
<Related items>
Cable drawing "Cable : J070/J071 Cable"
Connector pin assignment: "General Specifications: Remote I/O Unit" (DCIN connector)
0V
FG
24V
0V
FG
DCIN
J070/071
24VDC(+)
Stabilized
power supply
To Next Page
