M800S/M80/E80 Series Connection and Setup Manual
21 Confirming the Basic Operation
452
IB-1501269-J
21.3 Servo Simplified Adjustment
21.3.1 First Measure Against Vibration
Setting the filter can reduce the vibration.

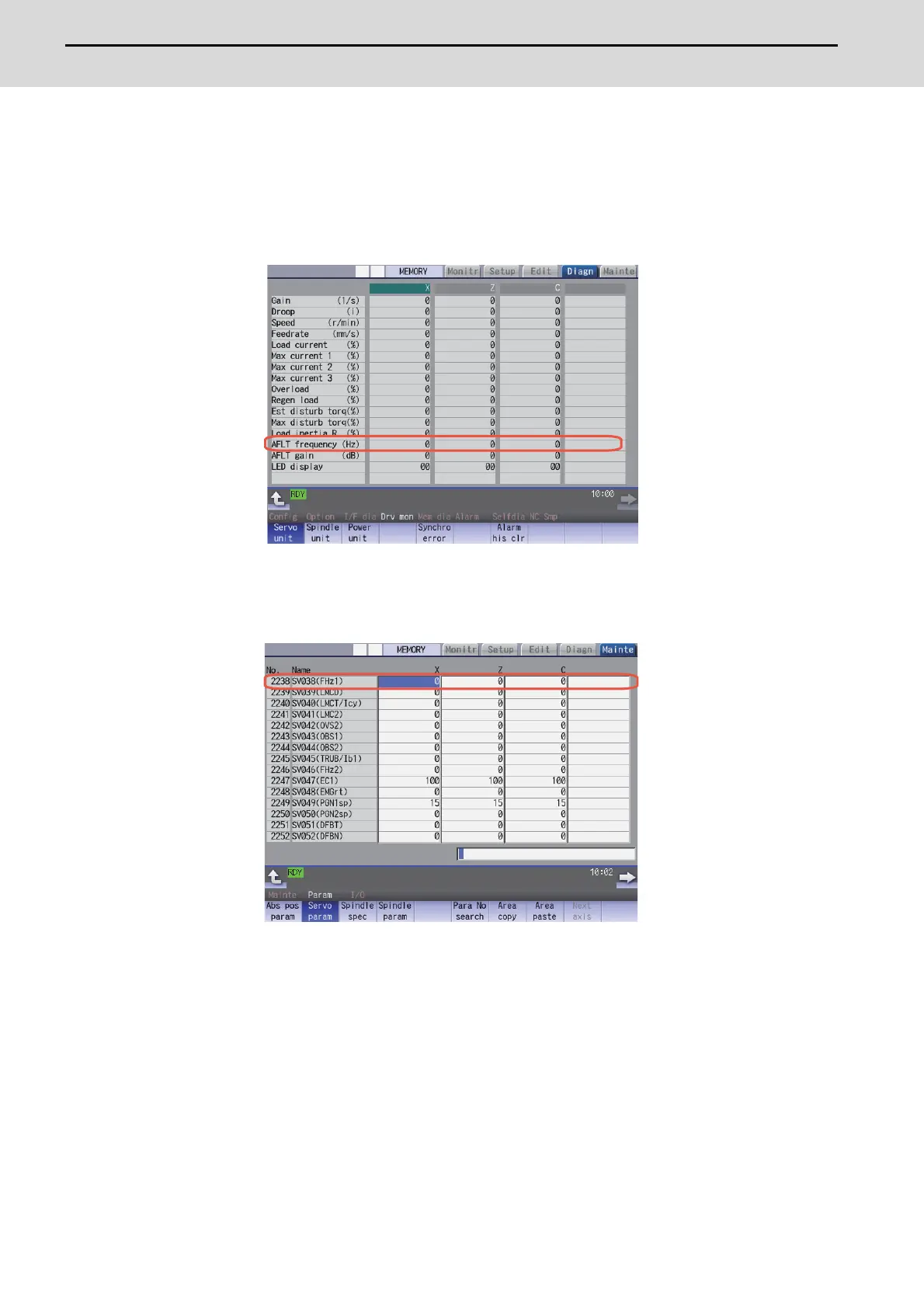

(1) Select [Drv mon] and then [Servo unit] on the Diagn screen. See the displayed value in "AFLT frequency".
(Note) The screen above is when NC parameters have default values.
(2) Select [Param] and then [Servo param] on the Mainte screen. Set the AFLT frequency value you saw at (1) to
"#2238 SV038 FHz1 (Notch filter frequency 1)".
(Note) The screen above is when NC parameters have default values.
If the vibration is not reduced by the measure, refer to the manuals of the drive unit you are using.
