M800S/M80/E80 Series Connection and Setup Manual
15 Cable
354
IB-1501269-J

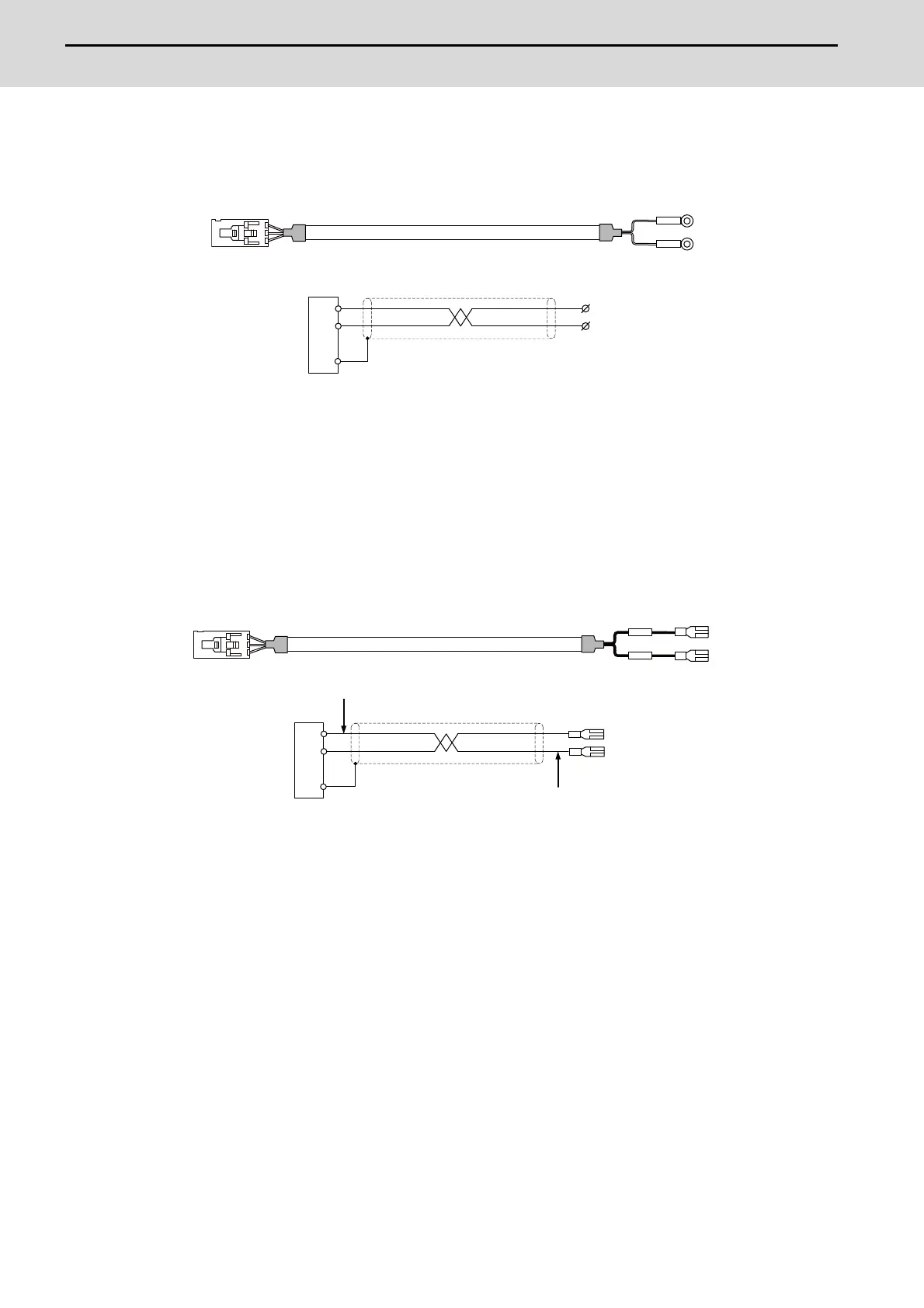

15.2.14 J120 Cable
Max. cable length: 30m
Application: Emergency stop cable
15.2.15 J121 Cable
Max. cable length: 30m
Application: Emergency stop cable for MITSUBISHI CNC machine operation panel
[EMG]
Connector : 50-57-9403
(former model number: 51030-0330)
Contact : 0016020103
(former model number: 50084-8160)
Recommended manufacturer : MOLEX
Wire material :
2464C BIOS-CL3-22 01P
Recommended manufacturer :
BANDO DENSEN
Crimp terminal : V1.25-3 × 2
Recommended manufacturer : JST
[EMG]
Connector : 50-57-9403
Contact : 0016020103
Recommended manufacturer : MOLEX
Wire material :
2464C BIOS-CL3-22 01P
Recommended manufacturer :
BANDO DENSEN
Crimp terminal : Faston terminal #110 with
insulating coating
EMG
EMG
24V
EMG
COM
EMG IN
FG
24V
EMG
1
2
3
R1.25-3
EMG
24V
EMG
EMG
COM
EMG IN
FG
24V
EMG
1
2
3
Faston terminal#110
Red
White
