M800S/M80/E80 Series Connection and Setup Manual
20 Sequence Program Writing
433
IB-1501269-J
20.5.3 Setting the Number of Common Pointer Points
The number of common pointer points for each sequence program must be set for creating the sequence program with
the multi-program method. This operation is required every time when a new project is created, and the parameter file
must be written to the CNC controller.
(Note) When common pointer No. is not set, "P1800" is set.
(1) Select the tab "PLC system".

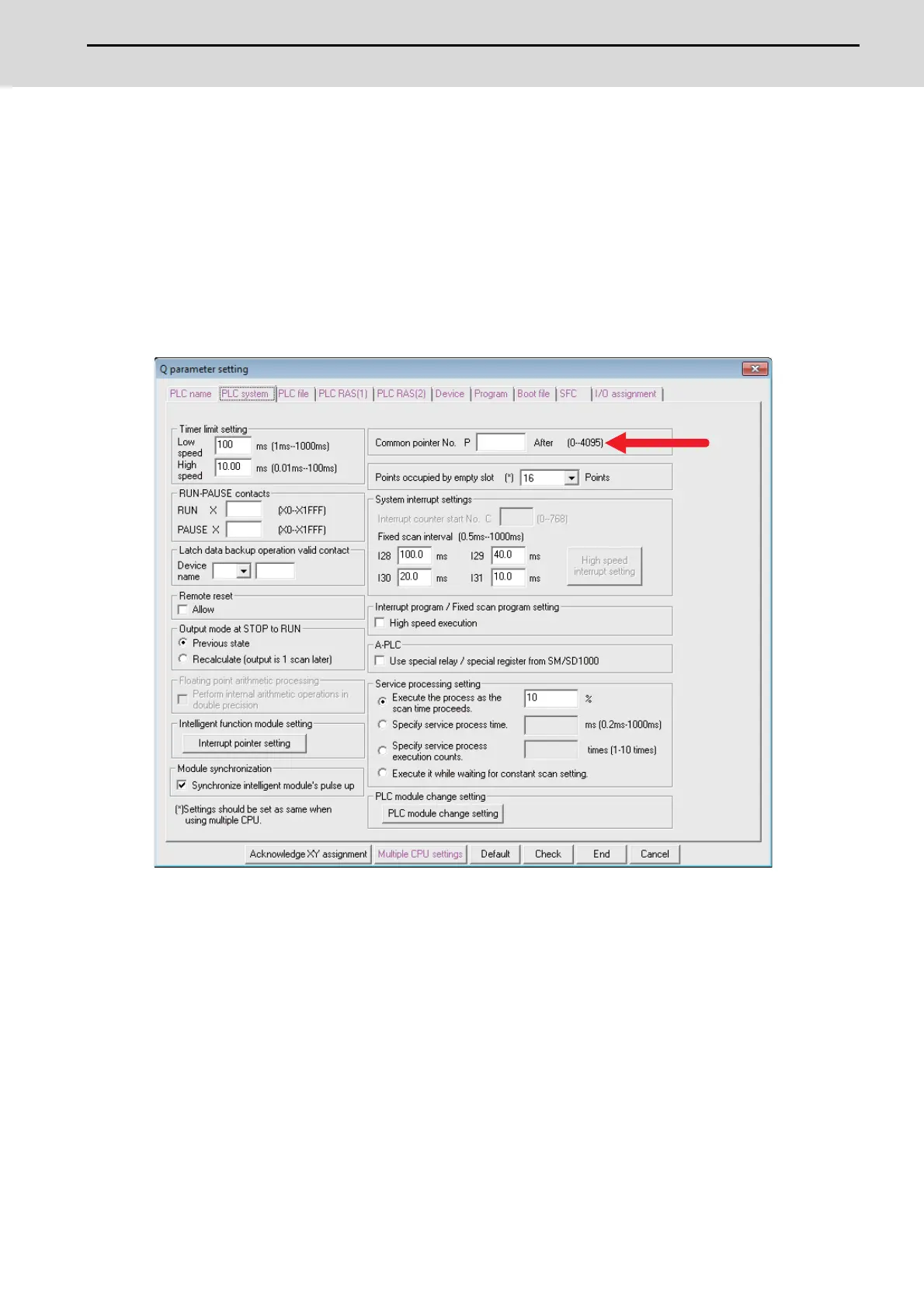

(2) Input the value for "Common pointer No." on the screen below and click [End].
