V5A51 -
Transmission
23E-5-21

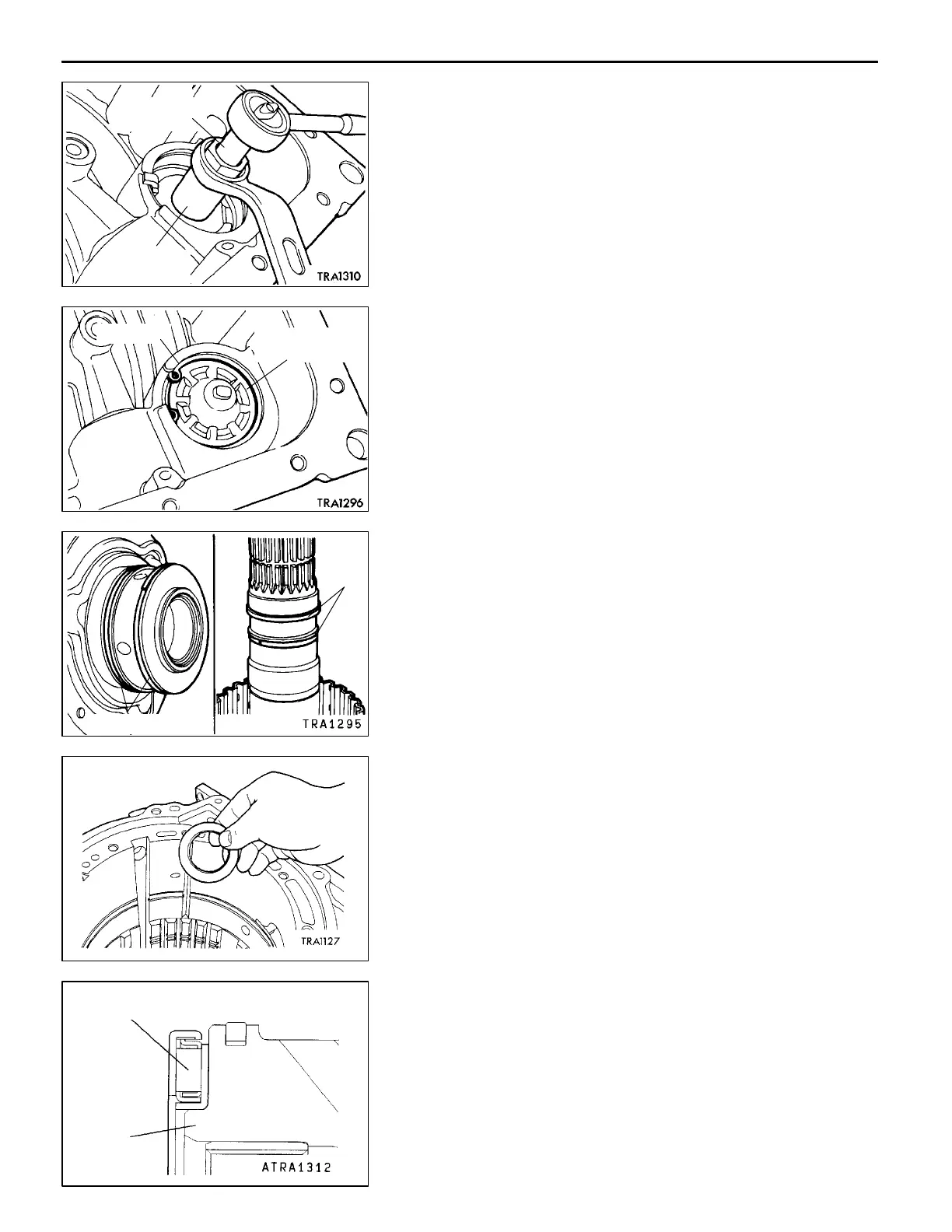

(4) Tighten the reduction brake piston nut to the specified
torque of 19 ± 3 Nm using the special tool (Wrench)
while fixing the special tool (Socket) so as not to
rotate.
13. Install a new O-ring on the reduction brake piston cover,
and then install the cover and the snap ring on the
transmission case.
14. Install new seal rings (two large pieces) onto the front
end of the direct planetary carrier, and new seal rings
(two small pieces) onto the shaft of the direct planetary
carrier.
15. Insert the direct planetary carrier into the output shaft
support.
16. Apply Vaseline or petrolatum jelly on the thrust bearing
No.12, and then install on the front end of the direct
planetary carrier.
Caution
D
Take care not to mistake the thrust bearing No.12
mounting direction.
AddedPWEE8920-I
E
Mar. 2000Mitsubishi Motors Corporation
MB991633
(Wrench)
MB991633
(Socket)
Snap ring
Reduction brake
piston cover
Seal
rings
(small)
Seal rings (large)
Thrust bearing No.12
Direct
planetary
carrier
To Next Page
