V5A51 -
Transmission
23E-5-23

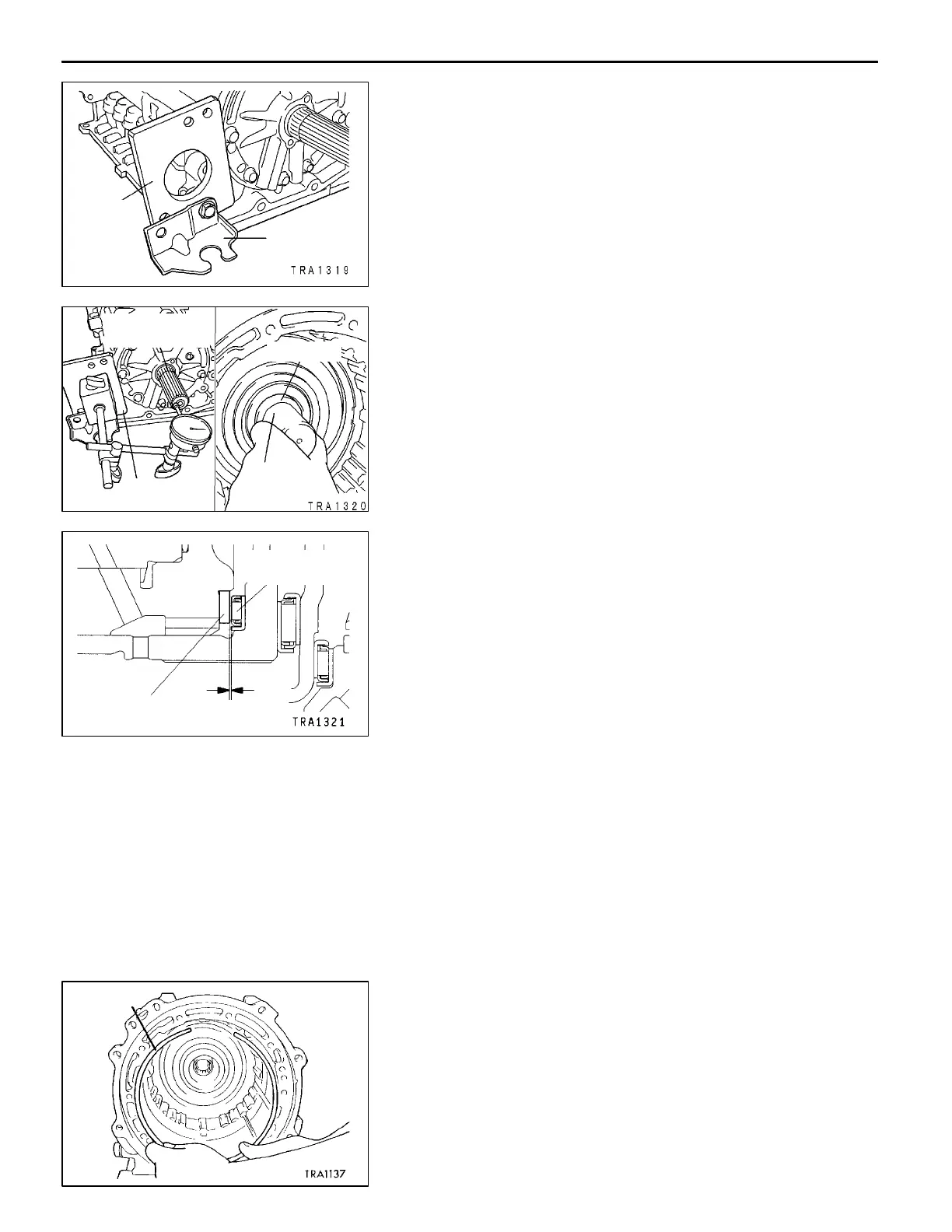

21. Using the transfer case adapter bolt, install special tool
MB991603.
Caution
D
Install the cable end bracket together with the
special tool.
22. Select the thrust race No.8 with th e following procedure:
(1) Fix a dial gauge to the special tool.
(2) Push the direct planetary carrier and direct annulus
gear in alternately, a nd measure the end play of the
direct planetary carrier.
NOTE
(1) When pushing in the direct planetary carrier, make
sure that the center support does not move.
(2) When pushing in the direct annulus gear, use
the special tool.
(3) Replace the thrust race No.8 installed in step 19 with
a suitable one which can bring the end play of the
direct planetary carrier to the standard value. Then,
reassemble.
NOTE
Refer to the thickness recorded in step 19.
Standard value: 0.25 - 0.55 mm
(4) Measure the end play again, and confirm that it is
within the standard value.
NOTE
Carry this step out with the special tool and dial gauge
installed.
23. Using the following steps, select a suitable snap ring
for fixing th e center support.
(1) Install the snap ring which has been used for fixing
the center support.
AddedPWEE8920-I
E
Mar. 2000Mitsubishi Motors Corporation
MB991603
Cable end
bracket
Direct planetary
carrier
MB991603
MD998304
Direct
annulus
gear
Thrust
bearing No.9
Thrust race
No.8
End play
Snap ring
