V5A51 -
Transmission
23E-5-24

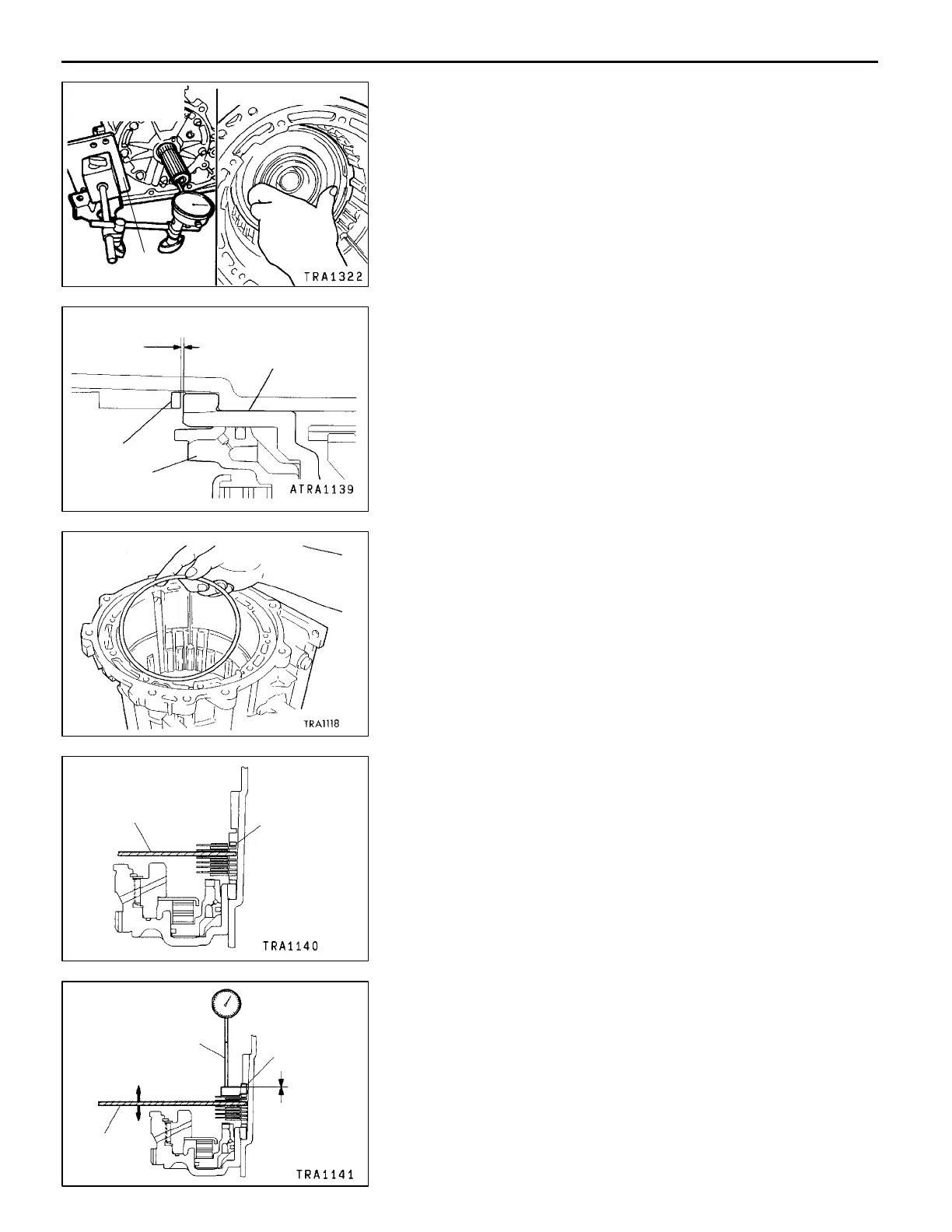

(2) Alternately push in the direct planetary carrier a nd
center support, and measure t h e end play of the
center support.
NOTE
Be sure to push the direct planetary carrier in fully
until the center support contacts the snap ring.
(3) Replace the snap ring for fixing the center support
installed in step 23 (1) with a suitable one so that
the en d play of the center support is at the standard
value. Then, reassemble.
Standard value: 0 - 0.16 mm
(4) Measure the end play again, and confirm that it is
within the standard value.
24. Using the following steps, select a snap ring for adjusting
the brake reaction plate end play an d second brake end
play, and a pressure plate for adjusting the low/reverse
brake end play.
(1) Install the wave spring onto the low/reverse brake
piston.
(2) Install the special tool in t he position shown in the
illustration instead of the pressure plate for the
low/reverse brake. Install the brake discs, brake plates
and snap ring.
(3) Install the reaction plate an d snap ring that was used.
Caution
D
Take care to the assembly direction of the
reaction plate.
(4) Install a dial gauge onto special tool (MD998913)
so that the tool end contacts the brake reaction plate.
Measure the end play by moving special tool
(MB991632).
(5) Replace the snap ring installed in step 24 (3) with
a suitable one so that the en d play may fall within
the standard value. Then, reassemble.
Standard value: 0 - 0.16 mm
(6) Measure the end play again, and confirm that it is
within the standard value.
AddedPWEE8920-I
E
Mar. 2000Mitsubishi Motors Corporation
MB991603
Center support
Direct planetary
carrier
Standard value
Center support
Snap ring
Low/reverse
brake piston
MB991632
Snap ring
MD998913
MB991632
End play
Snap ring
