23E-5-25

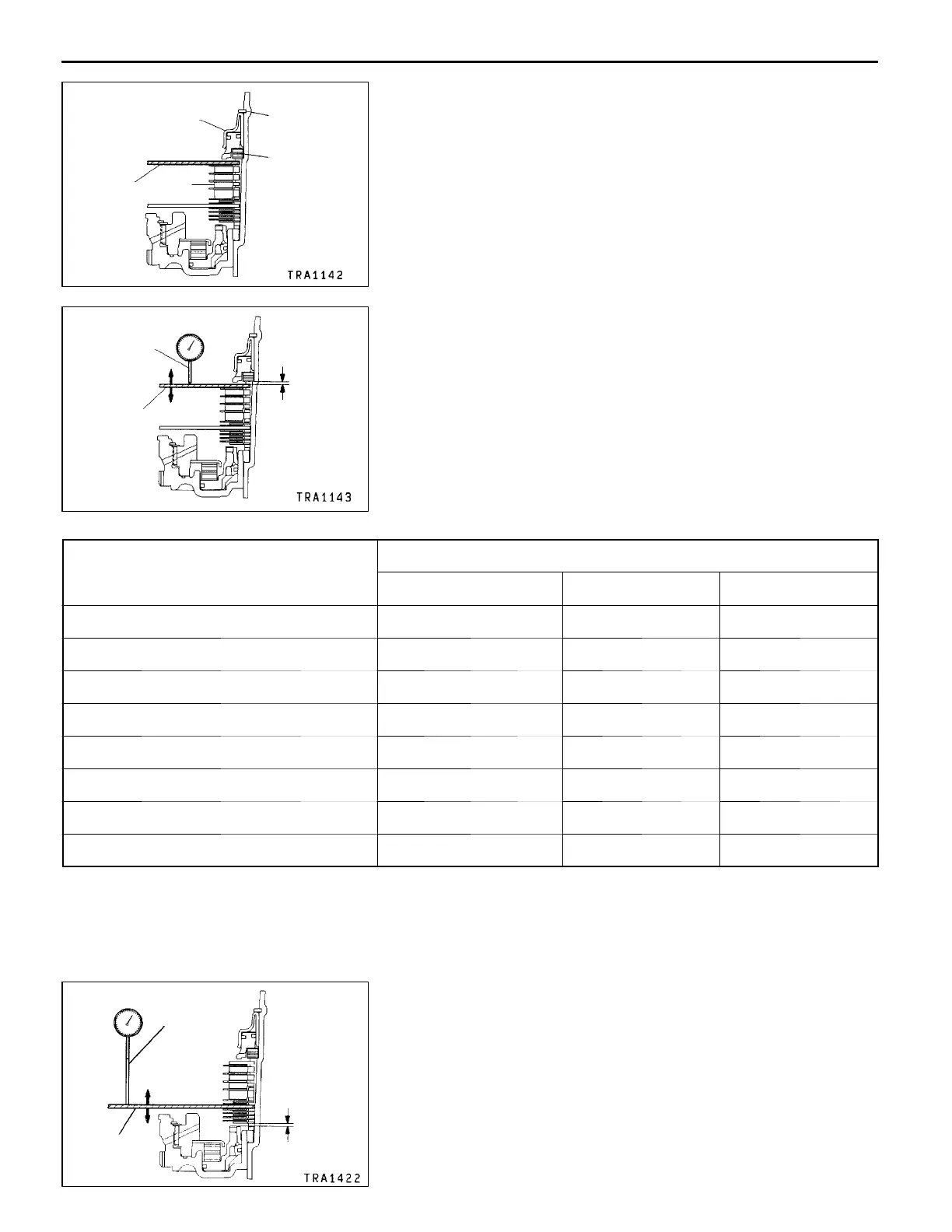

(7) Next, install the special tool instead of the pressure
plate for the second brake. Install the four brake discs
and three brake plates.
Caution
D
Take care to the shape and assembly direction
of the brake plates installed at section “A”
shown in the illustration.
(8) Install the return spring, second brake and snap ring.
(9) Install a dial gauge onto special tool (MD998913)
so that the end contacts the special tool (MB991632).
Move special tool (MB991632) and measure the
moving amount.
Select a pressure plate with a thickness that
corresponds to the measured moving amount from
the following table.
End play standard value (reference):
1.49 - 1.95 mm
Moving amount mm Pressure plate
Thickness mm ID Symbol Part No.
1.2 or more - less than 1.4 1.6 F MR336390
1.4 or more - less than 1.6 1.8 E MR336391
1.6 or more - less than 1.8 2.0 D MR336392
1.8 or more - less than 2.0 2.2 C MR336393
2.0 or more - less than 2.2 2.4 B MR336394
2.2 or more - less than 2.4 2.6 A MR336395
2.4 or more - less than 2.6 2.8 0 MR336396
2.6 or more - less than 2.8 3.0 1 MR336397
(10)Remove the snap ring, second brake, return spring
and special tool installed in step (8).
(11)Install the pressure plate selected in step (9), and
install the return spring, second brake and snap ring
again.
(12)Install a dial gauge onto special tool (MD998913)
so that the end contacts the special tool (MB991632).
Move special tool (MB991632) and measure the
moving amount.
Select a pressure plate with a thickness that
corresponds to the measured moving amount from
the following table.
End play standard value (reference):
1.65 - 2.11 mm
AddedPWEE8920-I
E
Mar. 2000Mitsubishi Motors Corporation
Second brake
MB991632
Return
spring
Snap ring
A
MB991632
MD998913
Moving
amount
MD998913
MB991632
A
