V5A51 -
Transmission
23E-5-33

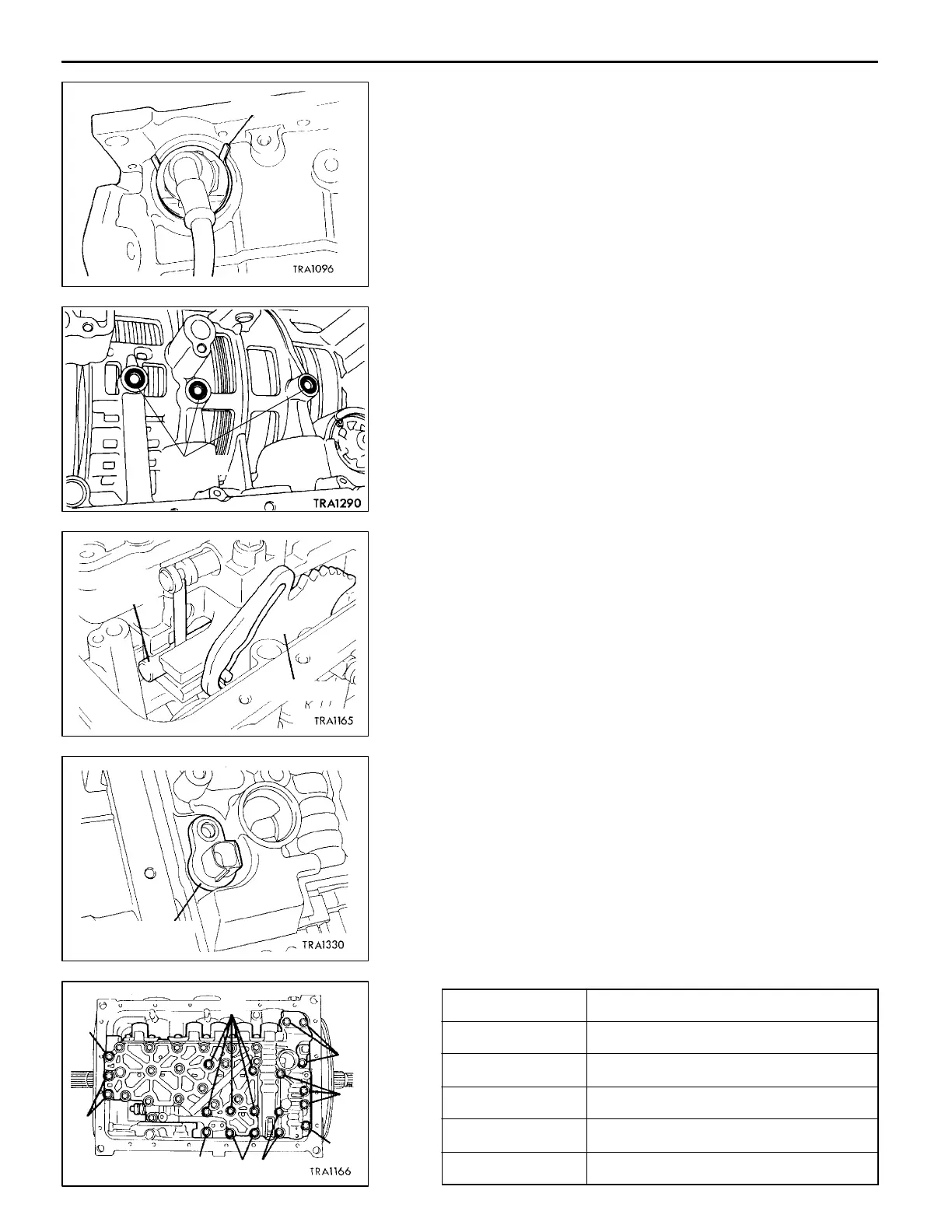

55. Install the solenoid valve harness, and then secure the
snap ring to connector groove.
NOTE
Install the harness so that it is oriented as shown in the
illustration.
56. Install new three O-rings onto the transmission case at
the positions shown in the illustration.
57. Install the valve body while inserting the manual valve
pin into the detent lever groove.
58. Install the oil temperature sensor.
59. Tighten the twenty valve body mounting bolts to the
specified torque.
Bolt Length mm
A 25
B 30
C 40
D 45
E 55
AddedPWEE8920-I
E
Mar. 2000Mitsubishi Motors Corporation
Snap ring
O-ring
Manual
valve pin
Detent lever
Oil temperature
sensor
D
E
D
A
DC
D
C
B
To Next Page
