4.10 Configurations - Type N
Configurations menu is for programing the input and output pins of LC100 boards.

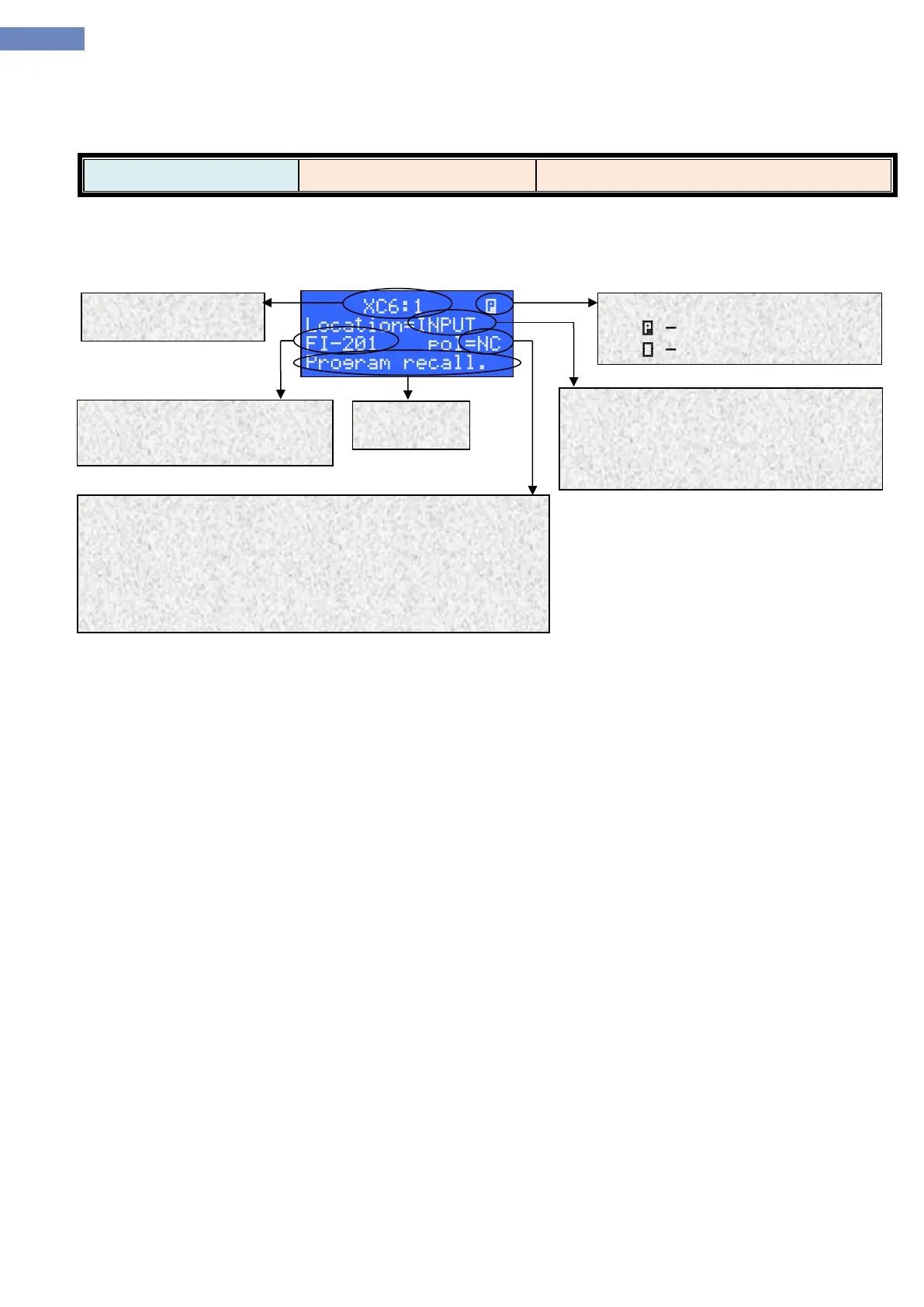

Example of configuring pin XC6:1 to have a function „program recall“:
Main rule for parameters:
If some parameters are not set then the function of that parameter is swithed of (Example: If the limit switches for
the door are not set then doors are opene,d as defined by the parameter D-13 and closing is done until safety circuit is
closed).
Polarity of the function can be set only with input and output function while polarity of the calls is preset to NO and
can't be changed.
Polarity of the function.
For input function polarity is:
NC – normaly closed contact
NO – normaly open contact
For output function polarity is::
NOR – normal (on when the function is active)
INV – inverted (of when the function is active)
ID number of the function.
Input function are displayed as FI,
output FO and calls as CALL
Location= setting the type of function:
INPUT – input function FI-xxx
OUTPUT – output function FO-xxx
CALL A – call function A side
CALL B – call function B side
Pin to which the
parameter is set.
Status of the input/output:
Active status
Not active status
neaktivno stanje
