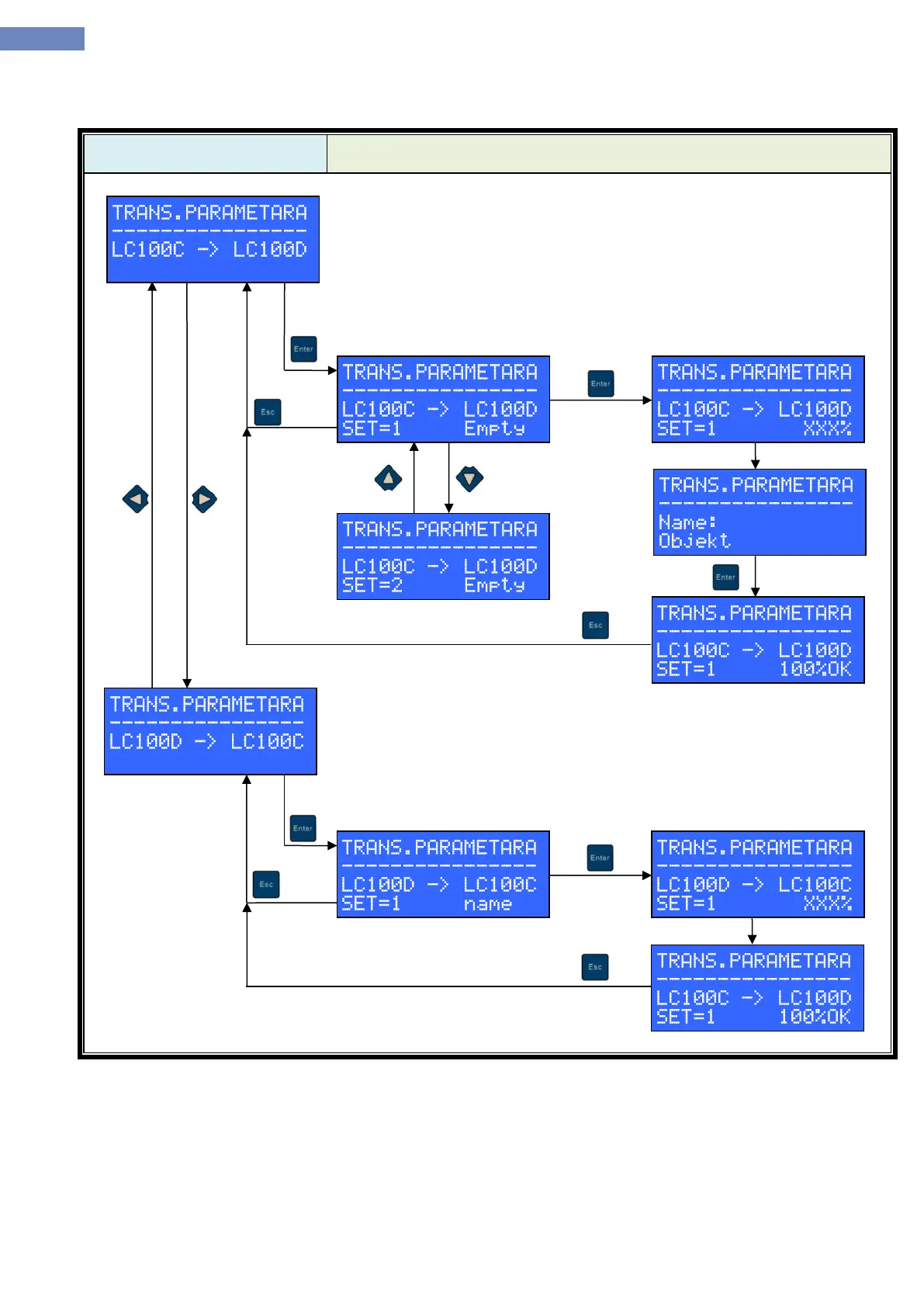

In transfer menu it is possible to transfer parameters from LC100-C board
to the internal memory of LC100-D keypad.
When enter the transfer menu chose direction for transfer parameters,
after confirm there are 4 memory locations available , after choosing memory
location confirm with enter button.
After transfer there is posibility to give a name to parameter set.
