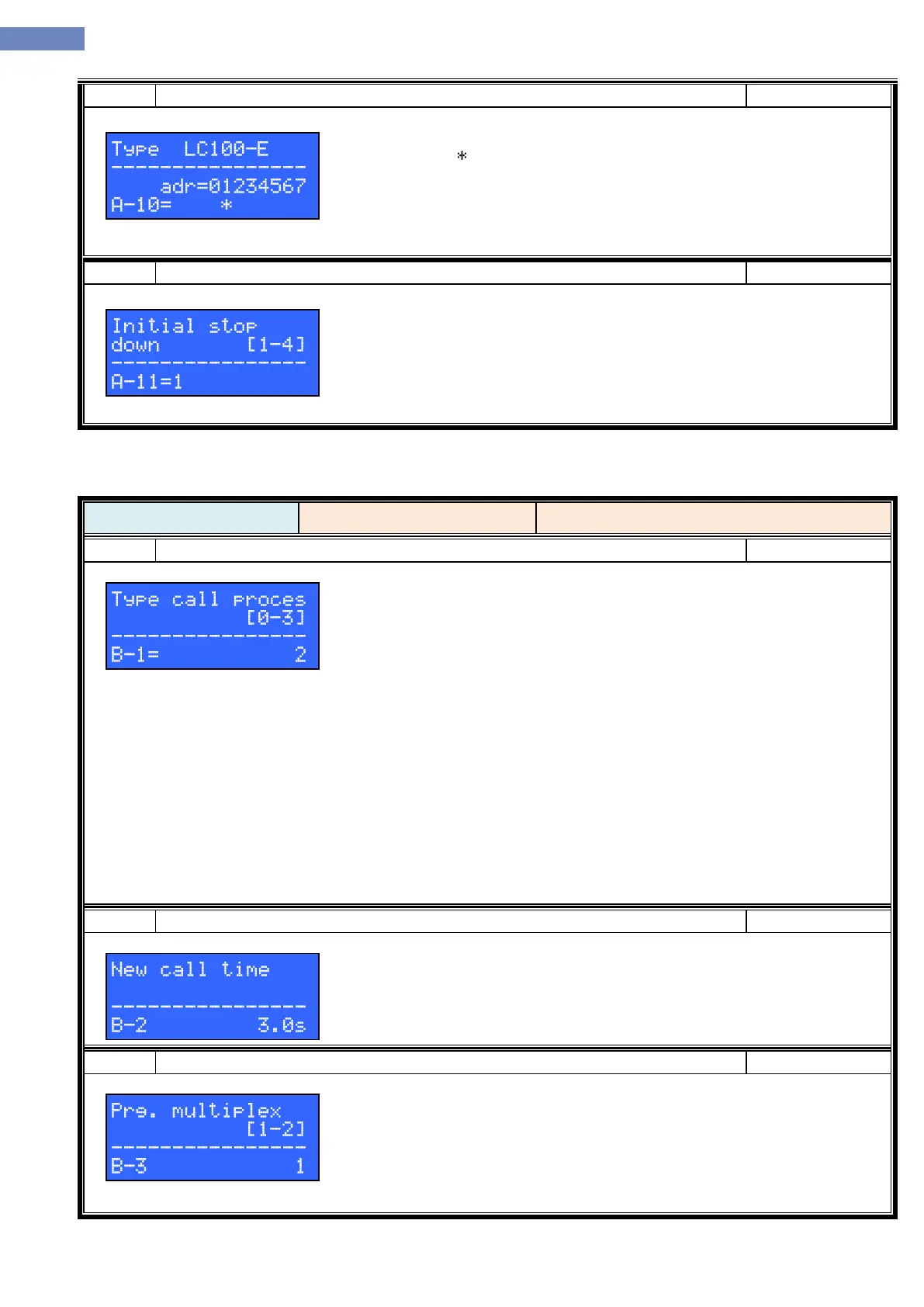

Parameter to include LC100-E4 board into the system. Including is done by
placeing the sign „ “under the „board“ character. (list below)
0 – LC100-E4 (address 0)
1 – LC100-E4 (address 1)
2 – LC100-E4 (address 2)
3 – LC100-E4 (address 3)
A-11
Initial stop down
1-4
When in multiplex have asymmetric stations. With this parameter you chose
beginign initial stop (when elevator come to reference switch). Landing call and
cabin call are automaticlly masked for work in multiplex.
4.2 Call processing – Type B
4/6 Parameters
2/12 Call processing
Type B
B-1
Call proces type
0-3
Type of landing calls processing
0 – One call reserved.
Elevator process landing call only if it is in standstill (there are no active
calls, safety circuit is correct and “lift occupated“ time has ended B-02.)
1 – One way collective to main floor.
If the elevator has landing call and the car is driving elevator will stop for
this call only if the landing call is in same direction as car travelling, and there
is no „80% car load“ input active. Also the car will not stop if the elevator had
passed slow down zone for the floor in wich the call is given. Else the elevator
will finish the drive, and than process the landing call. Landing call in the main
floor which is defined with parameter B-06 includes both directions.
2 – Full collective with two button.
Collective system with two buttons with functions landing call up, and
landing call down. Stopping condition is the same as for „one way collective“
system.
3 – Full collective with one button.
Same as full collective with two buttons, but the function for landing call up
and down is given through one input.
B-2
Priority time for car call
0-25s
Time for „car in use“ function when using „one call reserved“ type of call procesing
(Parameter B-01=0). During this time elevator does not accept new calls and the
output function „car in use“ FO-069 is active.
Time is mesured from the end of the previous drive.
B-3
Multiplex program
1-2
Chossing the type of call procesing in duplex elevators.
1 – Standard call procesing
2 – Program for direct calling of the „A“ elevator.
- If the landing call button is pressed longer than 3s elevator „A“ will
process this call.
