2.23 LC100-J input/output board
LC100-I board is used as aditional input/output board. It is equipped with 8 in/out ant two CAN connectors.
There are also microswitches for addressing or defining functions acordint to the instaled software.

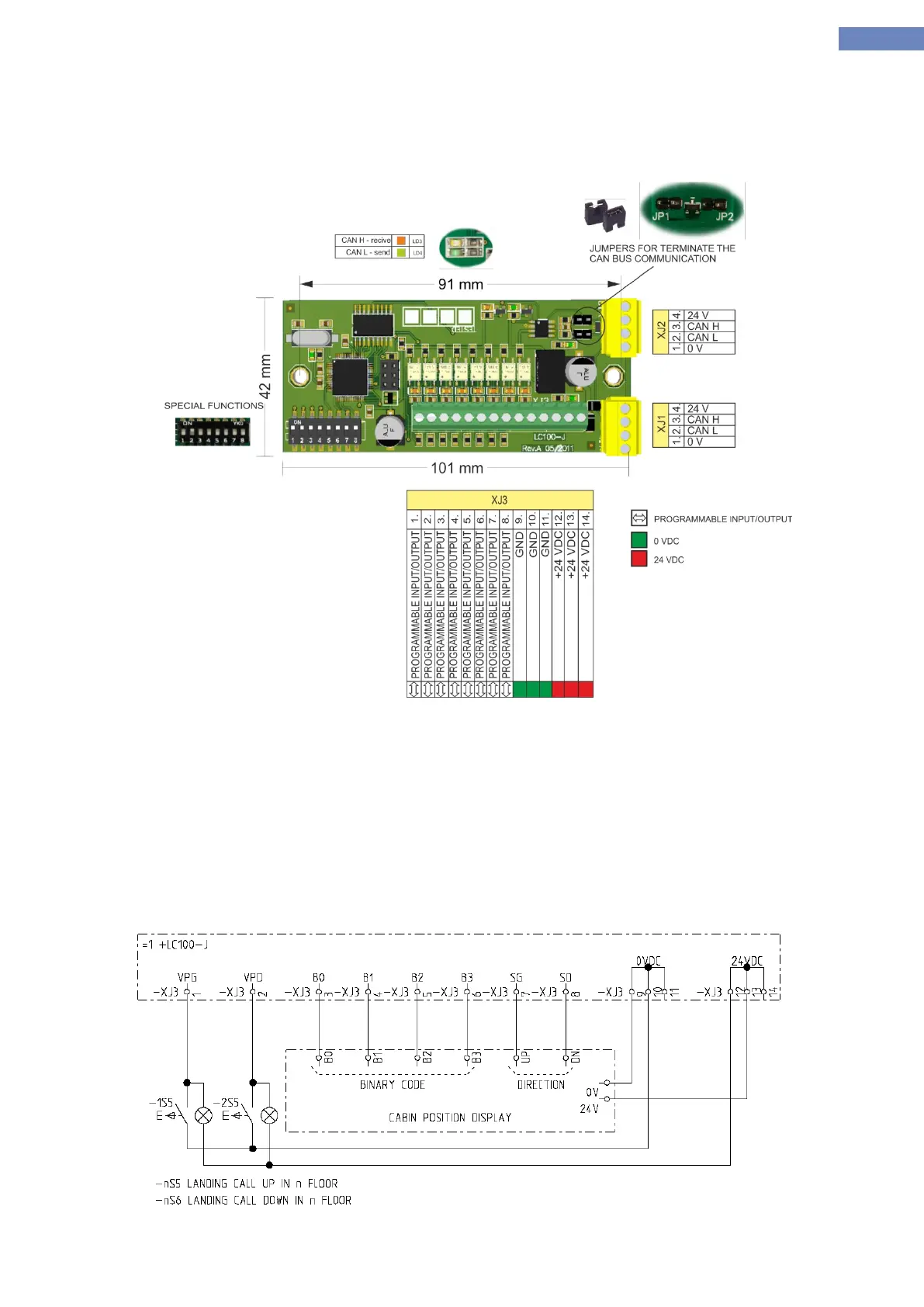

Picture 26 - LC100-J board
Aplications examples using LC100-J board:
1. Floor units SIMPLEX elevator with binary coded landing display.
Floor units are coded acording to the addressing table.
LC100-J boards are connected to CAN2 bus, there is no need for parameterization because inputs and
outputs are set as shown on the connection diagram.
Connection diagram:
